48

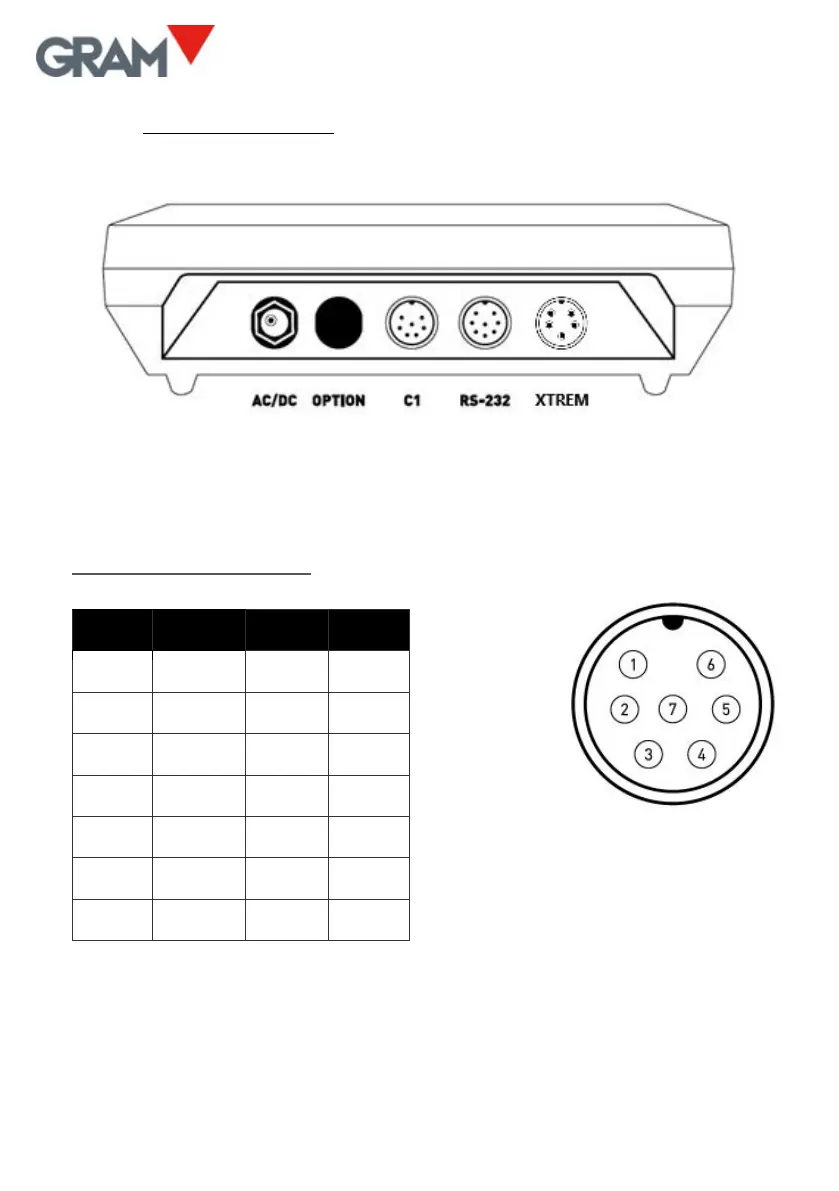

22.
CONNECTIONS
C1 connector, load cell
PIN No.
SIGNAL
TYPE A
TYPE B
PIN 1
SIG
-
Blue
White
PIN 2
SIG +
Brown
Green
PIN 3
MESH
Mesh
Mesh
PIN 4
EXC
-
Black
Black
PIN 5
SENSE
-
-
Blue
PIN 6
EXC +
Red
Red
PIN 7
SENSE +
-
Yellow
4 MULTI
-
PIN MOBILE MALE
(P700) 7 PINES
47
49
Table of Contents
Table of Contents
3
Keypad and Lcd Display
5
Before Using the Scale
8
On / off
10
Initial Reset to Zero
10
Operation
11
Use of the Scale
11
Tare and Tare Record in Memory
12
Zeroing
14
Lcd Display Test
14
High-Resolution Mode
15
Hold Mode
15
H-L Mode (Control of Upper/Lower Limits)
16
Dosage Mode
17
Piece Counter Mode
18
Plu - Selection of Product Code
20
Printing a Weighing Ticket
21
Configuration Options Menu
23
Auto-Off Option
26
Backlighting the Display
26
Sound When Pressing a Key
27
Tare Options
27
Hold MODE
27
Keypad Lock
29
Communication
29
Remote Indicator Mode
32
XTREM Mode
32
PR4/PR6/Q2 Printer
33
Frame Format RD3
33
Frame Format USB
34
Frame Format PC0
34
Communication Protocol
37
Ticket Print Options
37
Configuring the Scale
38
Settings Menu
39
Scale Calibration
40
Table of Geographical Adjustment Values
41
Digital Filter
42
Weighing of Live Animals
43
Movement Filter
43
Information to be Viewed
43
Digital Outputs
44
Technical Specs
46
Connections
48
Error Messages
50
Notes
51
