19.2 Option 2: indicator with cell connector
In this option, the cell should come with a connector that is compatible with
the factory-fitted one. The possible connectors installed in the indicator for
load cell connection are:

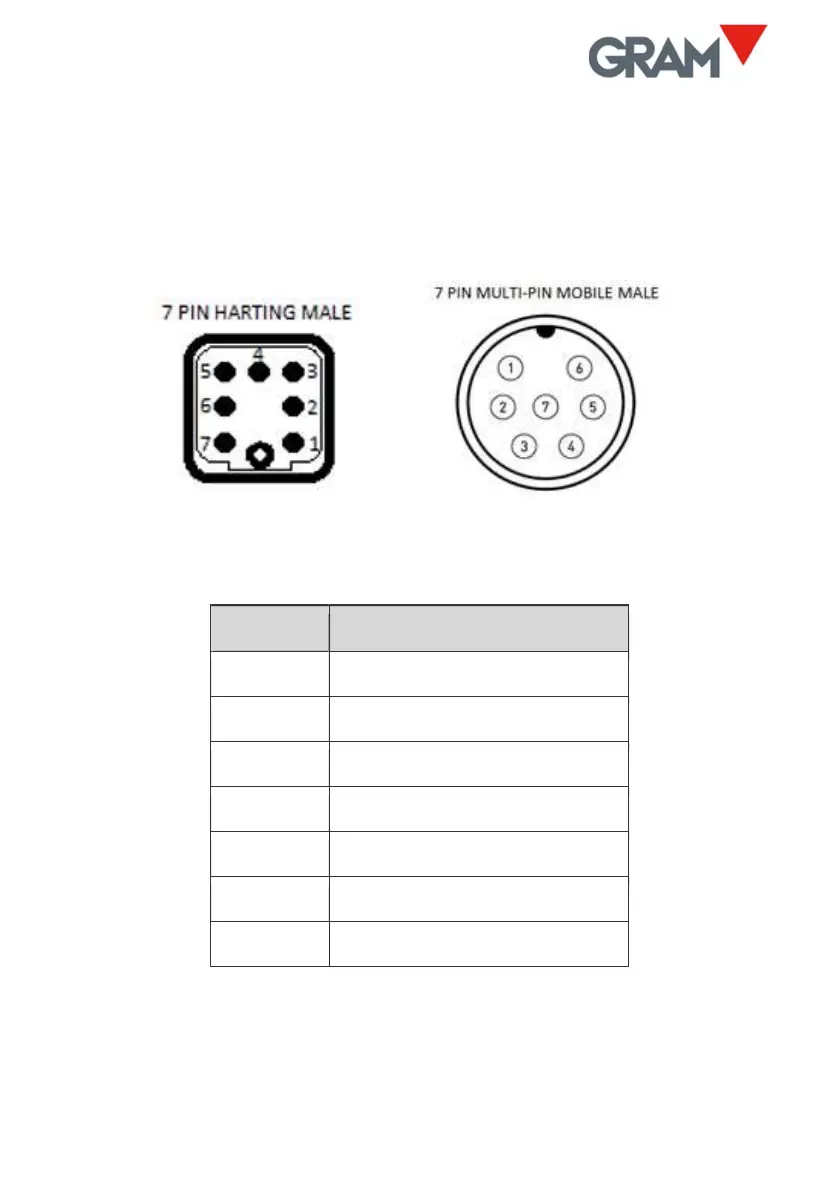

And the pins connection corresponds to that of the following table:
PIN No. SIGNAL
PIN 1 SIG -
PIN 2 SIG +
PIN 3 MESH
PIN 4 EXC -
PIN 5 SENSE -
PIN 6 EXC +
PIN 7 SENSE +
