P a g e | 111

UCM6200 Series User Manual

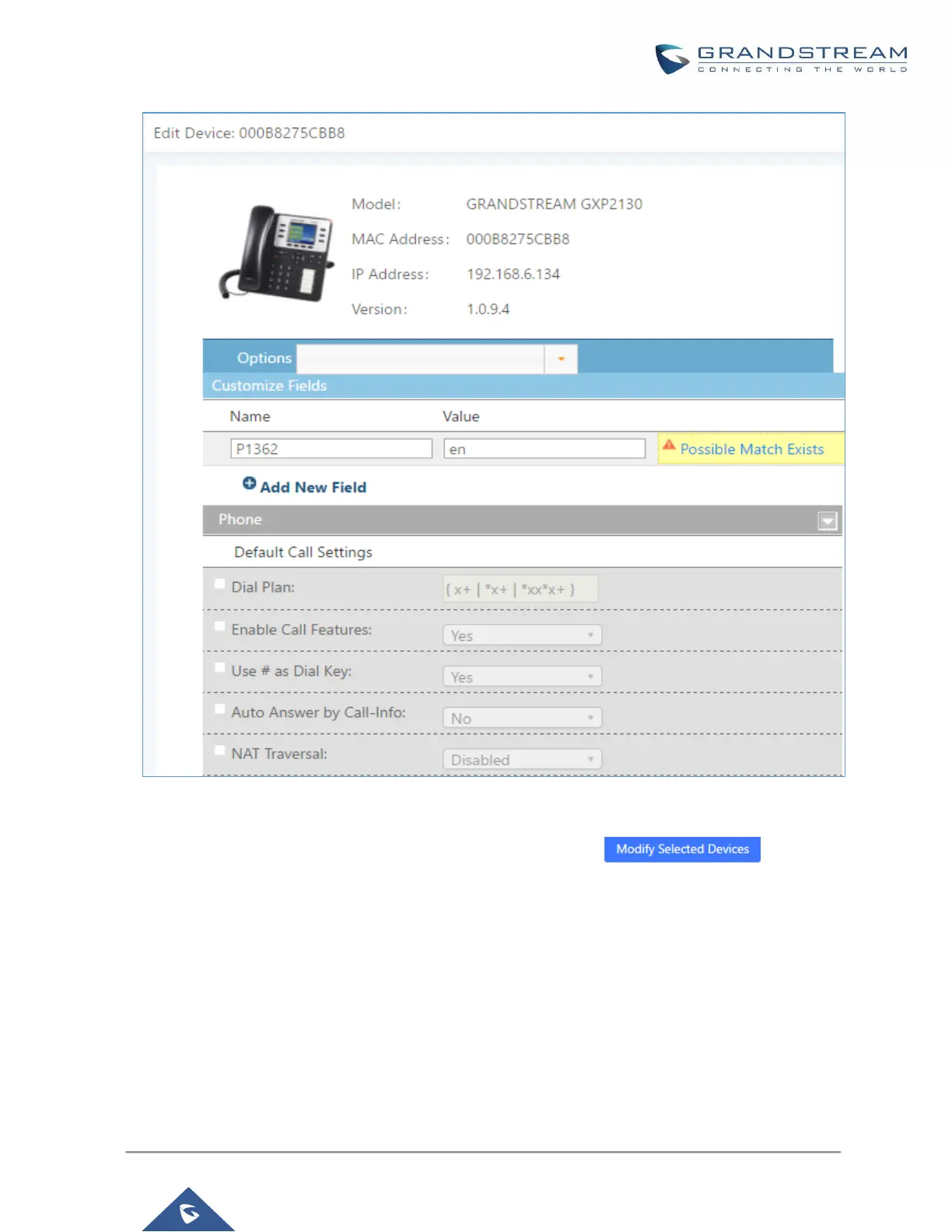

Figure 76: Add P Value in Customize Device Settings

• Select multiple devices that need to be modified and then click on to batch modify

devices.

If selected devices are of the same model, the configuration dialog is like the following figure. Configurations in

five levels are all available for users to modify.
