P a g e | 154

UCM6200 Series User Manual

Using Extension Groups

Here is an example where the extension group can be used. Go to Web GUIExtension/TrunkOutbound

Routes and select "Enable Filter on Source Caller ID". Both single extensions and extension groups will show

up for users to select.

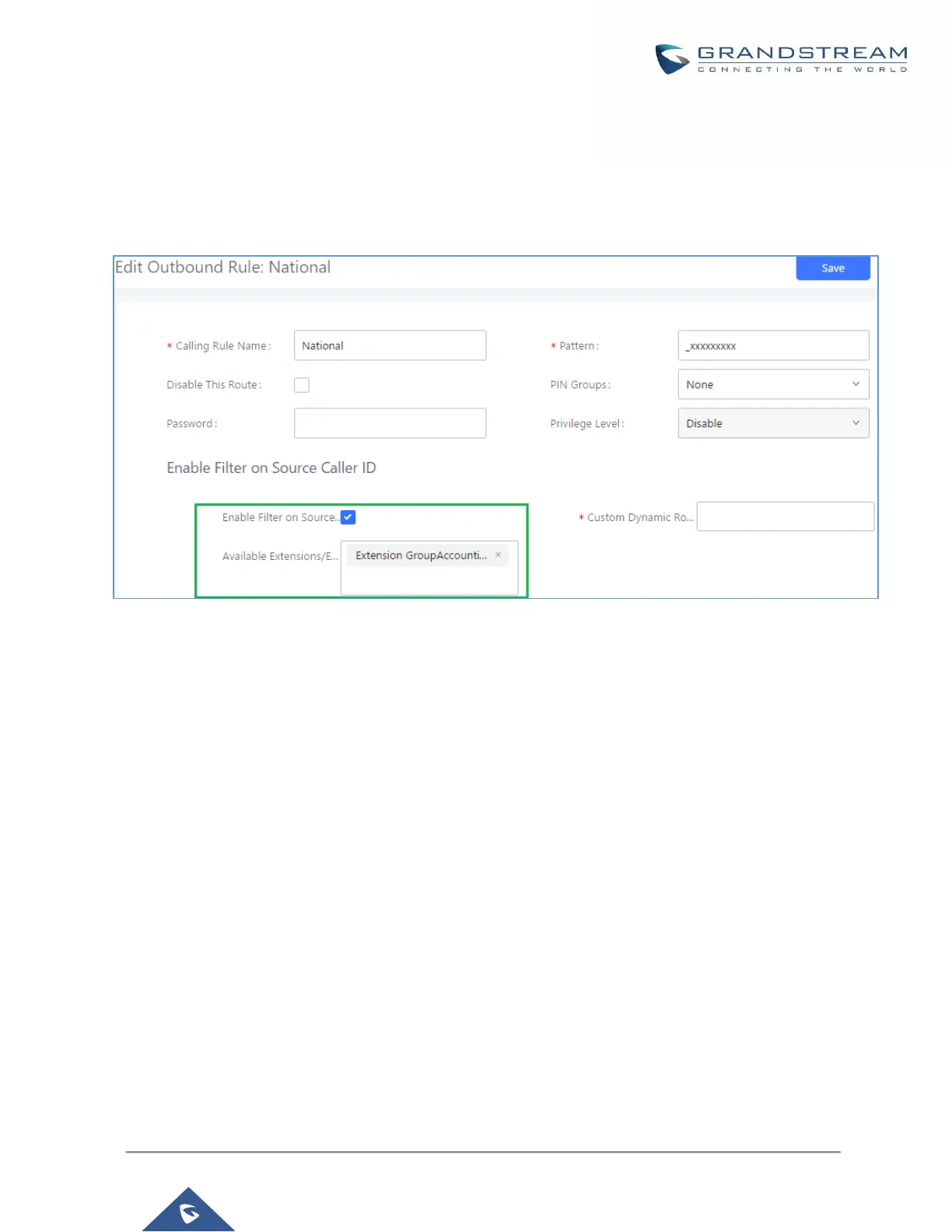

Figure 97: Select Extension Group in Outbound Route
