P a g e | 203

UCM6200 Series User Manual

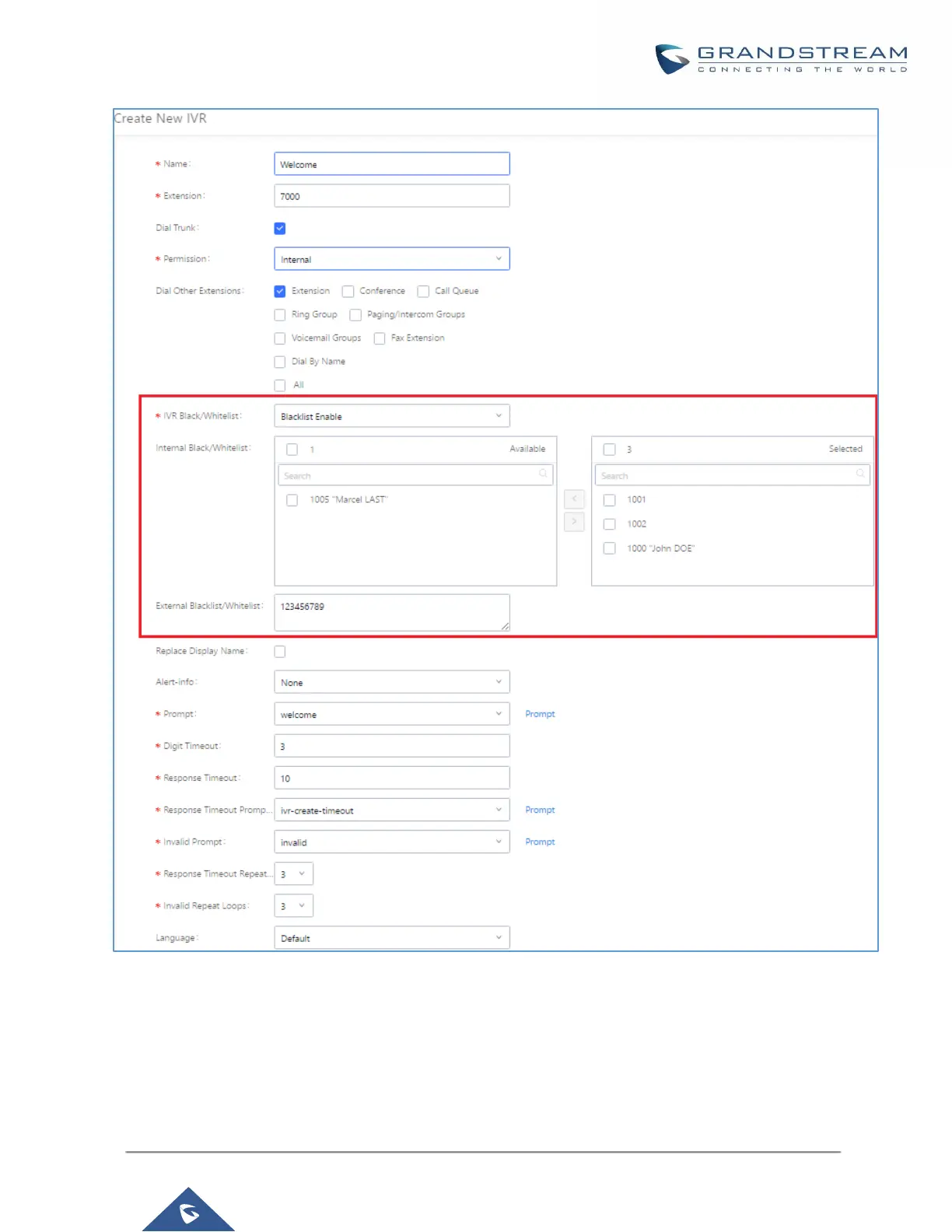

Figure 125: Black/White List

Create Custom Prompt

To record new IVR prompt or upload IVR prompt to be used in IVR, click on “Prompt” next to the “Welcome

Prompt” option and the users will be redirected to Custom Prompt page. Or users could go to Web GUIPBX

SettingsVoice PromptCustom Prompt page directly.

Default Chapter4
