Grant Vortex Eco User Manual

Introduction
5
White System
High level concentric balanced flue kit -
components available:
• Extensions 225mm, 450mm, 950mm
• and adjustable 275 to 450mm
• 45° elbow
• Vertical concentric balanced flue kit
• Extensions 225mm, 450mm, 950mm
• and adjustable 275 to 450mm
• 45° elbow
Red System
A flexible vertical balanced flue system
designed to be fitted inside an existing
masonry chimney.
Consisting of three sections:
• Concentric white painted flue pipe
connected to the boiler
• Vertical concentric flexible flue
(flexible stainless steel flue liner
inside a flexible plastic air inlet liner)
• Terminal assembly for chimney top
mounting
Flue extensions and 45° elbows from the
White system may be used.
Fitting instructions for the Low level,
High level and Vertical balanced flue
systems are supplied with the kits.
1.3 Boiler Components
All burners are pre-set for use with
kerosene and are supplied ready to
connect to a two pipe fuel supply
system with two flexible fuel lines and
3
/8" to
1
/4" BSP male adaptor supplied
with the boiler.
The temperature of the water leaving
the boiler to heat the radiators and hot
water cylinder is User adjustable.
The boiler is fitted with an overheat
thermostat (which allows it to be used
on a sealed central heating system)
which will automatically switch off the
boiler if the heat exchanger exceeds a
pre-set temperature of 111°C ± 3°C.
The control panel is fitted with an
ON/OFF switch, boiler thermostat
control knob and the manual reset
button for the overheat thermostat.
To access the controls, open the lower
front panel by pulling it down as shown
in Figure 1-1.
The controls are shown in Figure 1-2.

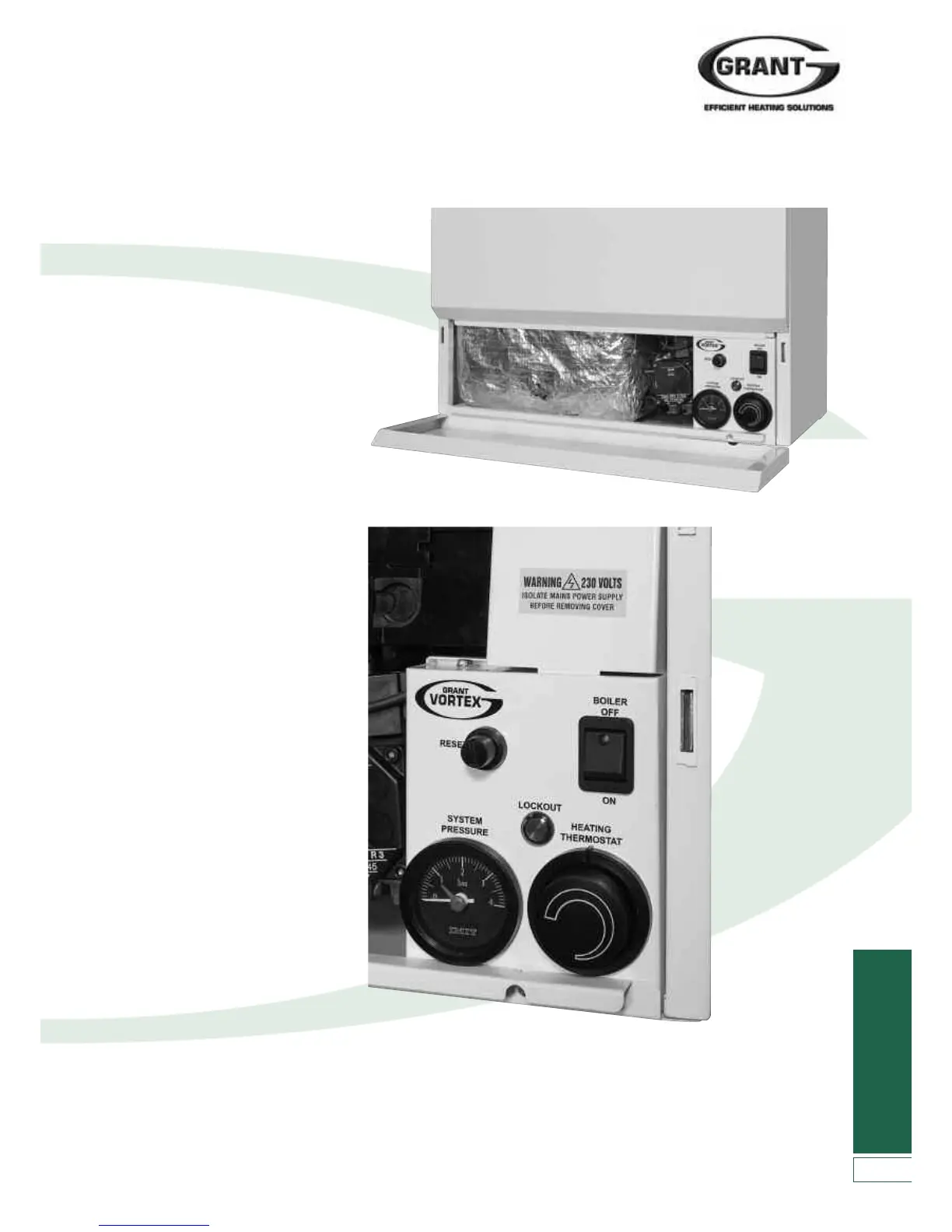

Figure 1-1: Boiler lower front panel in down position
Figure 1-2: Boiler controls

Grant Vortex Eco Specifications

General

Model	Vortex Eco
Category	Boiler
Fuel Type	Oil
Type	Condensing
Warranty	2 years
