Grant Vortex Eco User Manual

Oil Storage &
Supply System
11
3
.2 Burner Oil Connection
The burner fuel pump is supplied for use
with a two-pipe fuel supply system. For
use on a single pipe system, it is
necessary to fit the ‘horseshoe’ washer
into the tapping in the pump - refer to
Figure 3-5.

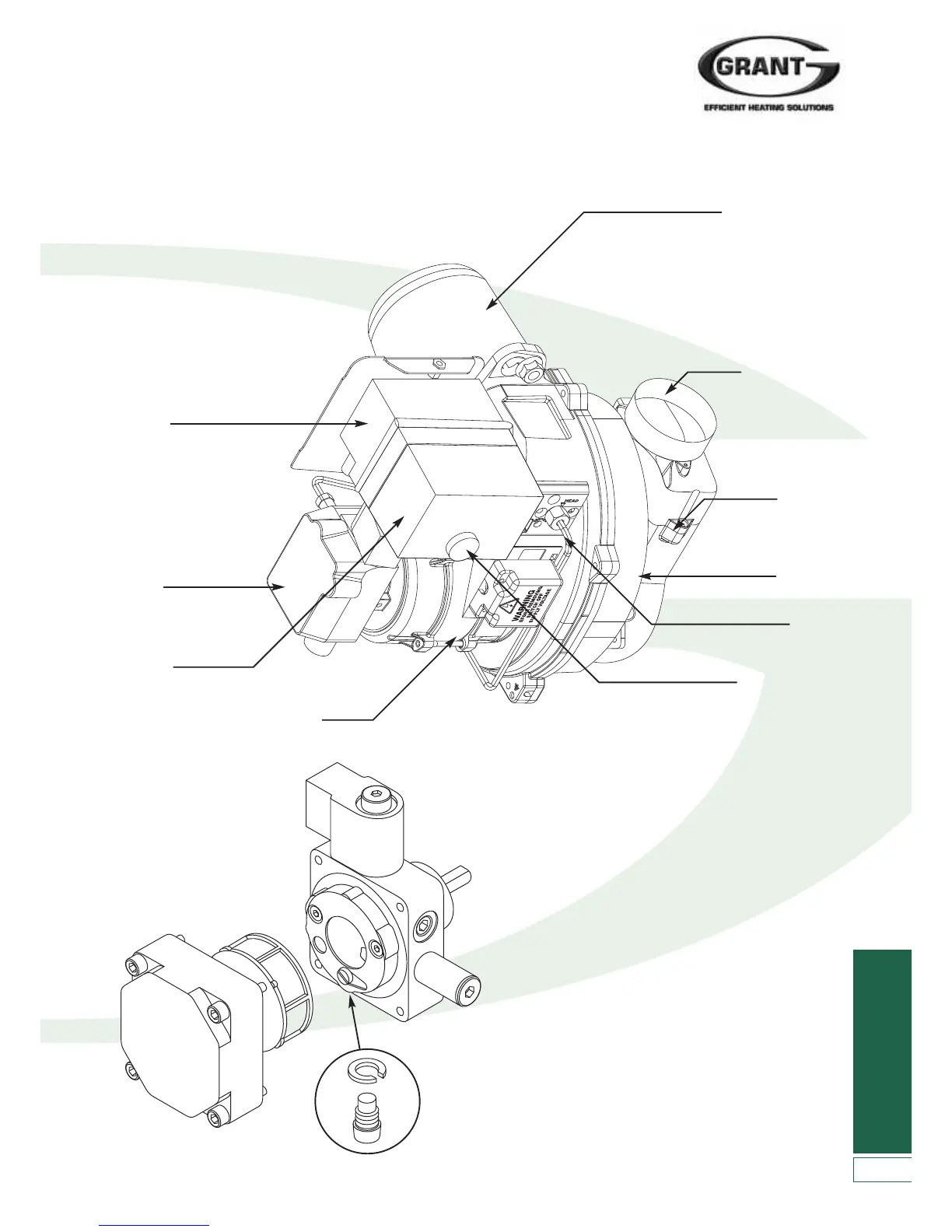

Figure 3-4: Burner components
Figure 3-5: Fitting/location of ‘horseshoe’ washer
B
urner head (blast tube)
Combustion air inlet
Combustion
a
ir adjuster
Lockout reset button
Motor
Control box
Oil pump
Ignition spark
generator
Photocell
Fan housing

Grant Vortex Eco Specifications

General

Model	Vortex Eco
Category	Boiler
Fuel Type	Oil
Type	Condensing
Warranty	2 years
