Grant Vortex Eco User Manual

Boiler Installation
Information
13
4 Boiler Installation Information
4
.1 Introduction
The boiler is supplied already fully
assembled in a carton which is carefully
packed with packing materials. As the
boiler is wall mounted all of the content
of the boiler casing must be removed
with the packaging before installation
can begin, to give access to the rear
fixing panel. The installation procedure
therefore begins with unpacking and
dismantling of the packed boiler.
4.2 Boiler Location
The boiler should be fixed to a wall that
is firm, flat and vertical. It does not
require any special base provisions as
the temperature of the boiler casing is
less than 50°C.
Sufficient clearance must be allowed at
the front of and below the boiler to
remove the burner and baffles for
servicing.
4.3 Preparation for Installation
The following procedure must be
performed before you can begin
dismantling the boiler for installation:
1. With the boiler on the pallet, open
the carton and remove all packing
materials and the carton from the
boiler.
2. Lift open lower front panel, slide
panel to left or right and detach from
the boiler.
4
.4 Dismantling the Boiler
Dismantle the boiler as follows, keeping
all components, screws and washers for
re-assembly:
1. Slacken off hose clip on burner air
inlet and remove snorkel tube from
b
oiler.
3. Remove upper front panel. Pull
bottom edge of panel sharply
upwards to disengage retaining
clips and lift off from boiler.
4. Remove internal packaging from
within boiler casing.
5. Remove filling loop and flexible oil
hose packs from within boiler.
2. Unscrew earth wire from underside
of top casing panel.
3. Slacken screws at rear of top casing
panel and remove screws securing
top panel to side panels. Pull panel
forwards to remove from boiler.
4. System model only - Unscrew
expansion vessel hose from
connection on boiler shell and
remove expansion vessel from
boiler.
5. Disconnect burner plug.
6. System model only – Disconnect
pump plug.
7. Unscrew inlet connection to
condensate trap and remove trap
from boiler.
8. Remove thermostat phials from their
pocket (in right side of heat
exchanger – below return
connection).
9. System model only - Unscrew and
disconnect pressure gauge from
PRV body.
10. Slacken control panel retaining
screws and remove control panel
from boiler.

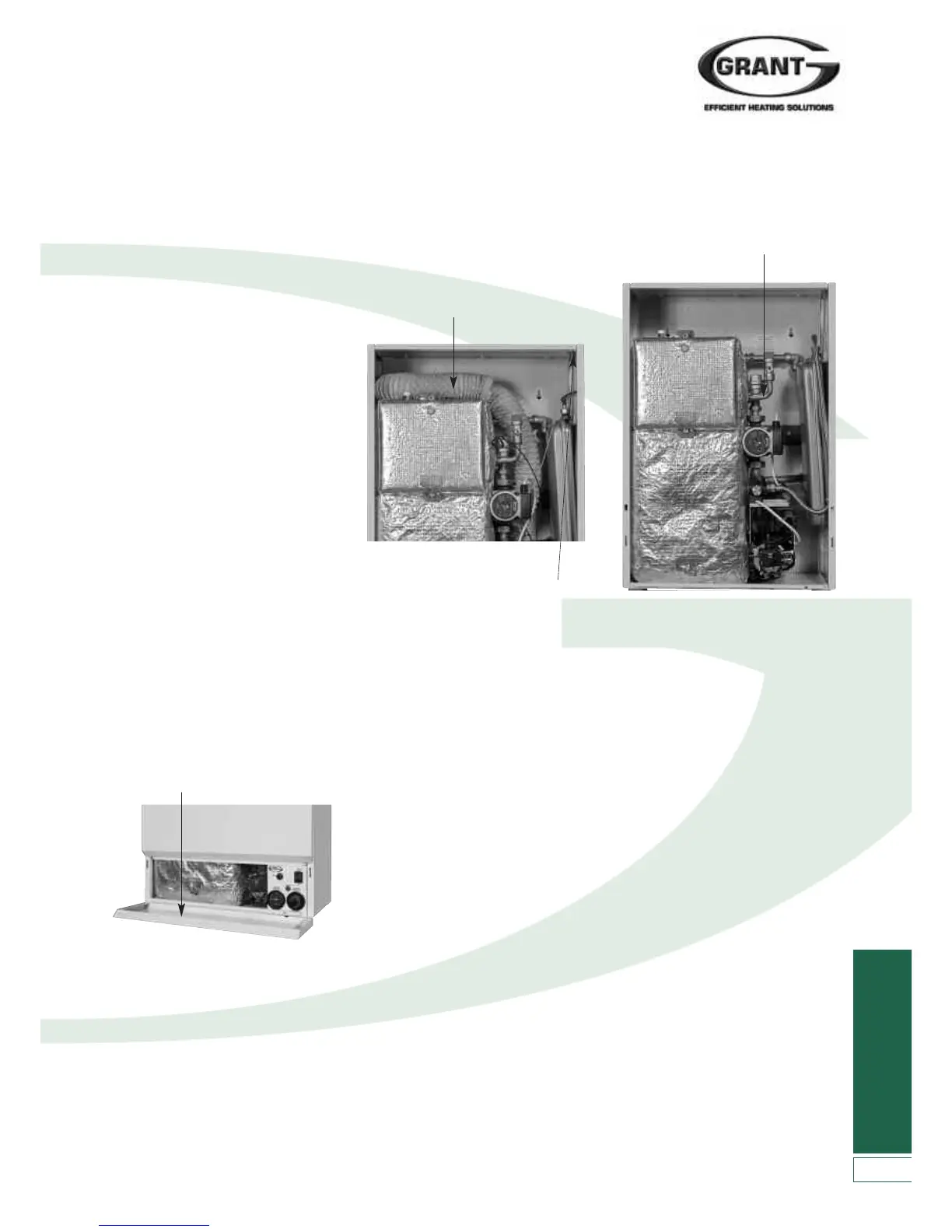

Figure 4-1: Boiler front panel open
Figure 4-2: Dismantling the boiler
Figure 4-3: Removing thermostat phials
