Section 3 — Configuration
Save All Install Data
All the settings (called environmental data) located in the Install menu hier-
archy are saved to and loaded from USB flash memory with the Install - E-Box
-
Misc menu (Figure 65).

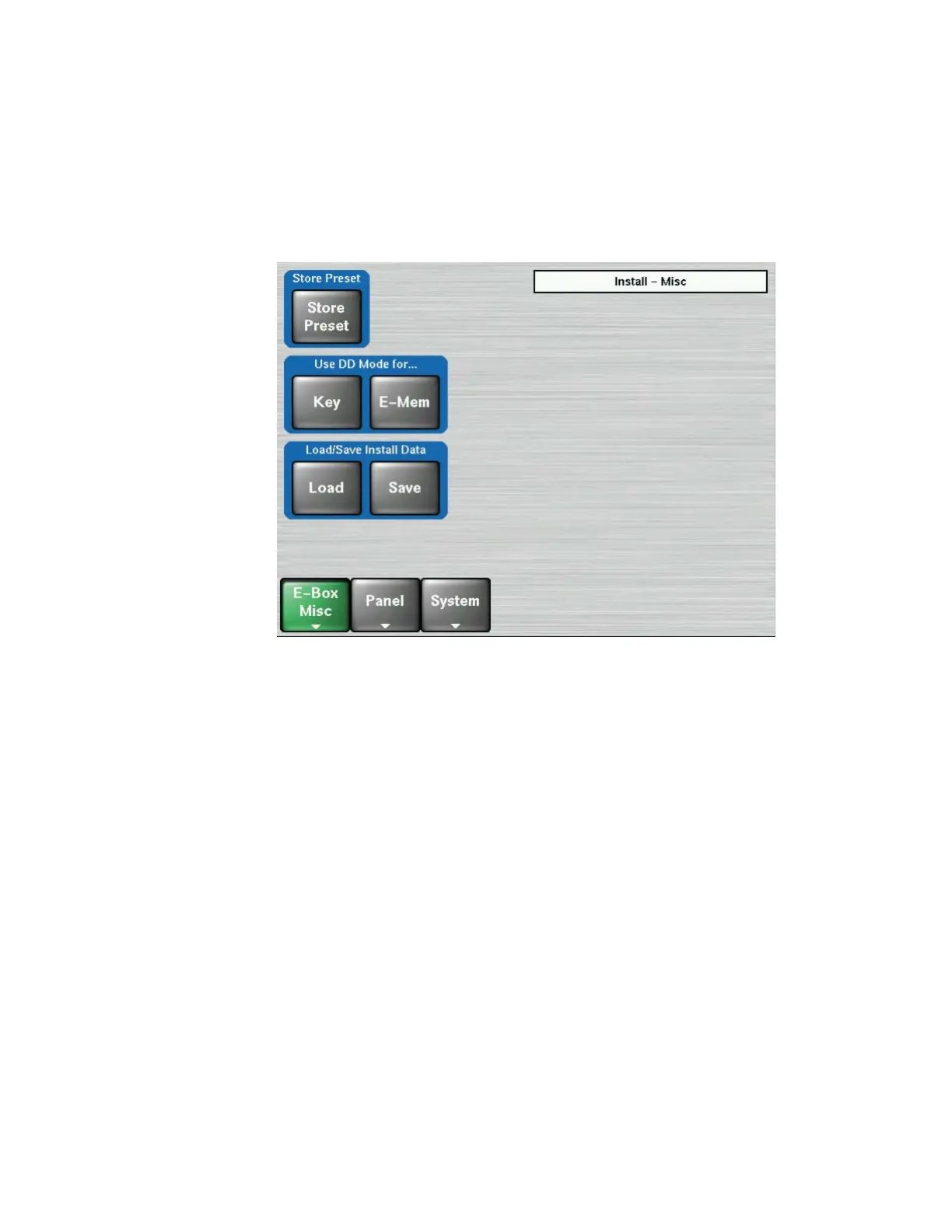

Figure 65. Install - Misc Menu
Note The Save button is grayed out (inoperable) if a USB stick is not present in a
supported control panel USB port. The Load button is grayed out if no USB
stick is present of if no files are available to load from the USB stick. USB
ports labeled SPARE are not supported.
1. Insert a compatible USB stick into an active Kayak panel USB port.
2. Press Home - Install - EBox - Misc to access the menu.
3. Touch the Save button to save the data. An overwrite message will be
displayed if a file of that name already exists.
4. After saving the data, remove the USB stick and store it in a safe place.
Pressing the Load button with a USB present containing Install data will
load that data to the Kayak system. A reset will be required to activate the
new settings.
Note The Sidepanel program identifies the Install data as Global settings.
8448_55_r1

GRASS VALLEY KAYAK HD Specifications

General

Keyers	4 keyers per M/E
Audio Formats Supported	AES/EBU
Input Connections	SDI, Composite, Component
Output Connections	SDI, Composite, Component
Control Interface	Ethernet
Processing	10-bit
Mix Effects (M/E)	2 M/E
