Main Panel Adjustments
Main Panel Adjustments
Panel adjustments generally are not required, but may be necessary on
some systems.
Install - Calibration Menu
To calibrate the fader(s), joystick and touchscreen on your Kayak system:
1. From the Home menu screen press the Install button.
2. Press Panel. The Panel Setup menu displays.
3. Press Calibr. The Install-Calibration menu displays.

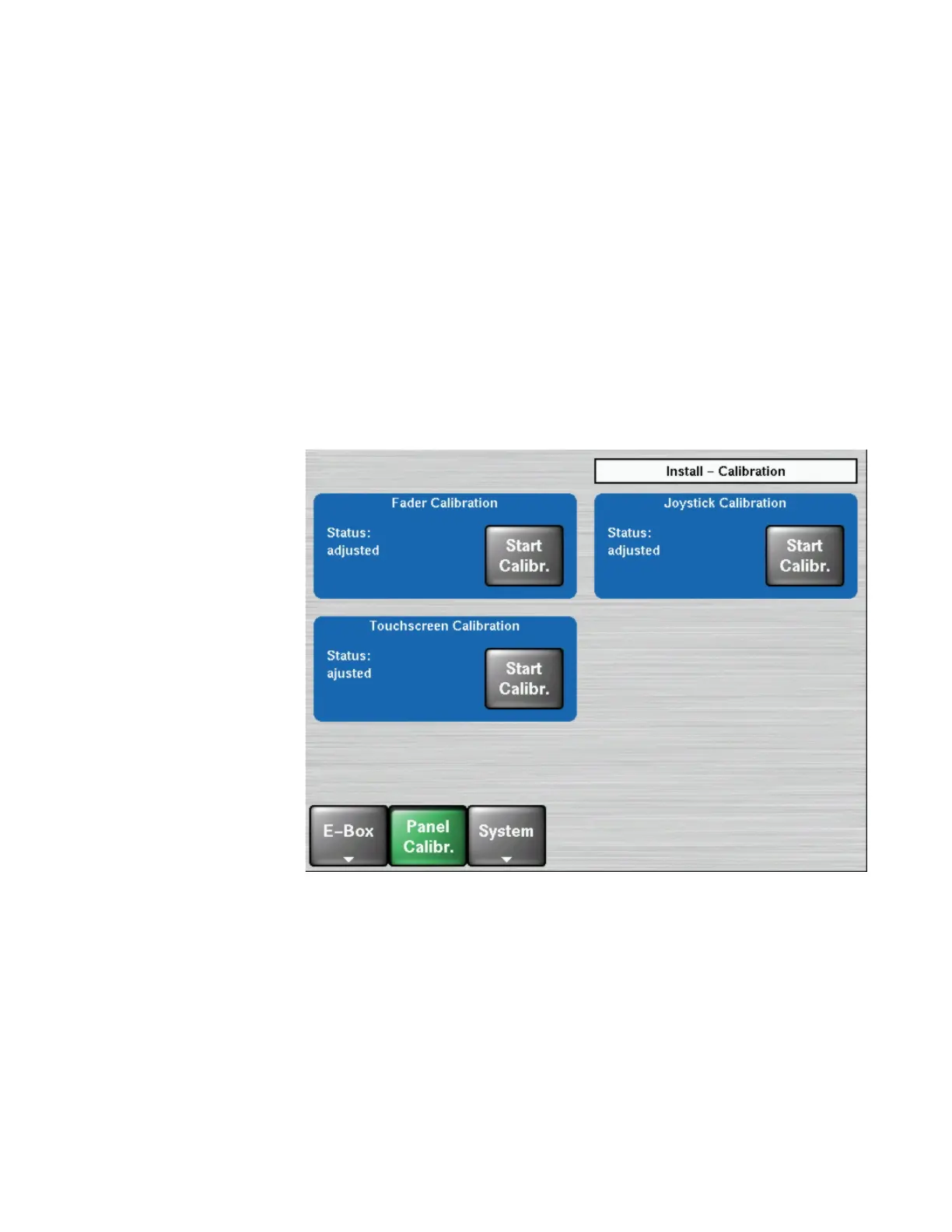

Figure 49. Install - Calibration Menu
Fader Calibration
In the Fader Calibration data pad press the Start Calibr. button and follow the
instructions:
1. Move all faders to the upper position and press OK.
2. Move all faders to the lower position and press OK.
The data pad will indicate that the Status is adjusted when done.

GRASS VALLEY KAYAK HD Specifications

General

Keyers	4 keyers per M/E
Audio Formats Supported	AES/EBU
Input Connections	SDI, Composite, Component
Output Connections	SDI, Composite, Component
Control Interface	Ethernet
Processing	10-bit
Mix Effects (M/E)	2 M/E
