42 Kayak HD — Installation and Service Manual
Section 2 — Installation
8 RU Frame
Video Processor Frame Installation
8 RU Frame Dimensions

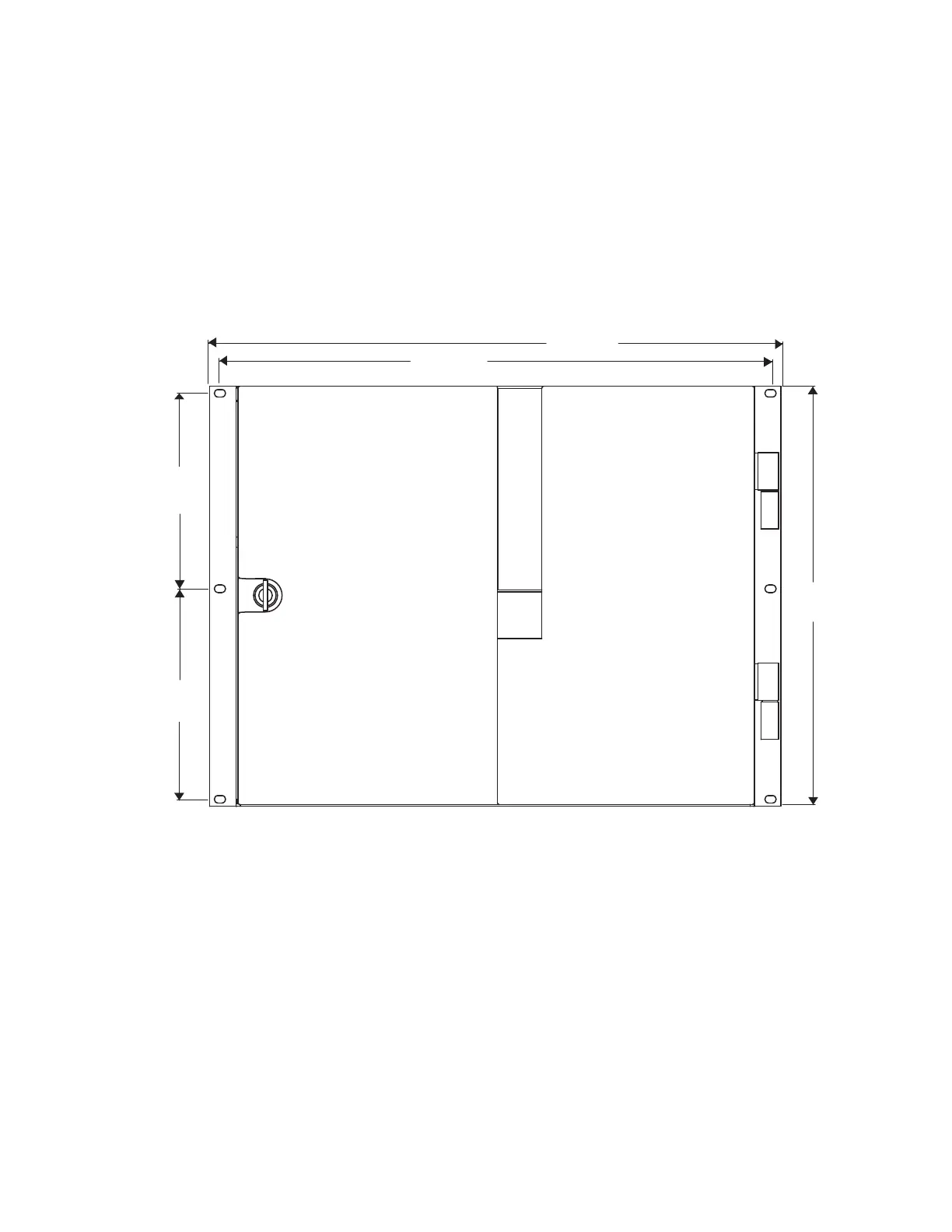

Figure 18. Kayak HD 8 RU Frame Dimensions 1 of 2
483 mm
19.0 in.
465 mm
18.31 in.
166 mm
6.5 in.
178 mm
7.0 in.
355 mm
13.97 in.
8451_16_r0
Front view
