Kayak HD Video Timing
The Asynchronous buses window in the upper left of the Genlock menu
shows an overview of the buses for the entire switcher:
•PP
•ME1
•ME2
•ME3
•AUX
If any bus is displayed in the Asynchronous buses window that means that the
bus input is not in sync and the timing for its video sources must be re-
adjusted.
Select the Video Standard
1. At the top of the Genlock menu press the button shown in the Video Std.
data pad. The
Select Video Standard menu displays.
Note In Figure 41 the button is displayed as HD Auto Detect, but a different video
standard may be selected on your switcher.)

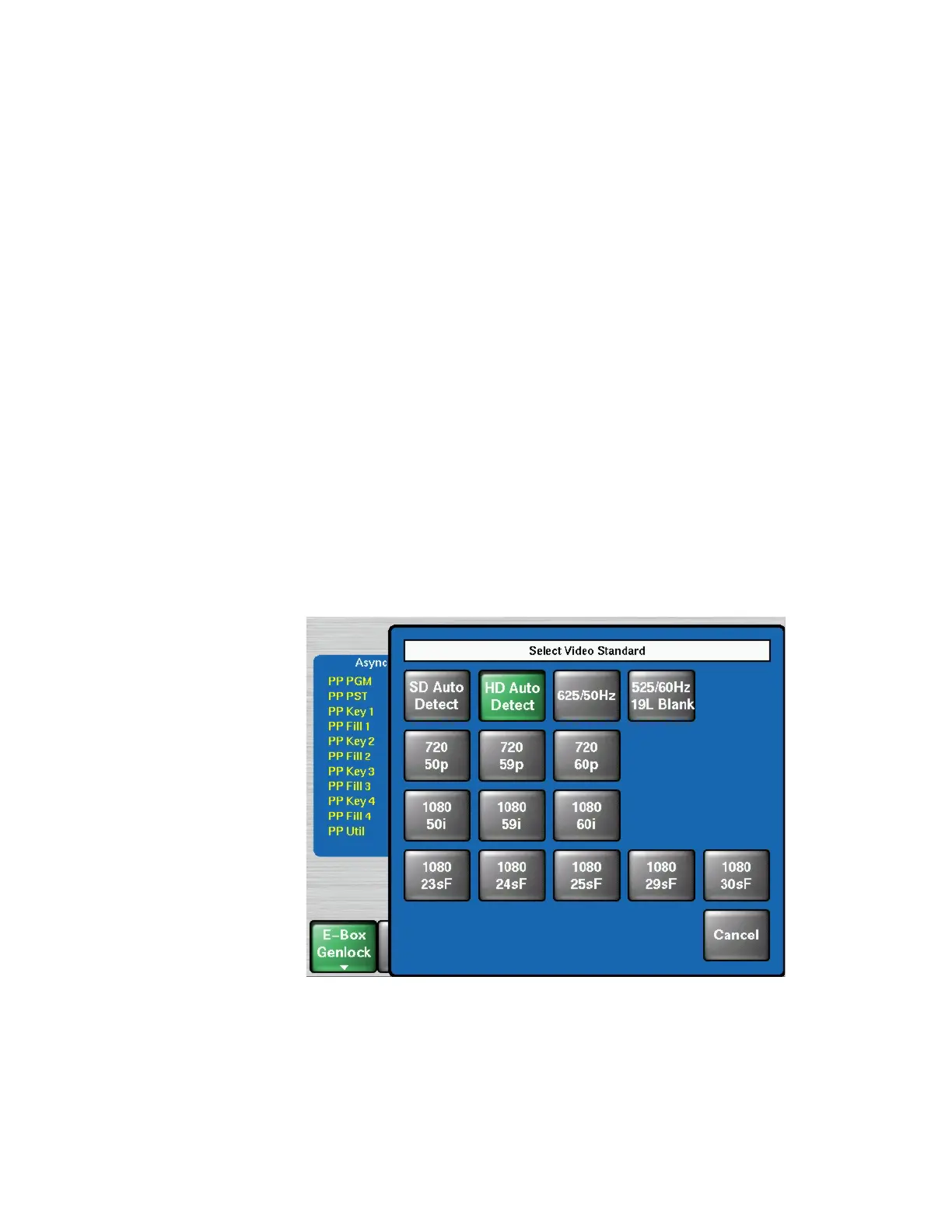

Figure 41. Select Video Standard Menu
2. Press to select the video standard you wish to use for the Kayak HD
switcher. If you select either
SD Auto Detect or HD Auto Detect the Kayak HD
system will automatically determine the appropriate video standard to
apply for your switcher based on the external reference.

GRASS VALLEY KAYAK HD Specifications

General

Keyers	4 keyers per M/E
Audio Formats Supported	AES/EBU
Input Connections	SDI, Composite, Component
Output Connections	SDI, Composite, Component
Control Interface	Ethernet
Processing	10-bit
Mix Effects (M/E)	2 M/E
