Kayak HD — Installation and Service Manual 37
General Rack Mounting Instructions
General Rack Mounting Instructions
The maximum ambient temperature for this unit is 40-degrees C (104-
degrees F).
Installing the frame in a closed or multi-unit rack assembly together with
other units could increase the maximum ambient temperature for this unit.
If the unit is installed in a rack, no ventilation openings should be blocked
or otherwise covered. Make sure you install the frame so that you allow for
cooling airflow.
Make sure that you mount the unit in the rack so that it is evenly balanced
to prevent damage to the frame and to avoid creating a hazardous condi
-
tion.
When connecting the unit to the supply circuit be sure that the supply
circuit of the rack is not overloaded. The unit must be well-grounded using
the ground connector on the rear. When connecting the unit in a closed or
multi-unit rack assembly together with other units be sure that the sum of
the touch (leakage) currents for all power supplies does not exceed 3.5 mA.
4 RU Frame
Video Processor Frame Installation
4 RU Compact Frame Dimensions

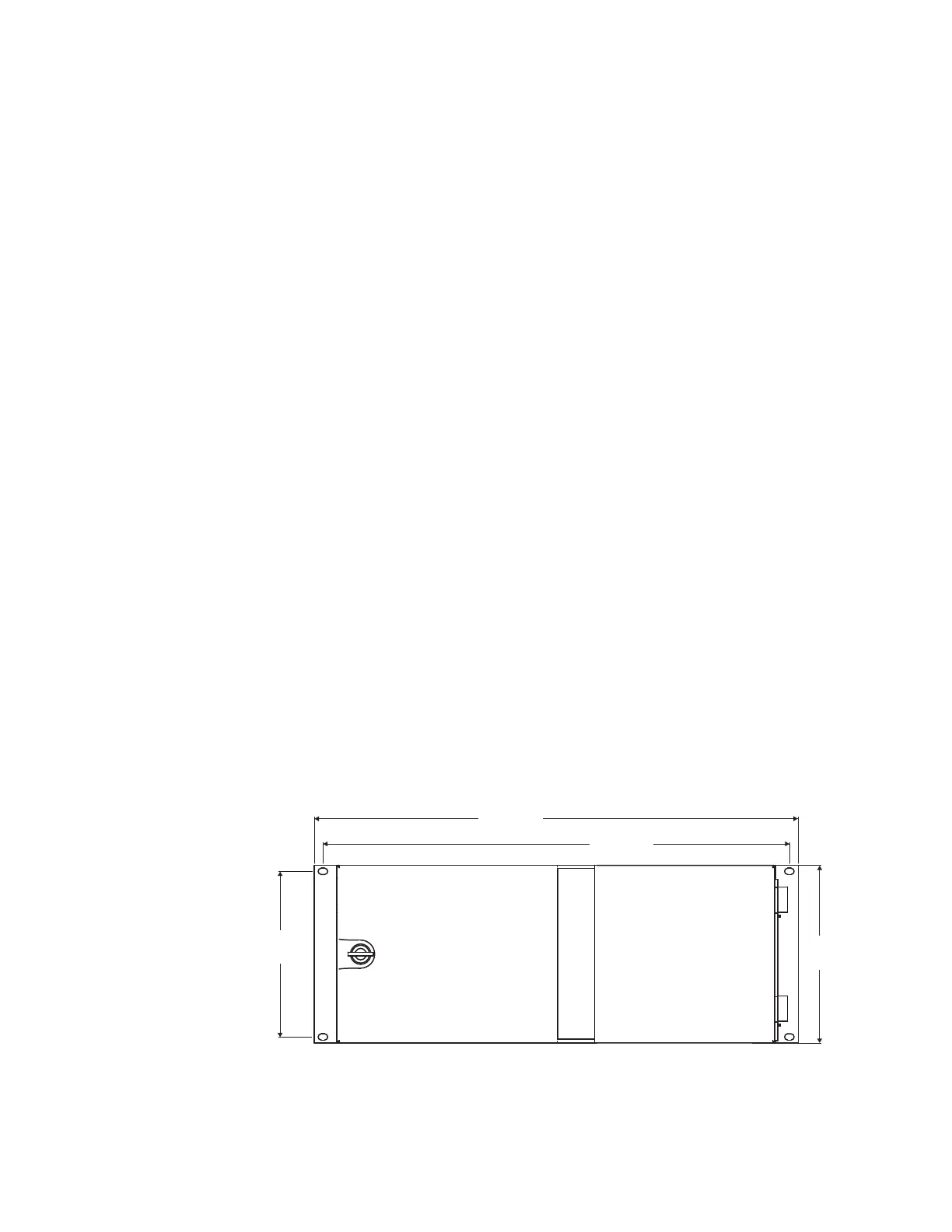

Figure 12. Kayak HD 4 RU Frame Dimensions
177 mm
6.97 in.
482 mm
19.0 in.
465 mm
18.31 in.
165 mm
6.5 in.
Front view
8451_15.1_r1

GRASS VALLEY KAYAK HD Specifications

General

Keyers	4 keyers per M/E
Audio Formats Supported	AES/EBU
Input Connections	SDI, Composite, Component
Output Connections	SDI, Composite, Component
Control Interface	Ethernet
Processing	10-bit
Mix Effects (M/E)	2 M/E
