GRASS VALLEY KAYAK HD User Manual

52 Kayak HD — Installation and Service Manual
Section 2 — Installation
2 M/E Control Panel

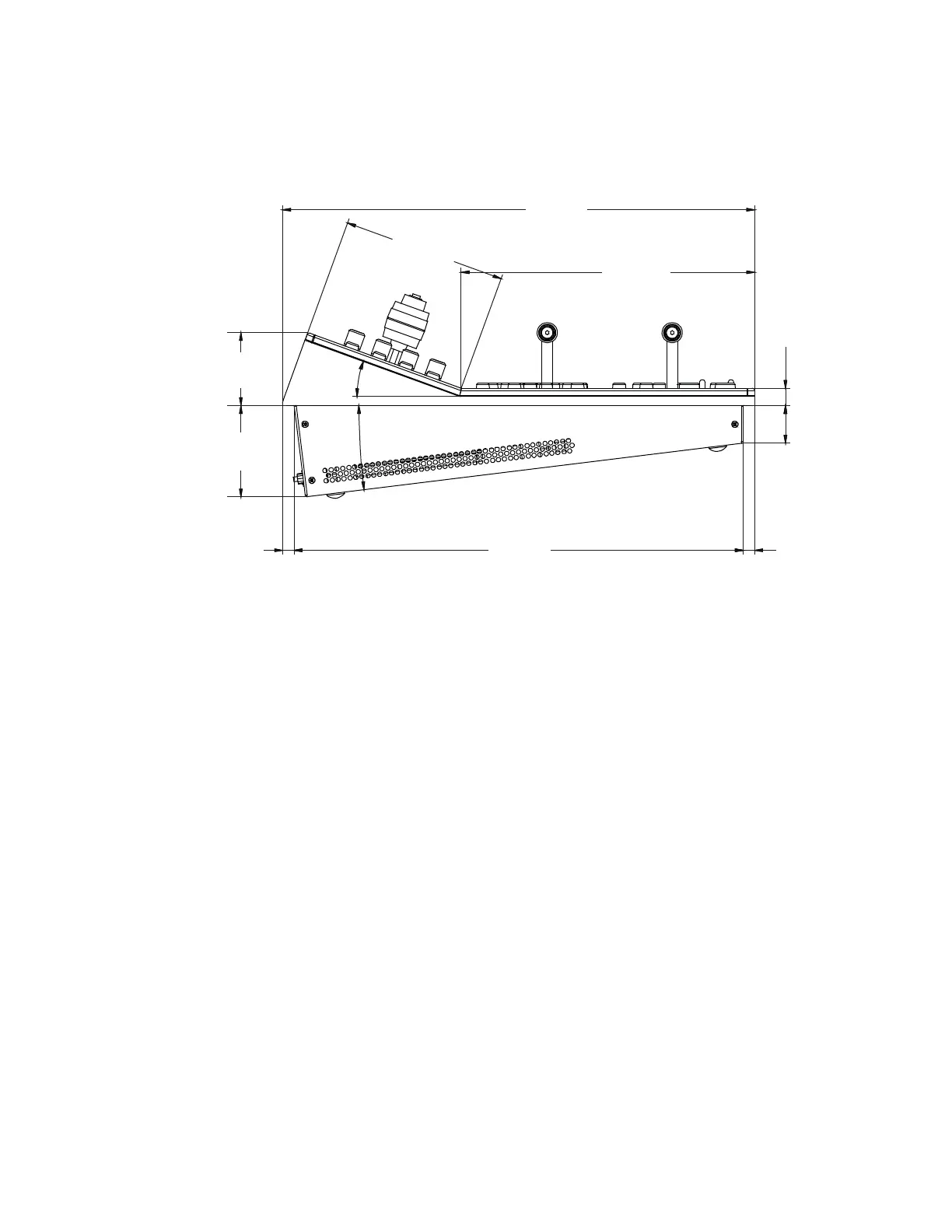

Figure 27. Kayak HD 150C and 200C Control Panel Dimensions 1 of 2
418 mm
16.46 in.
398 mm
15.66 in.
10 mm
0.39 in.
34 mm
1.31 in.
16 mm
0.60 in.
11 mm
0.40 in.
65 mm
2.55 in.
81 mm
3.19 in.
260 mm
10.23 in.
1445 mm
5.69 in.
8451_08_r2
20°
7°

GRASS VALLEY KAYAK HD Specifications

General

Keyers	4 keyers per M/E
Audio Formats Supported	AES/EBU
Input Connections	SDI, Composite, Component
Output Connections	SDI, Composite, Component
Control Interface	Ethernet
Processing	10-bit
Mix Effects (M/E)	2 M/E
