Detail program description - Control adjust
does not refer to the repositioned point, however:
instead, it signifi es that a further point can be set at
the current control position.
Please note that the percentage value on the •
"Output" line always relates to the current joystick
position and not to the position of the point.

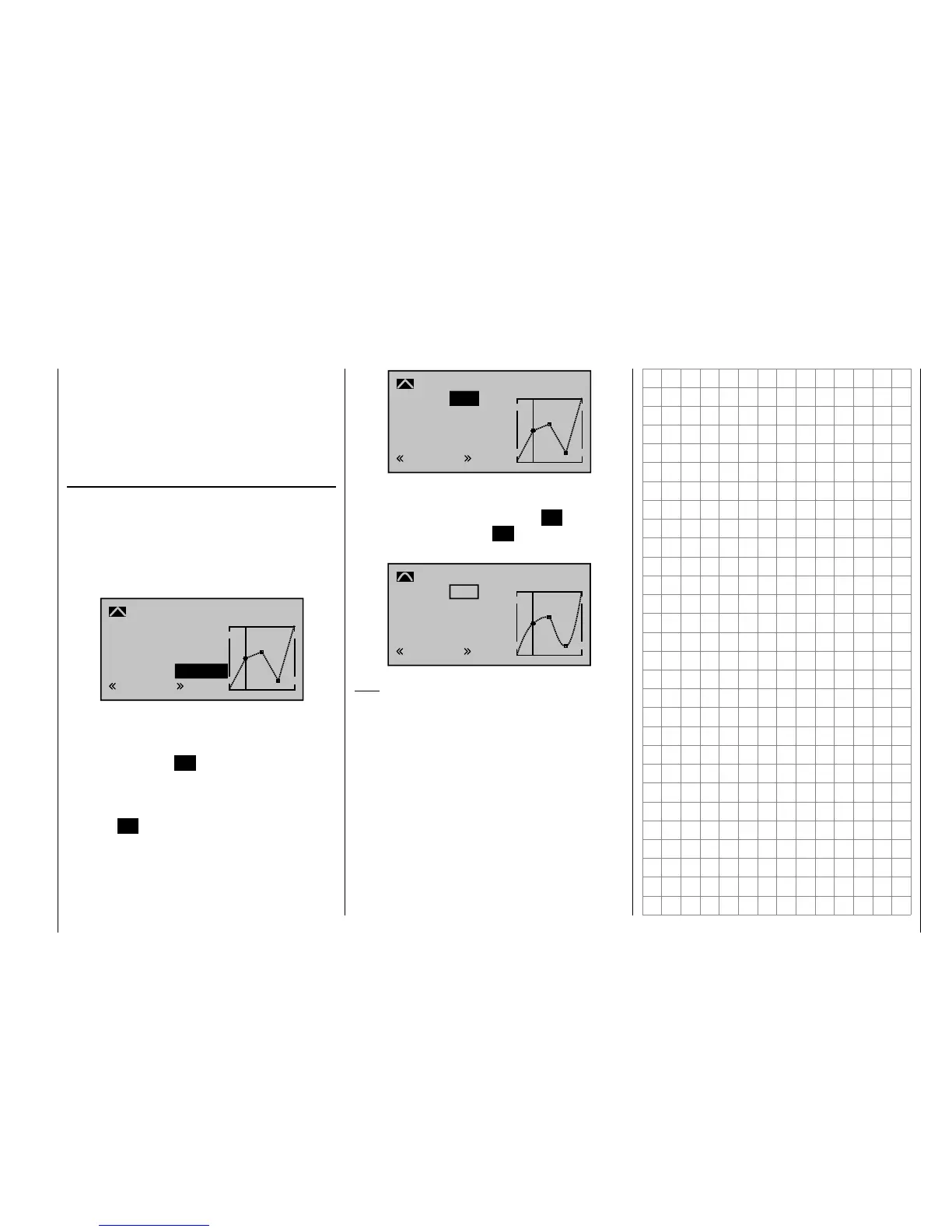

Smoothing the Channel 1 curve
In the example below, sample reference points have
been set:
Reference point 1 to 0%
Reference point 2 to +25%
Reference point 3 to -75%
as described in the last section.
1
–50%
0%
0%
Normal
off
Input
Output
Point
C1 Curve
Curve
This "jagged" curve profi le can be smoothed
automatically simply by pressing a button.
First – assuming a situation is confi gured as presented
above – tap the center ESC button on the left touch pad
to deactivate the value fi eld. Then use the arrow keys on
the left or right touch pad to move the marker frame in
an upwards direction to the "Curve" line. Now briefl y tap
the center SET key on the right touch pad to activate the
value fi eld on the "Curve" line:
1
–50%
0%
0%
off
Normal
Input
Output
Point
C1 Curve
Curve
Use the arrow keys on the right touch pad to set the
curve value from "off" to "on" and complete this setup
procedure by briefl y tapping the center SET key on the
right touch pad or the center ESC key on the left touch
pad:
1
–50%
0%
0%
on
Normal
Input
Output
Point
C1 Curve
Curve
Note:
The curves shown here are for demonstration purposes
only and are not at all representative of real throttle/
airbrake curves. For real-world application examples,
see the programming examples on pages 242 and 285.
