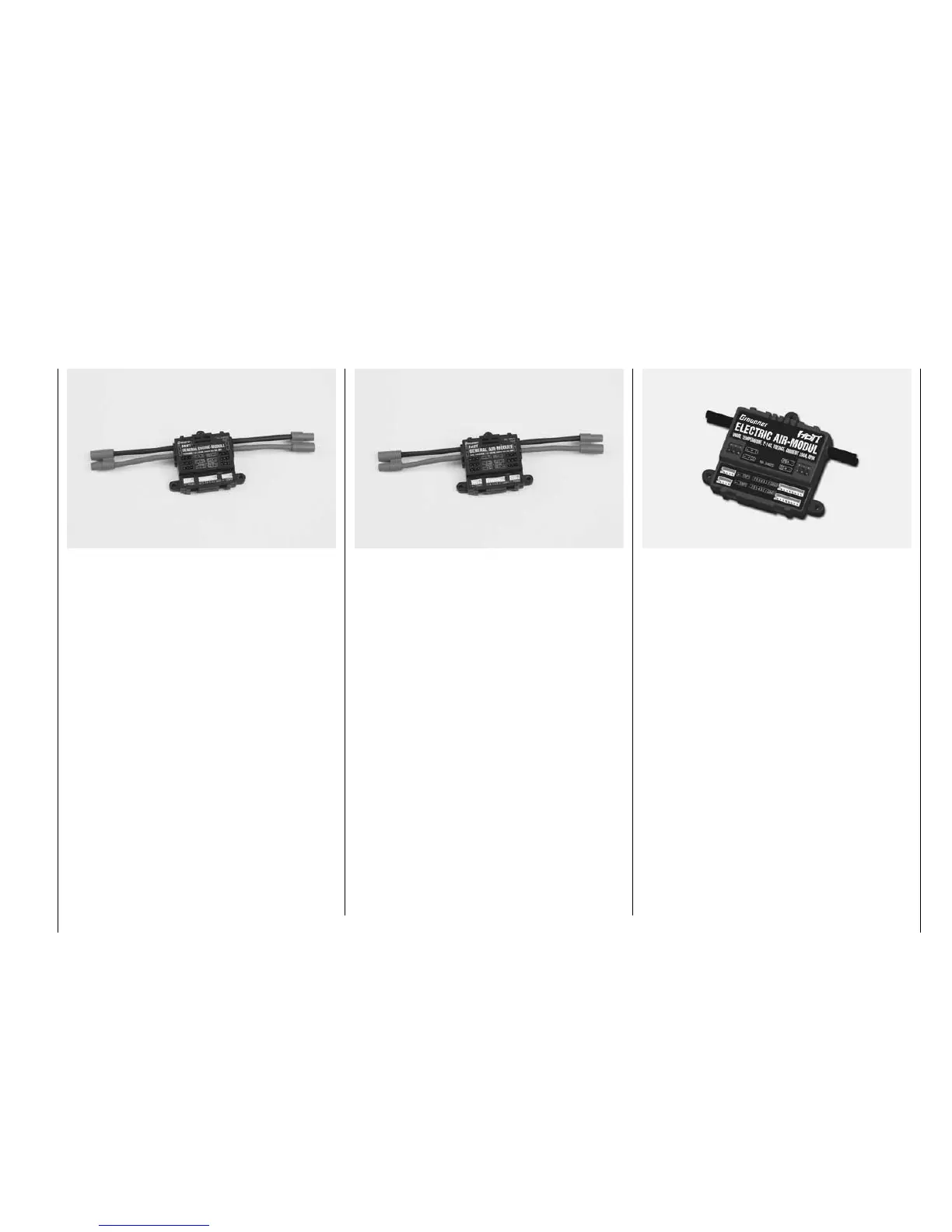

General Engine-Module Graupner HoTT
Order No. 33610
General sensor for Graupner HoTT receivers and models with
combustion or electric motor:
2x temperature and voltage measurements with warning thresholds •
for min. and max. voltage and min. and max. temperature
Single cell measurement with warning thresholds for min. voltage•
Voltage, current and capacity measurement with warning thresholds •
for min. and max. voltage, max. capacity and max. current
Programmable current limiting•
Current limiting with shunt resistors 2 x 1 mOhm parallel = 0.5 mOhm•
Rotational speed measurement and warning thresholds for min. and •
max. rotational speed
Fuel measurement with warning thresholds in 25 % increments •
(after software update).
Adjustable warning time: OFF, 5, 10, 15, 20, 25, 30 seconds, always•
Adjustable warning repetition time: Always, 1, 2, 3, 4, 5 min, once•
2x temperature selectively 0 to 120 °C or 200 °C and voltage •
measurement up to 80 V DC
1x rotational speed measurement up to 100,000 rpm with a two-•
blade propeller
1x speed controller/servo input, 1x rotational speed regulatio•
n input, 1x speed controller/servo output for rotational speed
regulation
1x current, voltage and capacity measurement up to 40 A (pulse 1 s •
up to 60 A) and up to 30 V
1x single cell monitoring for 2 - 6S lithium batteries (LiPo, LiIo, LiFe) •
etc.; see www.graupner.de for the respective product•
General Air-Module Graupner HoTT
Order No. 33611
General sensor for Graupner HoTT receivers and models with
combustion or electric motor:
Vario with altitude signals and ascend and descend signals and •
additional warning thresholds for min. altitude, max. altitude, rate of
ascend and descend in two stages
Altitude display (-500 … +3000 m) and memory of the min. and max. •
altitude.
2x temperature and voltage measurements with warning thresholds •
for min. and max. voltage and min. and max. temperature
Single cell measurement with warning thresholds for min. voltage•
Voltage, current and capacity measurement with warning thresholds •
for min. and max. voltage, max. capacity and max. current
Rotational speed measurement with rotational speed regulation •
(programmable) and warning thresholds for min. and max. rotational
speed
Fuel measurement with warning thresholds in 25 % increments.•
Adjustable warning time: OFF, 5, 10, 15, 20, 25, 30 seconds, always•
Adjustable warning repetition time: Always, 1, 2, 3, 4, 5 min, once•
2x temperature selectively 0 to 120 °C or 200 °C and voltage •
measurement up to 80 V DC
1x rotational speed measurement up to 100,000 rpm with a two-•
blade propeller
1x speed controller/servo input, 1x rotational speed regulation input, •
1x speed controller/servo output for rotational speed regulation
1x current and voltage and capacity measurement up to 40 A (pulse •
1s: 60 A ) and up to 30 V
etc.; see www.graupner.de for the respective product•
Electric Air-Module Graupner HoTT
Order No. 33620
General sensor for Graupner HoTT receiver and models with electric
motor
Vario with altitude signals, ascend and descend signals as well as •
additional warning thresholds for min. altitude, max. altitude, rate of
ascend and descend in two stages
Altitude display (-500 … +3000 m) and memory of the min. and max. •
altitude.
2x temperature and voltage measurements with warning thresholds •
for min. and max. voltage and min. and max. temperature
Single cell measurement 2 ... 14S with warning thresholds for min. •
voltage
Voltage, current and capacity measurement with warning thresholds •
for min. and max. voltage, max. capacity and max. current
Adjustable warning time: OFF, 5, 10, 15, 20, 25, 30 seconds, always•
Adjustable warning repetition time: Always, 1, 2, 3, 4, 5 min, once•
2x temperature selectively 0 to 120 °C or 200 °C and voltage •
measurement up to 80 V DC
1x speed controller input, 1x speed controller output for single cell •
undervoltage correction
1x current and voltage and capacity measurement up to 150 A •
(short-term 1 sec 320 A) and up to 60 V
1x single cell monitoring for 2 - 14S lithium batteries (LiPo, LiIo, LiFe)•
1x telemetry connection for receiver•
