Communication
21
M_XCOM_EN_B

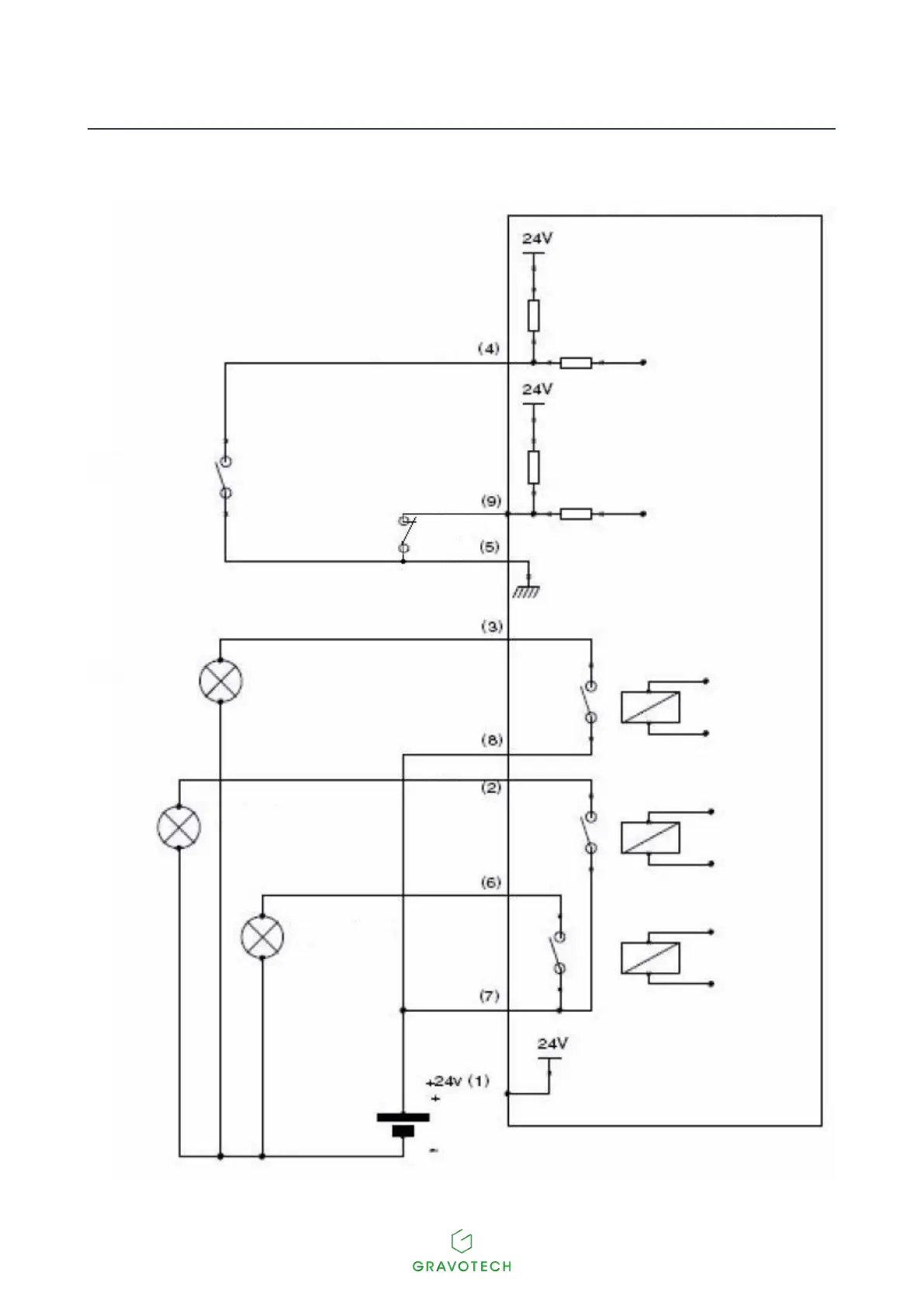

Connection diagram for the dedicated Inputs / Outputs
SubD 9F Communication Machine CCU side
Startmarking
External
contact
External contact
Stopmarking
External light
External light
External light
Gnd
Fault
Machine ready
Common Relay
Markinginprogress
Markinginprogress
