Gravotech XCOM - Input Wiring Diagrams

Communication
29
M_XCOM_EN_B

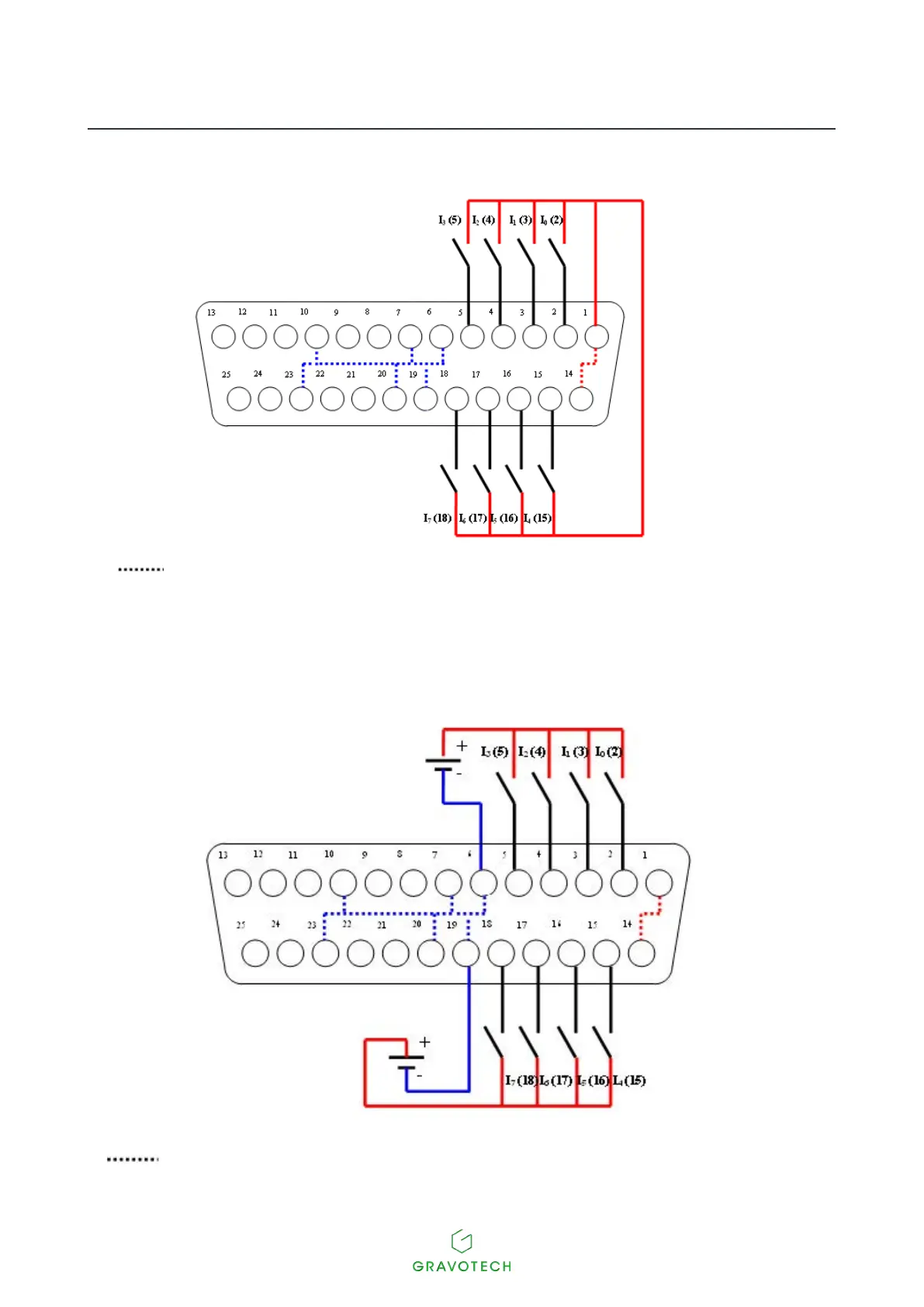

• Wiring of 8 inputs with power supplied by XCOM
Internalconnections:+24VDCpowersupply(1-14)-Gnd(6-7-10-19-20-23)
• Wiring of 8 inputs with power supplied by the user
Internalconnections:+24VDCpowersupply(1-14)-Gnd(6-7-10-19-20-23)
Externalpowersupply(+24VDC)
External power supply
(+24VDC)
