Gree CE53-24/F(C) User Manual

Multi-VRF Centralized Controller
4
3.2 Wiring Instructions
(1) Wiring Ports
Port
print
G1, G2
F1, F2
A2, B2
A3, B3
L, N
Meaning
CAN
comm. port
【
reserved
port
】
【
reserved port
】
【
reserved port
】
Power
port
(2) Power Supply
The smart centralized controller shall use independent power supply.
The range of input voltage: 100
～
240 VAC; Frequency range: 50/60Hz
Select power cord according to the following table. Never use the power cord
that is not in compliance with instructions of this manual.
Cord type
Cord standard
Cord size (mm
2
)
Single-cord soft conductiveunsheathed cord
(60227 IEC 08)
IEC 60227-3:2007
1.5
(3) Connection Method
There are three methods to connect centralized controller with the air
conditioning system.
Method 1: Connect with indoor network

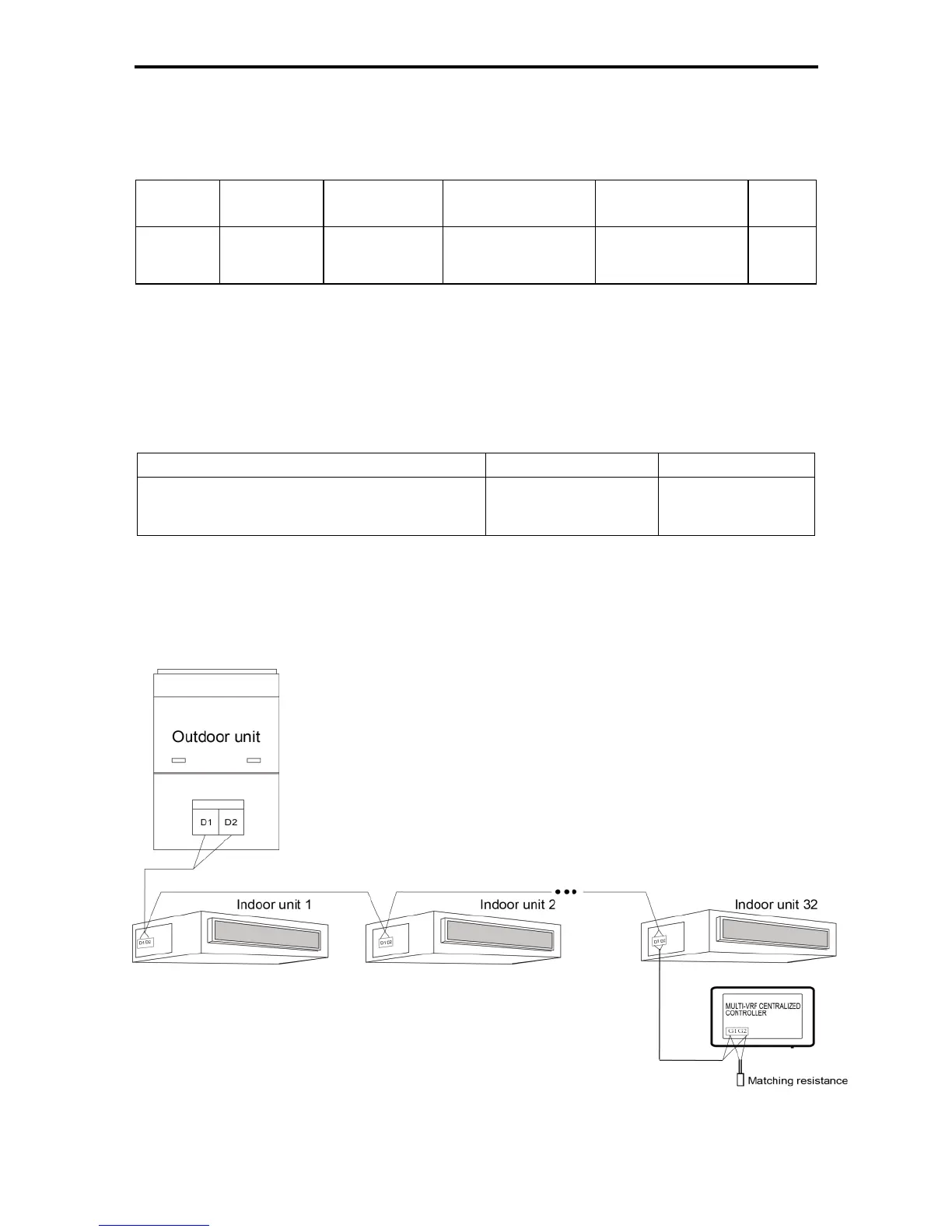

Fig.3.4 Centralized Controller Connected with Indoor Network
Method 2: Connect with outdoor network
