126

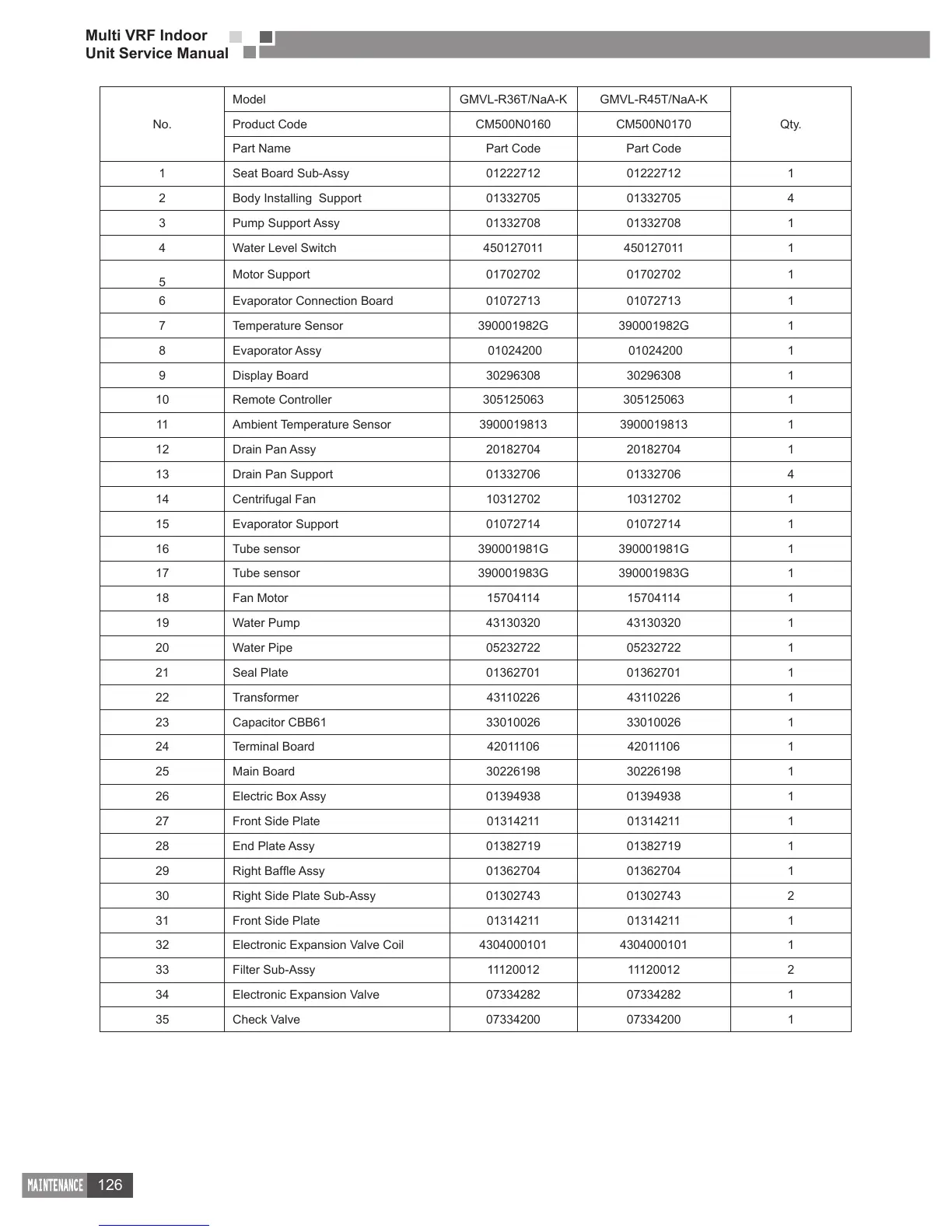

Multi VRF Indoor
Unit Service Manual
No.
Model GMVL-R36T/NaA-K GMVL-R45T/NaA-K
Qty.Product Code CM500N0160 CM500N0170
Part Name Part Code Part Code
1 Seat Board Sub-Assy 01222712 01222712 1
2 Body Installing Support 01332705 01332705 4
3 Pump Support Assy 01332708 01332708 1
4 Water Level Switch 450127011 450127011 1
5
Motor Support 01702702 01702702 1
6 Evaporator Connection Board 01072713 01072713 1
7 Temperature Sensor 390001982G 390001982G 1
8 Evaporator Assy 01024200 01024200 1
9 Display Board 30296308 30296308 1
10 Remote Controller 305125063 305125063 1
11 Ambient Temperature Sensor 3900019813 3900019813 1
12 Drain Pan Assy 20182704 20182704 1
13 Drain Pan Support 01332706 01332706 4
14 Centrifugal Fan 10312702 10312702 1
15 Evaporator Support 01072714 01072714 1
16 Tube sensor 390001981G 390001981G 1
17 Tube sensor 390001983G 390001983G 1
18 Fan Motor 15704114 15704114 1
19 Water Pump 43130320 43130320 1
20 Water Pipe 05232722 05232722 1
21 Seal Plate 01362701 01362701 1
22 Transformer 43110226 43110226 1
23 Capacitor CBB61 33010026 33010026 1
24 Terminal Board 42011106 42011106 1
25 Main Board 30226198 30226198 1
26 Electric Box Assy 01394938 01394938 1
27 Front Side Plate 01314211 01314211 1
28 End Plate Assy 01382719 01382719 1
29 01362704 01362704 1
30 Right Side Plate Sub-Assy 01302743 01302743 2
31 Front Side Plate 01314211 01314211 1
32 Electronic Expansion Valve Coil 4304000101 4304000101 1
33 Filter Sub-Assy 11120012 11120012 2
34 Electronic Expansion Valve 07334282 07334282 1
35 Check Valve 07334200 07334200 1
To Next Page
