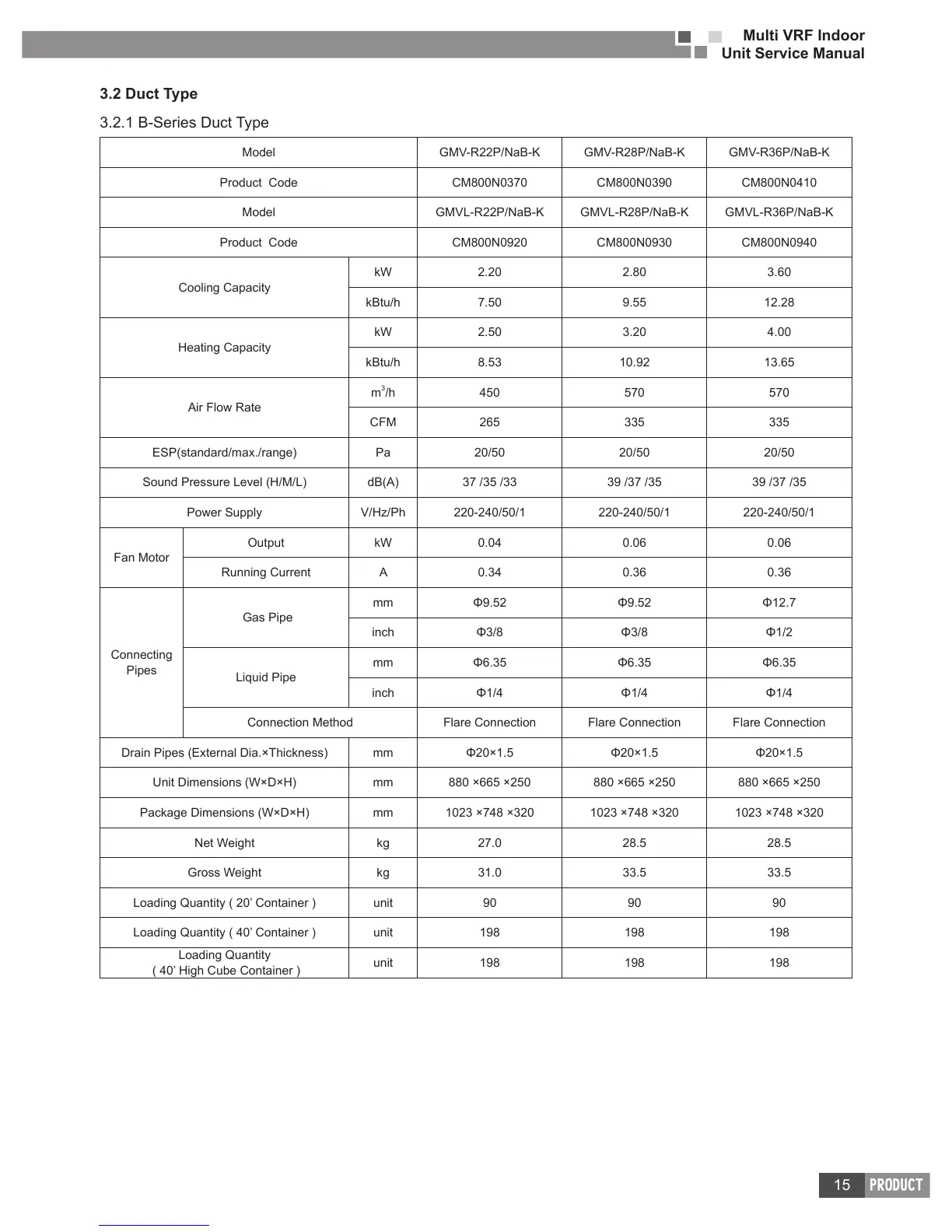

3.2.1 B-Series Duct Type
Model GMV-R22P/NaB-K GMV-R28P/NaB-K GMV-R36P/NaB-K
Product Code CM800N0370 CM800N0390 CM800N0410
Model GMVL-R22P/NaB-K GMVL-R28P/NaB-K GMVL-R36P/NaB-K
Product Code CM800N0920 CM800N0930 CM800N0940
Cooling Capacity
kW 2.20 2.80 3.60
kBtu/h 7.50 9.55 12.28
Heating Capacity
kW 2.50 3.20 4.00
kBtu/h 8.53 10.92 13.65
Air Flow Rate
m
3
/h 450 570 570
CFM 265 335 335
ESP(standard/max./range) Pa 20/50 20/50 20/50
Sound Pressure Level (H/M/L) dB(A) 37 /35 /33 39 /37 /35 39 /37 /35
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.04 0.06 0.06
Running Current A 0.34 0.36 0.36
Connecting
Pipes
Gas Pipe
mm   
inch   
Liquid Pipe
mm   
inch   
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm   
Unit Dimensions (W×D×H) mm 880 ×665 ×250 880 ×665 ×250 880 ×665 ×250
Package Dimensions (W×D×H) mm 1023 ×748 ×320 1023 ×748 ×320 1023 ×748 ×320
Net Weight kg 27.0 28.5 28.5
Gross Weight kg 31.0 33.5 33.5
Loading Quantity ( 20’ Container ) unit 90 90 90
Loading Quantity ( 40’ Container ) unit 198 198 198
Loading Quantity
( 40’ High Cube Container )
unit 198 198 198
