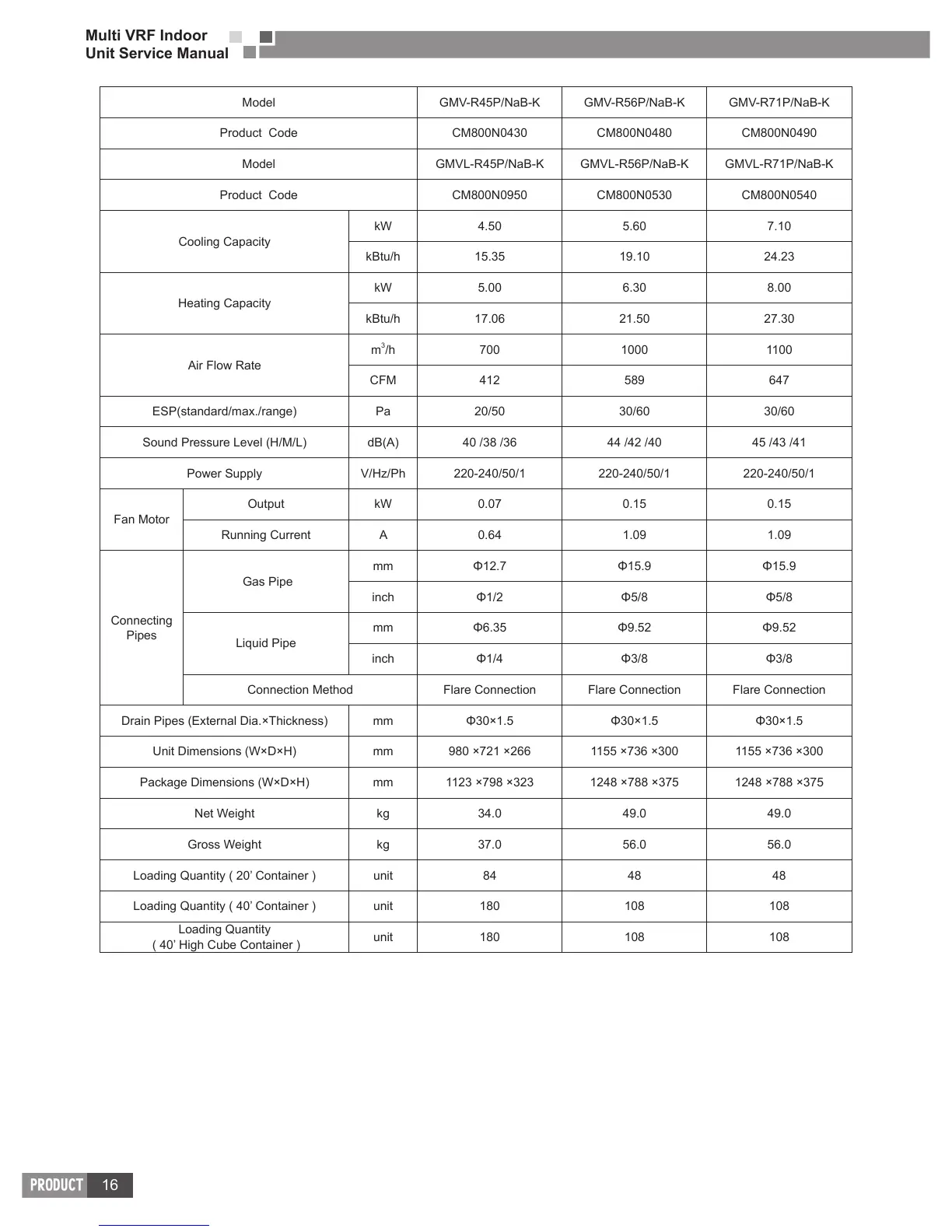

Gree GMV-R series

16
Multi VRF Indoor
Unit Service Manual
PRODUCT
Model GMV-R45P/NaB-K GMV-R56P/NaB-K GMV-R71P/NaB-K
Product Code CM800N0430 CM800N0480 CM800N0490
Model GMVL-R45P/NaB-K GMVL-R56P/NaB-K GMVL-R71P/NaB-K
Product Code CM800N0950 CM800N0530 CM800N0540
Cooling Capacity
kW 4.50 5.60 7.10
kBtu/h 15.35 19.10 24.23
Heating Capacity
kW 5.00 6.30 8.00
kBtu/h 17.06 21.50 27.30
Air Flow Rate
m
3
/h 700 1000 1100
CFM 412 589 647
ESP(standard/max./range) Pa 20/50 30/60 30/60
Sound Pressure Level (H/M/L) dB(A) 40 /38 /36 44 /42 /40 45 /43 /41
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.07 0.15 0.15
Running Current A 0.64 1.09 1.09
Connecting
Pipes
Gas Pipe
mm   
inch   
Liquid Pipe
mm   
inch   
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm   
Unit Dimensions (W×D×H) mm 980 ×721 ×266 1155 ×736 ×300 1155 ×736 ×300
Package Dimensions (W×D×H) mm 1123 ×798 ×323 1248 ×788 ×375 1248 ×788 ×375
Net Weight kg 34.0 49.0 49.0
Gross Weight kg 37.0 56.0 56.0
Loading Quantity ( 20’ Container ) unit 84 48 48
Loading Quantity ( 40’ Container ) unit 180 108 108
Loading Quantity
( 40’ High Cube Container )
unit 180 108 108
