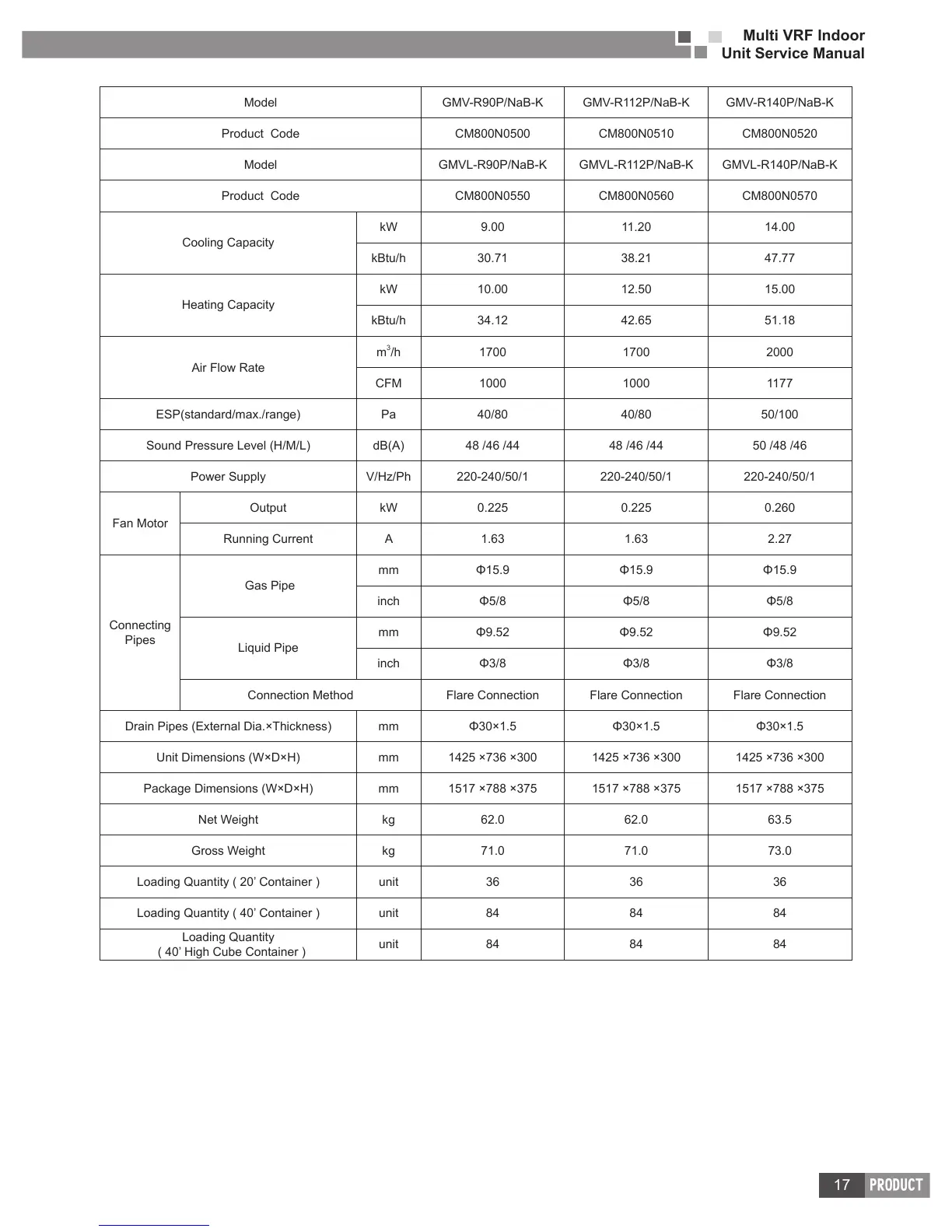

Multi VRF Indoor
Unit Service Manual
17
PRODUCT
Model GMV-R90P/NaB-K GMV-R112P/NaB-K GMV-R140P/NaB-K
Product Code CM800N0500 CM800N0510 CM800N0520
Model GMVL-R90P/NaB-K GMVL-R112P/NaB-K GMVL-R140P/NaB-K
Product Code CM800N0550 CM800N0560 CM800N0570
Cooling Capacity
kW 9.00 11.20 14.00
kBtu/h 30.71 38.21 47.77
Heating Capacity
kW 10.00 12.50 15.00
kBtu/h 34.12 42.65 51.18
Air Flow Rate
m
3
/h 1700 1700 2000
CFM 1000 1000 1177
ESP(standard/max./range) Pa 40/80 40/80 50/100
Sound Pressure Level (H/M/L) dB(A) 48 /46 /44 48 /46 /44 50 /48 /46
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.225 0.225 0.260
Running Current A 1.63 1.63 2.27
Connecting
Pipes
Gas Pipe
mm
inch
Liquid Pipe
mm
inch
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm
Unit Dimensions (W×D×H) mm 1425 ×736 ×300 1425 ×736 ×300 1425 ×736 ×300
Package Dimensions (W×D×H) mm 1517 ×788 ×375 1517 ×788 ×375 1517 ×788 ×375
Net Weight kg 62.0 62.0 63.5
Gross Weight kg 71.0 71.0 73.0
Loading Quantity ( 20’ Container ) unit 36 36 36
Loading Quantity ( 40’ Container ) unit 84 84 84
Loading Quantity
( 40’ High Cube Container )
unit 84 84 84
