18

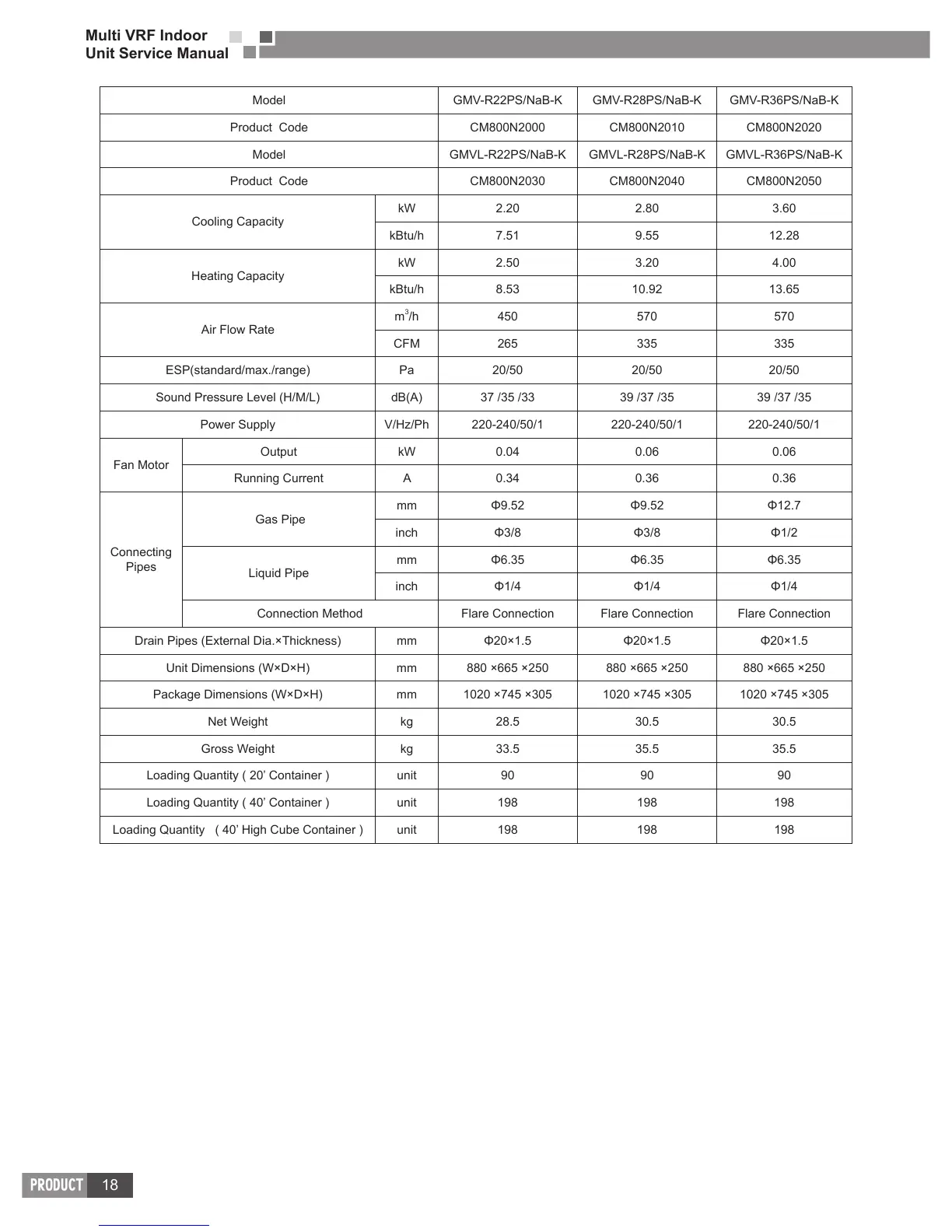

Multi VRF Indoor
Unit Service Manual
PRODUCT
Model GMV-R22PS/NaB-K GMV-R28PS/NaB-K GMV-R36PS/NaB-K
Product Code CM800N2000 CM800N2010 CM800N2020
Model GMVL-R22PS/NaB-K GMVL-R28PS/NaB-K GMVL-R36PS/NaB-K
Product Code CM800N2030 CM800N2040 CM800N2050
Cooling Capacity
kW 2.20 2.80 3.60
kBtu/h 7.51 9.55 12.28
Heating Capacity
kW 2.50 3.20 4.00
kBtu/h 8.53 10.92 13.65
Air Flow Rate
m
3
/h 450 570 570
CFM 265 335 335
ESP(standard/max./range) Pa 20/50 20/50 20/50
Sound Pressure Level (H/M/L) dB(A) 37 /35 /33 39 /37 /35 39 /37 /35
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.04 0.06 0.06
Running Current A 0.34 0.36 0.36
Connecting
Pipes
Gas Pipe
mm
inch
Liquid Pipe
mm
inch
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm
Unit Dimensions (W×D×H) mm 880 ×665 ×250 880 ×665 ×250 880 ×665 ×250
Package Dimensions (W×D×H) mm 1020 ×745 ×305 1020 ×745 ×305 1020 ×745 ×305
Net Weight kg 28.5 30.5 30.5
Gross Weight kg 33.5 35.5 35.5
Loading Quantity ( 20’ Container ) unit 90 90 90
Loading Quantity ( 40’ Container ) unit 198 198 198
Loading Quantity ( 40’ High Cube Container ) unit 198 198 198
