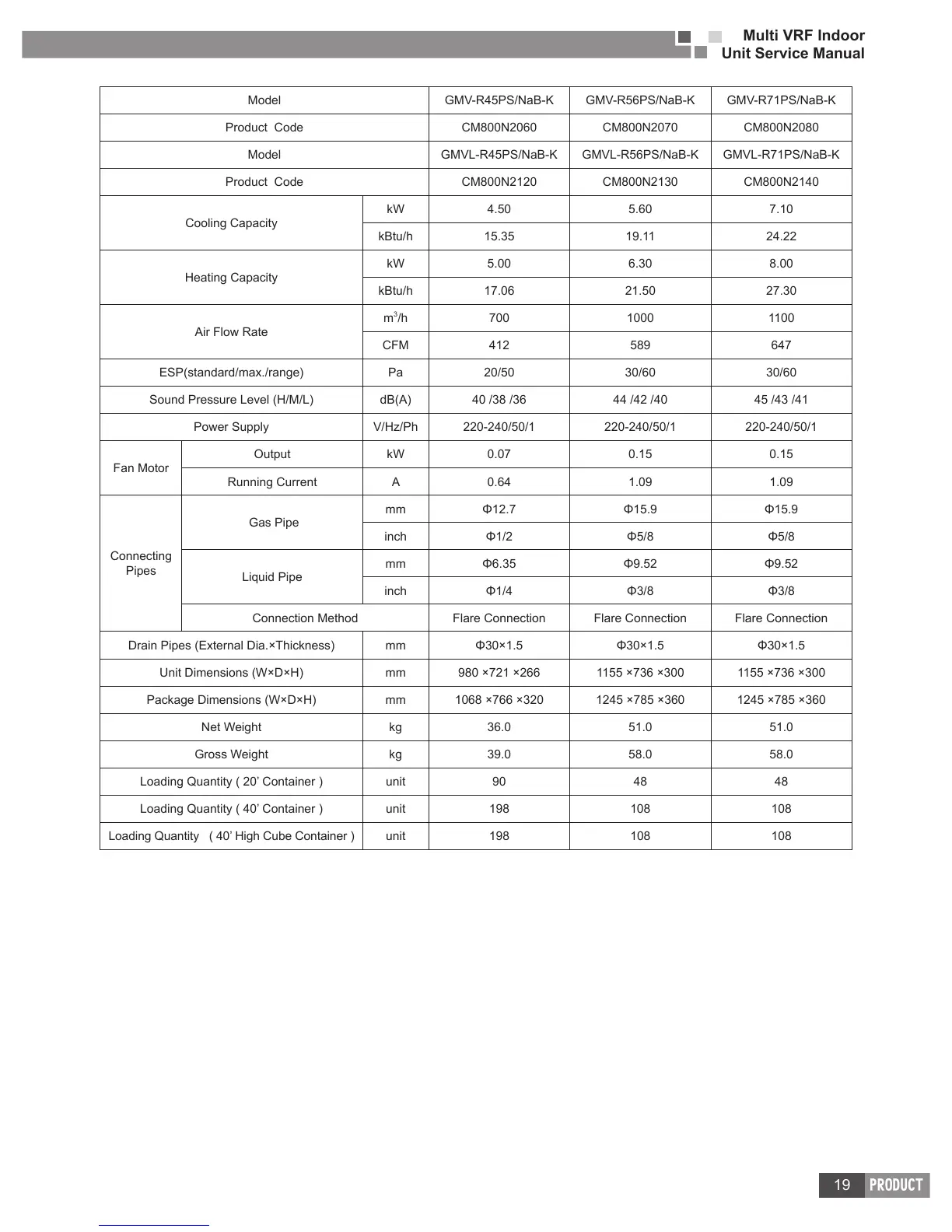

Multi VRF Indoor
Unit Service Manual
19
PRODUCT
Model GMV-R45PS/NaB-K GMV-R56PS/NaB-K GMV-R71PS/NaB-K
Product Code CM800N2060 CM800N2070 CM800N2080
Model GMVL-R45PS/NaB-K GMVL-R56PS/NaB-K GMVL-R71PS/NaB-K
Product Code CM800N2120 CM800N2130 CM800N2140
Cooling Capacity
kW 4.50 5.60 7.10
kBtu/h 15.35 19.11 24.22
Heating Capacity
kW 5.00 6.30 8.00
kBtu/h 17.06 21.50 27.30
Air Flow Rate
m
3
/h 700 1000 1100
CFM 412 589 647
ESP(standard/max./range) Pa 20/50 30/60 30/60
Sound Pressure Level (H/M/L) dB(A) 40 /38 /36 44 /42 /40 45 /43 /41
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.07 0.15 0.15
Running Current A 0.64 1.09 1.09
Connecting
Pipes
Gas Pipe
mm
inch
Liquid Pipe
mm
inch
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm
Unit Dimensions (W×D×H) mm 980 ×721 ×266 1155 ×736 ×300 1155 ×736 ×300
Package Dimensions (W×D×H) mm 1068 ×766 ×320 1245 ×785 ×360 1245 ×785 ×360
Net Weight kg 36.0 51.0 51.0
Gross Weight kg 39.0 58.0 58.0
Loading Quantity ( 20’ Container ) unit 90 48 48
Loading Quantity ( 40’ Container ) unit 198 108 108
Loading Quantity ( 40’ High Cube Container ) unit 198 108 108
