36

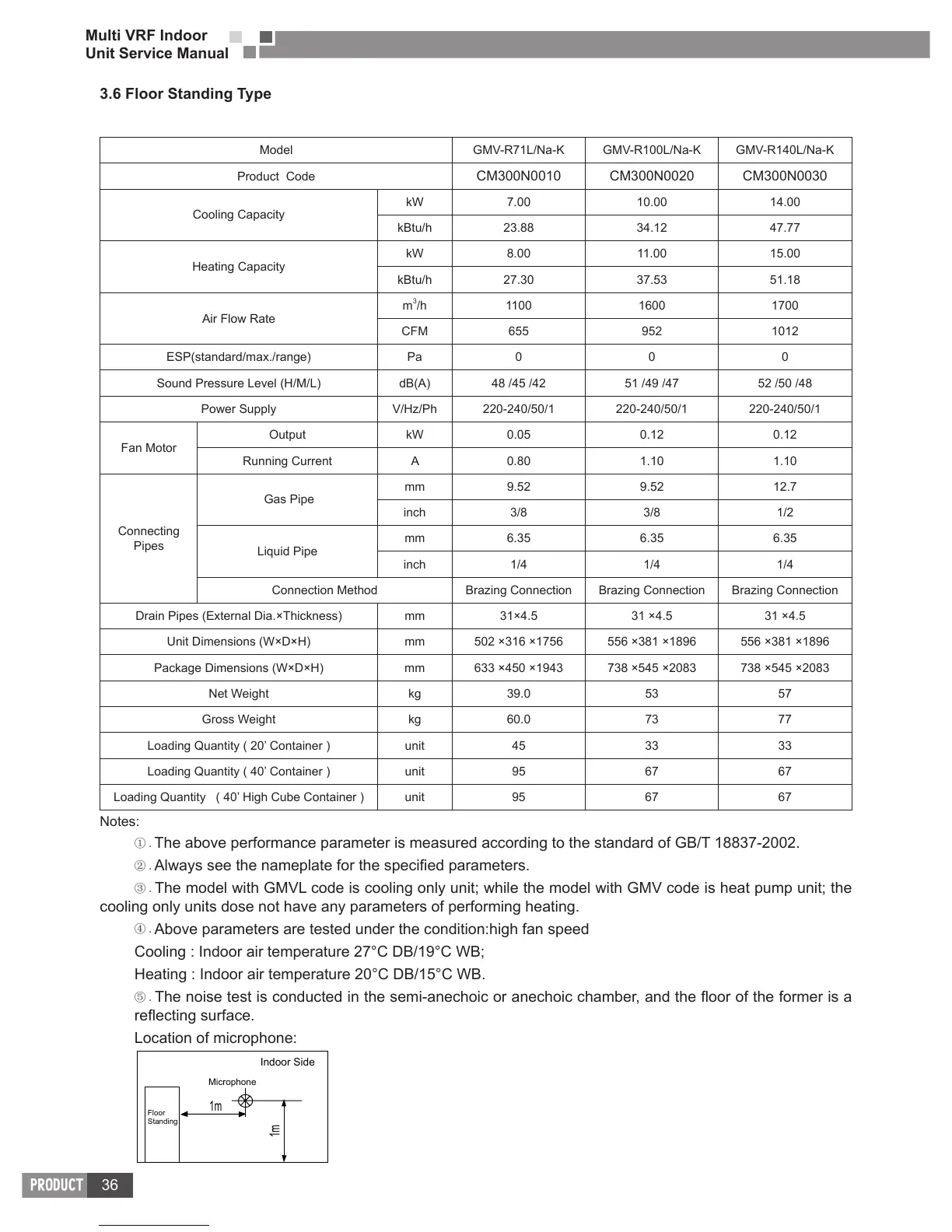

Multi VRF Indoor
Unit Service Manual
PRODUCT
3�6 Floor Standing Type
Model GMV-R71L/Na-K GMV-R100L/Na-K GMV-R140L/Na-K
Product Code
CM300N0010 CM300N0020 CM300N0030
Cooling Capacity
kW 7.00 10.00 14.00
kBtu/h 23.88 34.12 47.77
Heating Capacity
kW 8.00 11.00 15.00
kBtu/h 27.30 37.53 51.18
Air Flow Rate
m
3
/h 1100 1600 1700
CFM 655 952 1012
ESP(standard/max./range) Pa 0 0 0
Sound Pressure Level (H/M/L) dB(A) 48 /45 /42 51 /49 /47 52 /50 /48
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.05 0.12 0.12
Running Current A 0.80 1.10 1.10
Connecting
Pipes
Gas Pipe
mm 9.52 9.52 12.7
inch 3/8 3/8 1/2
Liquid Pipe
mm 6.35 6.35 6.35
inch 1/4 1/4 1/4
Connection Method Brazing Connection Brazing Connection Brazing Connection
Drain Pipes (External Dia.×Thickness) mm 31×4.5 31 ×4.5 31 ×4.5
Unit Dimensions (W×D×H) mm 502 ×316 ×1756 556 ×381 ×1896 556 ×381 ×1896
Package Dimensions (W×D×H) mm 633 ×450 ×1943 738 ×545 ×2083 738 ×545 ×2083
Net Weight kg 39.0 53 57
Gross Weight kg 60.0 73 77
Loading Quantity ( 20’ Container ) unit 45 33 33
Loading Quantity ( 40’ Container ) unit 95 67 67
Loading Quantity ( 40’ High Cube Container ) unit 95 67 67
Notes:
①.
The above performance parameter is measured according to the standard of GB/T 18837-2002.
②.
③.
The model with GMVL code is cooling only unit; while the model with GMV code is heat pump unit; the
cooling only units dose not have any parameters of performing heating.
④.
Above parameters are tested under the condition:high fan speed
Cooling : Indoor air temperature 27°C DB/19°C WB;
Heating : Indoor air temperature 20°C DB/15°C WB.
⑤ .
Location of microphone:
Indoor Side
Floor
Standing
Microphone
1m
1m
