Gree GMV-R series

Multi VRF Indoor
Unit Service Manual
107
4�5 Floor and Wall Mounted Type
Warning!Be sure to wait for a minimum of 10 minutes after turning off all power supplies before disassembly.
Steps Illustration Handling instruction

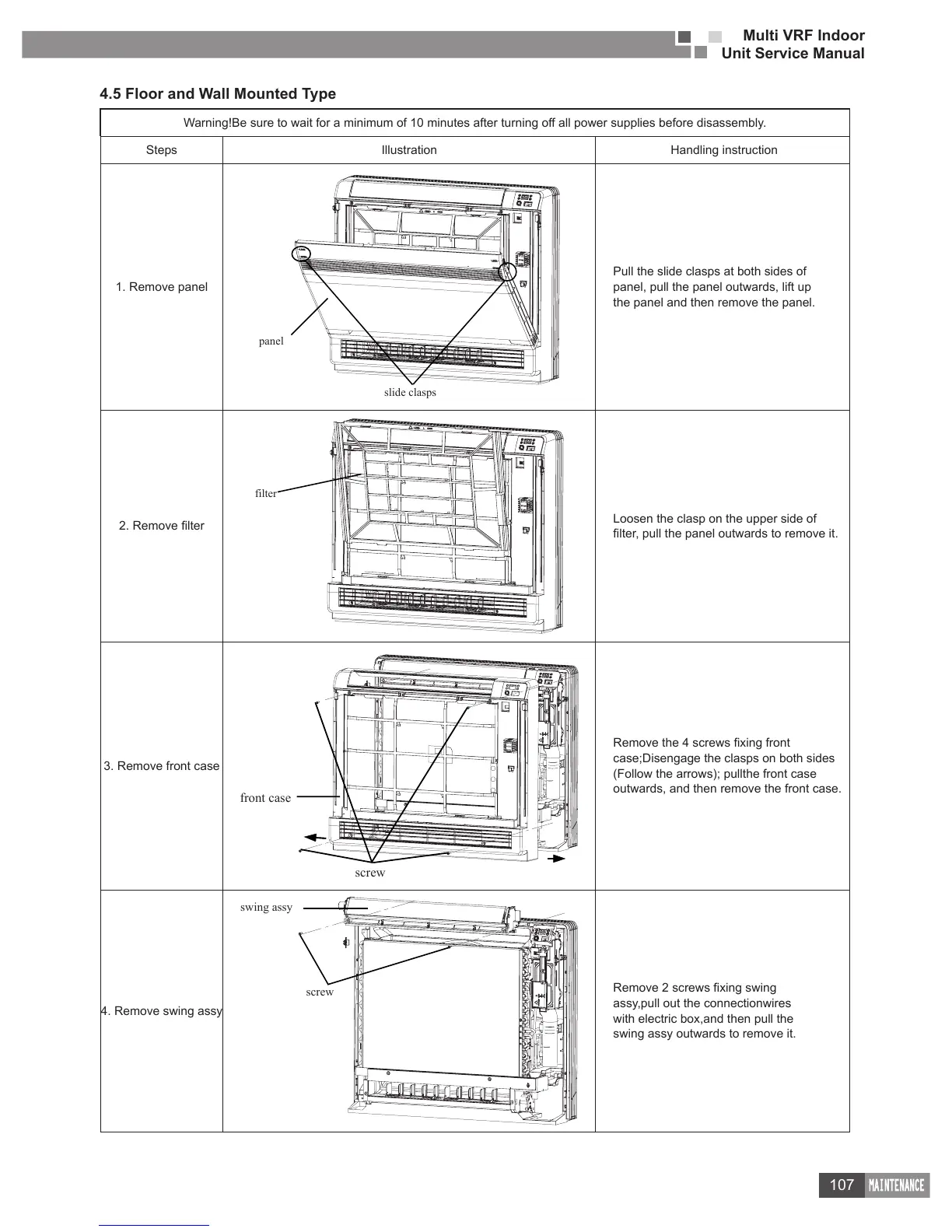

1. Remove panel
panel
slide clasps
Pull the slide clasps at both sides of
panel, pull the panel outwards, lift up
the panel and then remove the panel.

filter
Loosen the clasp on the upper side of

3. Remove front case
front case
screw

case;Disengage the clasps on both sides
(Follow the arrows); pullthe front case
outwards, and then remove the front case.
4. Remove swing assy
screw
swing assy

assy,pull out the connectionwires
with electric box,and then pull the
swing assy outwards to remove it.
