Multi VRF Indoor
Unit Service Manual
105

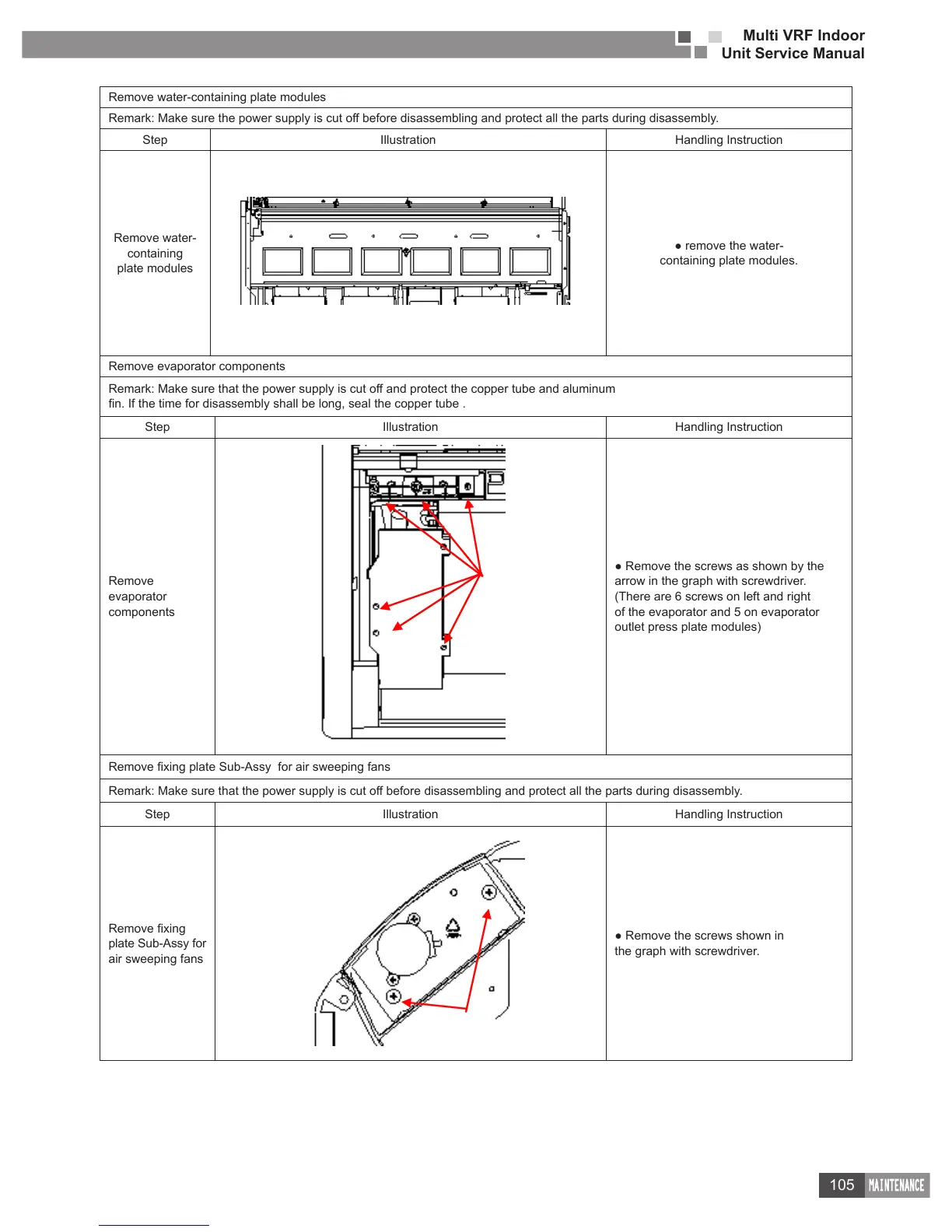

Remove water-containing plate modules
Remark: Make sure the power supply is cut off before disassembling and protect all the parts during disassembly.
Step Illustration Handling Instruction
Remove water-
containing
plate modules
containing plate modules.
Remove evaporator components
Remark: Make sure that the power supply is cut off and protect the copper tube and aluminum
Step Illustration Handling Instruction
Remove
evaporator
components
arrow in the graph with screwdriver.
(There are 6 screws on left and right
of the evaporator and 5 on evaporator
outlet press plate modules)
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts during disassembly.
Step Illustration Handling Instruction
plate Sub-Assy for
air sweeping fans
the graph with screwdriver.
To Next Page
