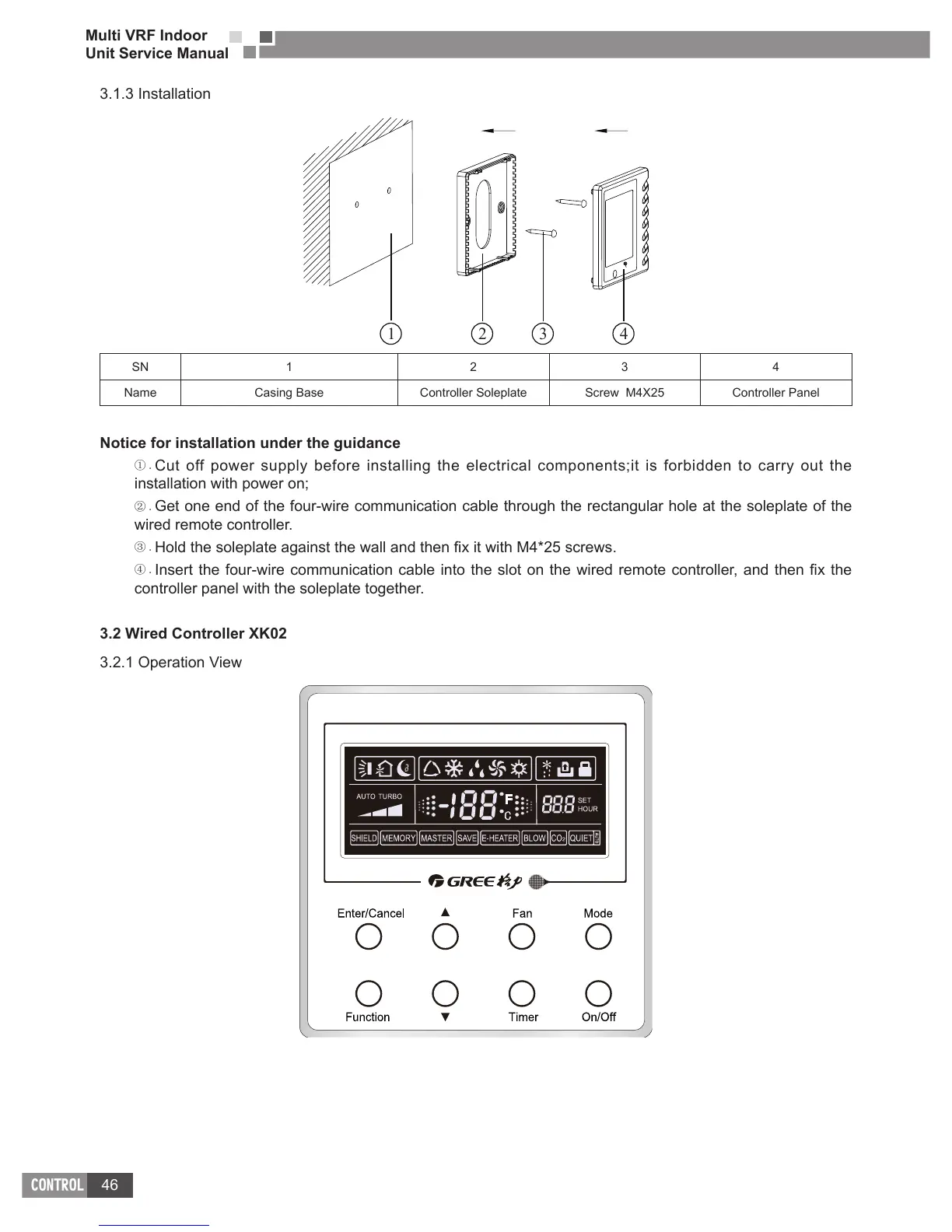

3.1.3 Installation
1 3 42
SN 1 2 3 4
Name Casing Base Controller Soleplate Screw M4X25 Controller Panel
Notice for installation under the guidance
① .
Cut off power supply before installing the electrical components;it is forbidden to carry out the
installation with power on;
② .
Get one end of the four-wire communication cable through the rectangular hole at the soleplate of the
wired remote controller.
③ .
④ .
controller panel with the soleplate together.
3�2 Wired Controller XK02
3.2.1 Operation View
