Multi VRF Indoor
Unit Service Manual
53

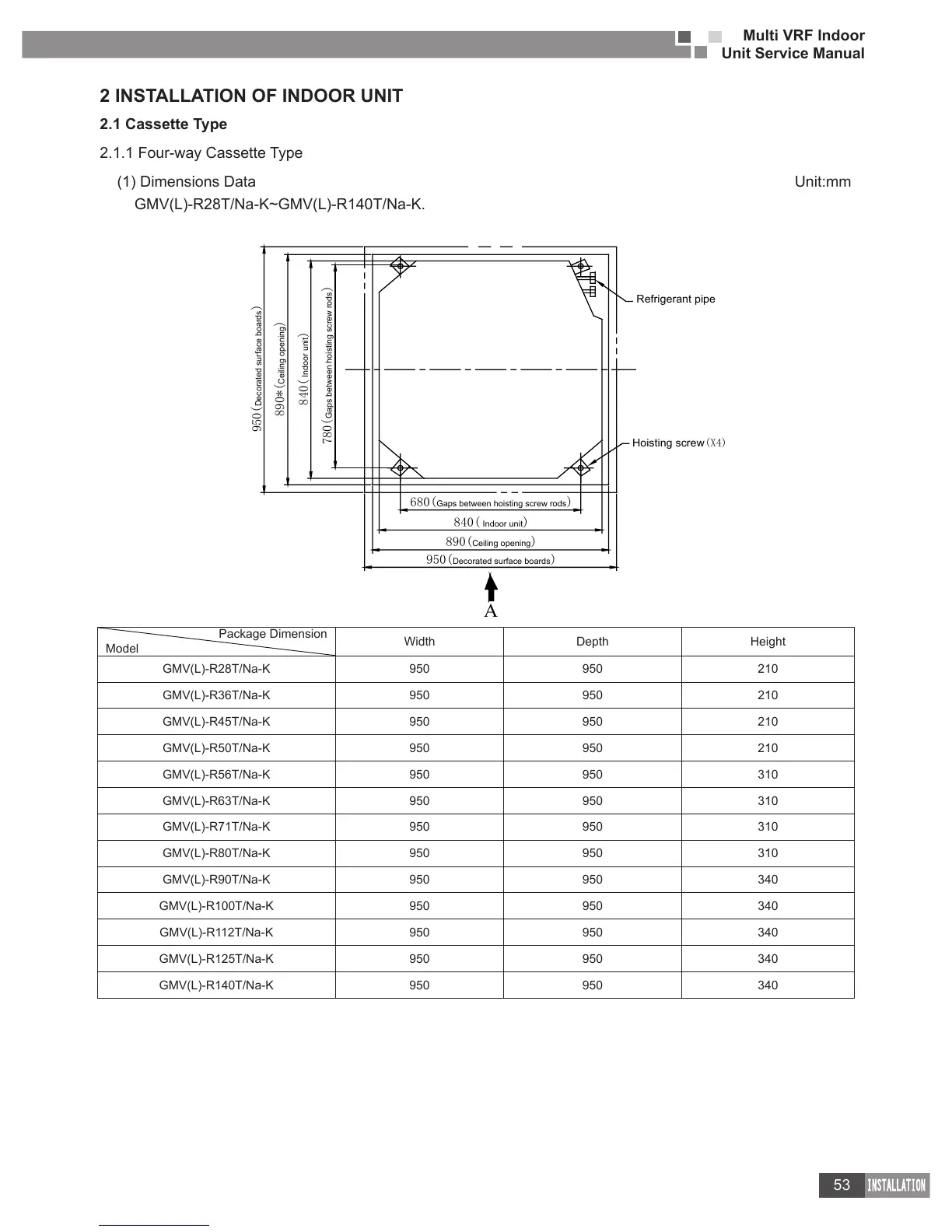

2 INSTALLATION OF INDOOR UNIT
2�1 Cassette Type
2.1.1 Four-way Cassette Type
(1) Dimensions Data Unit:mm
GMV(L)-R28T/Na-K~GMV(L)-R140T/Na-K.
780(
Gaps between hoisting screw rods
)
840(
Indoor unit
)
890*(
Ceiling opening
)
950(
Decorated surface boards
)
950(
Decorated surface boards
)
890(
Ceiling opening
)
840(
Indoor unit
)
680(
Gaps between hoisting screw rods
)
A
Hoisting screw (X4)
Refrigerant pipe
Package Dimension
Model
Width Depth Height
GMV(L)-R28T/Na-K 950 950 210
GMV(L)-R36T/Na-K 950 950 210
GMV(L)-R45T/Na-K 950 950 210
GMV(L)-R50T/Na-K 950 950 210
GMV(L)-R56T/Na-K 950 950 310
GMV(L)-R63T/Na-K 950 950 310
GMV(L)-R71T/Na-K 950 950 310
GMV(L)-R80T/Na-K 950 950 310
GMV(L)-R90T/Na-K 950 950 340
GMV(L)-R100T/Na-K 950 950 340
GMV(L)-R112T/Na-K 950 950 340
GMV(L)-R125T/Na-K 950 950 340
GMV(L)-R140T/Na-K 950 950 340
