Multi VRF Indoor
Unit Service Manual
45
CONTROL
10
11
12
13
14
15
16
9
1
2
3
4
5
6
7
8
ROOM TEMP
SWING
SET TEMP
MELT
SWING

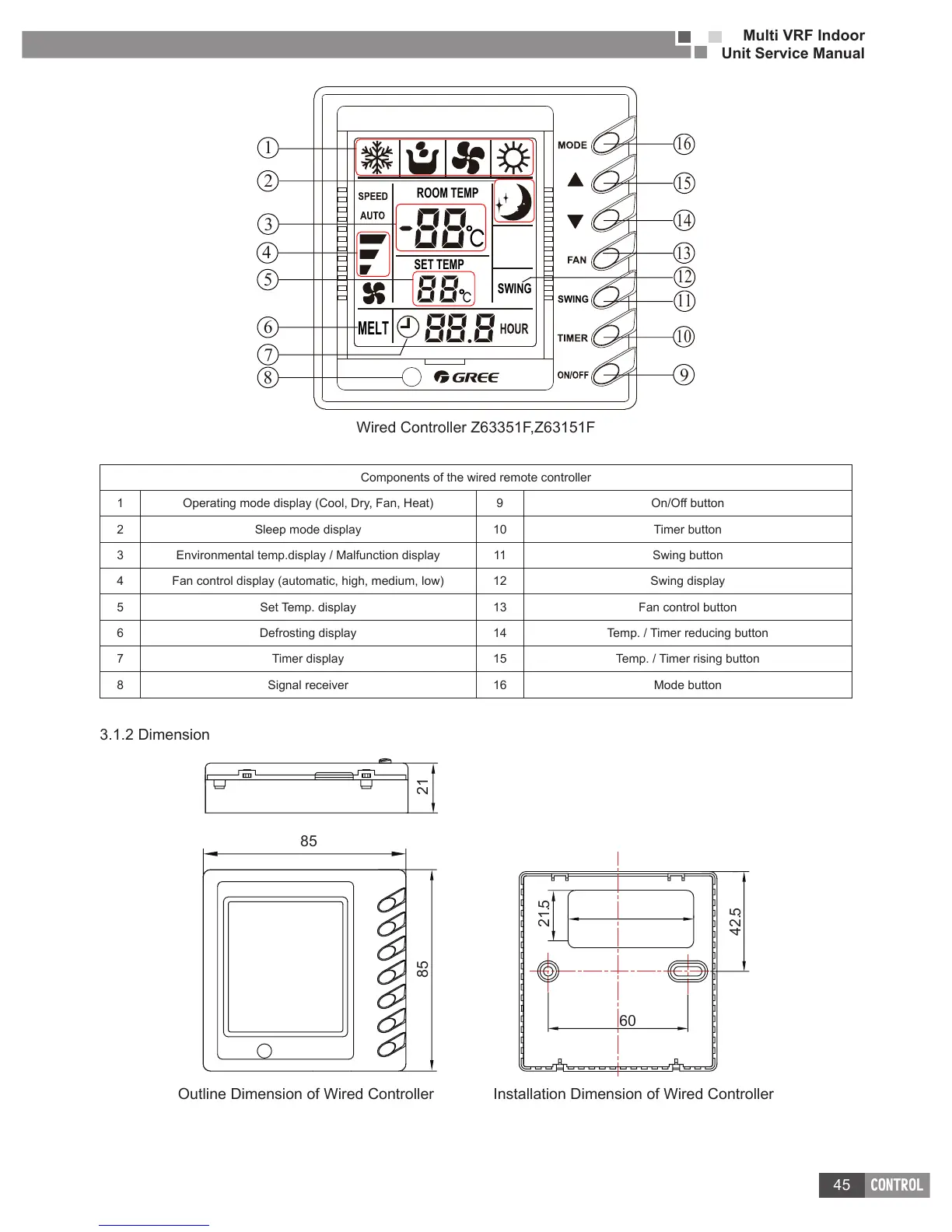

Wired Controller Z63351F,Z63151F
Components of the wired remote controller
1 Operating mode display (Cool, Dry, Fan, Heat) 9 On/Off button
2 Sleep mode display 10 Timer button
3 Environmental temp.display / Malfunction display 11 Swing button
4 Fan control display (automatic, high, medium, low) 12 Swing display
5 Set Temp. display 13 Fan control button
6 Defrosting display 14 Temp. / Timer reducing button
7 Timer display 15 Temp. / Timer rising button
8 Signal receiver 16 Mode button
3.1.2 Dimension
85
60
85 21
42.5
21.5
Outline Dimension of Wired Controller Installation Dimension of Wired Controller
