108
Multi VRF Indoor
Unit Service Manual
Warning!Be sure to wait for a minimum of 10 minutes after turning off all power supplies before disassembly.

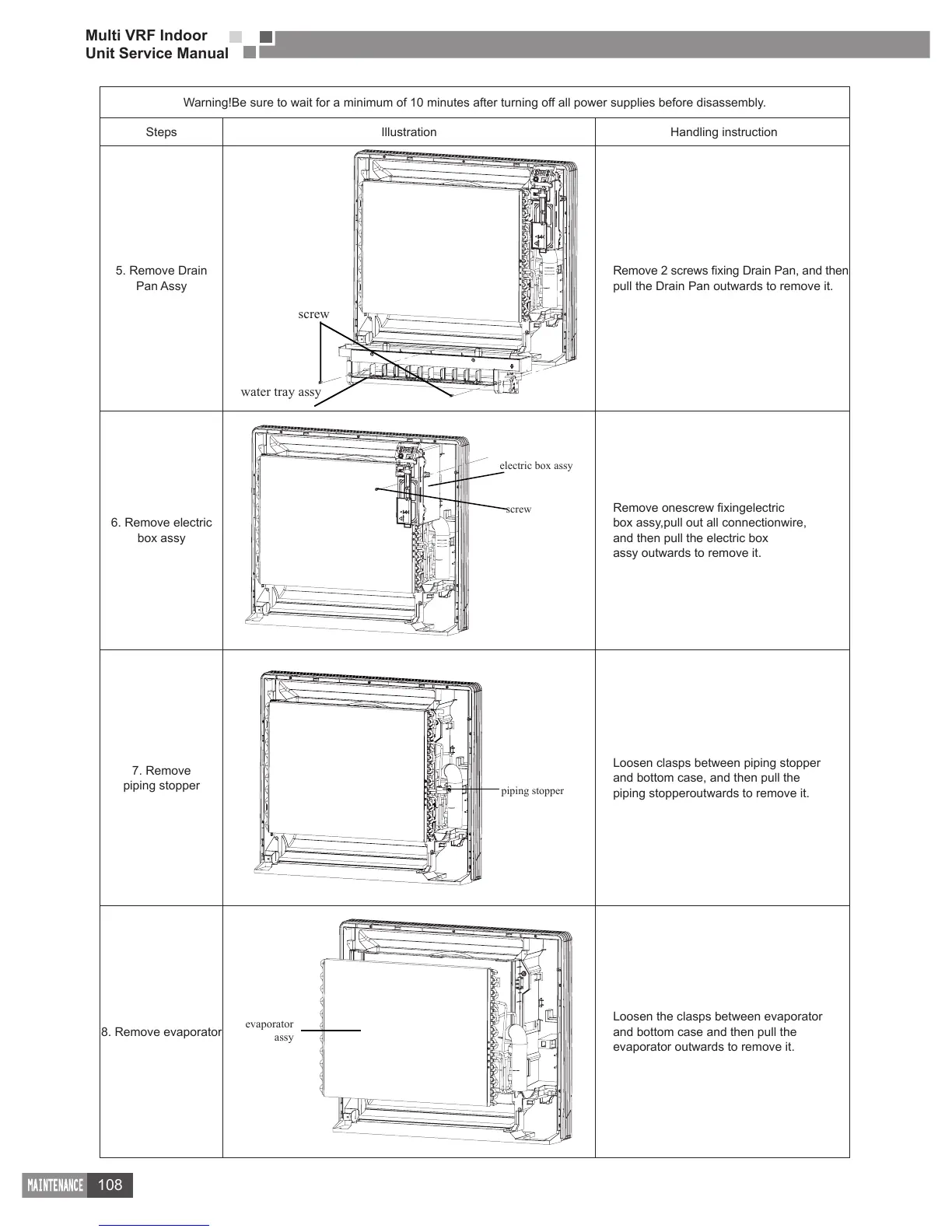

Steps Illustration Handling instruction
5. Remove Drain
Pan Assy
screw
water tray assy
pull the Drain Pan outwards to remove it.
6. Remove electric
box assy
screw
electric box assy
box assy,pull out all connectionwire,
and then pull the electric box
assy outwards to remove it.
7. Remove
piping stopper
piping stopper
Loosen clasps between piping stopper
and bottom case, and then pull the
piping stopperoutwards to remove it.
8. Remove evaporator
evaporator
assy
Loosen the clasps between evaporator
and bottom case and then pull the
evaporator outwards to remove it.
To Next Page
