Multi VRF Indoor
Unit Service Manual
109
Warning!Be sure to wait for a minimum of 10 minutes after turning off all power supplies before disassembly.

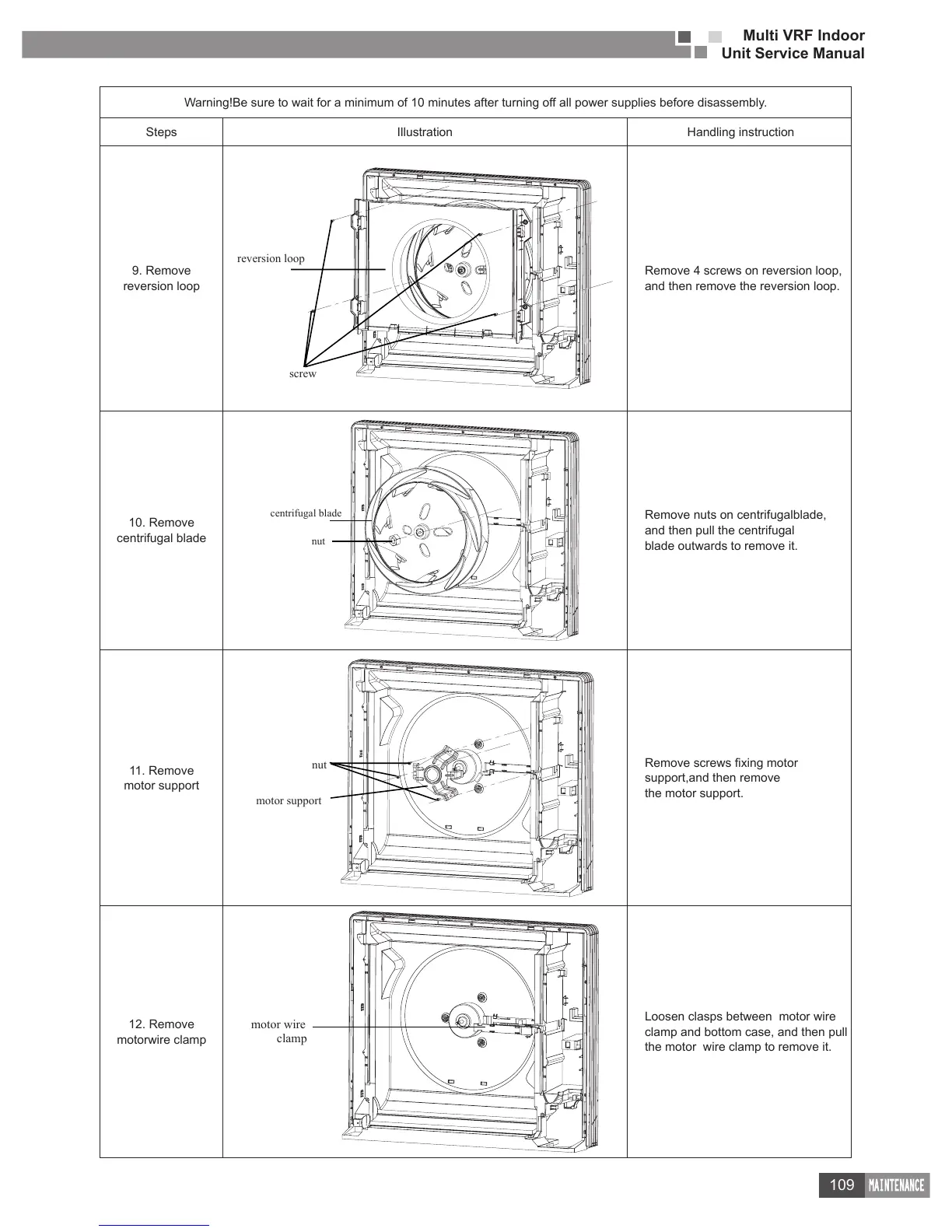

Steps Illustration Handling instruction
9. Remove
reversion loop
screw
reversion loop
Remove 4 screws on reversion loop,
and then remove the reversion loop.
10. Remove
centrifugal blade
centrifugal blade
nut
Remove nuts on centrifugalblade,
and then pull the centrifugal
blade outwards to remove it.
11. Remove
motor support
nut
motor support
support,and then remove
the motor support.
12. Remove
motorwire clamp
motor wire
clamp
Loosen clasps between motor wire
clamp and bottom case, and then pull
the motor wire clamp to remove it.
