Gree GMV-R series

14
Multi VRF Indoor
Unit Service Manual
PRODUCT

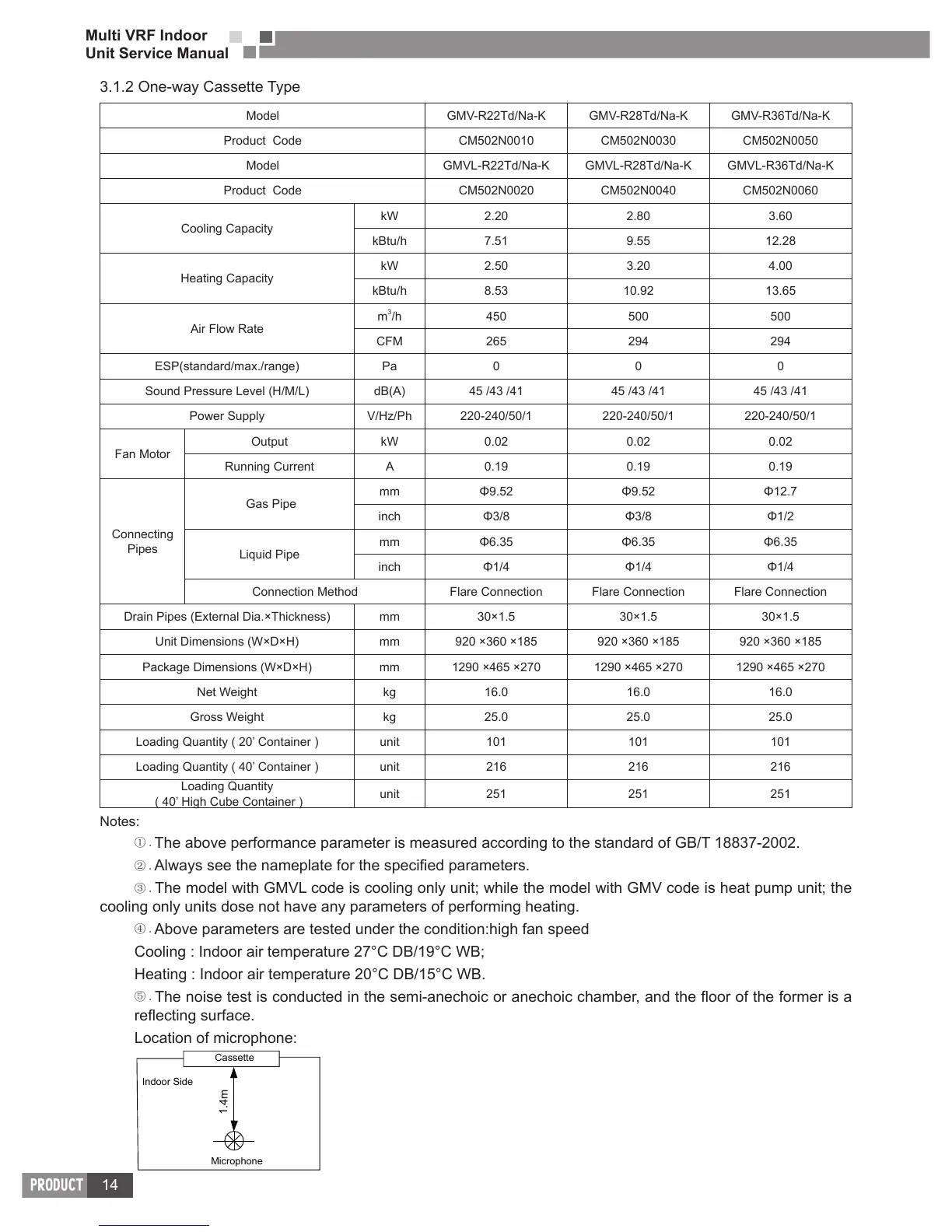

3.1.2 One-way Cassette Type
Model GMV-R22Td/Na-K GMV-R28Td/Na-K GMV-R36Td/Na-K
Product Code CM502N0010 CM502N0030 CM502N0050
Model GMVL-R22Td/Na-K GMVL-R28Td/Na-K GMVL-R36Td/Na-K
Product Code CM502N0020 CM502N0040 CM502N0060
Cooling Capacity
kW 2.20 2.80 3.60
kBtu/h 7.51 9.55 12.28
Heating Capacity
kW 2.50 3.20 4.00
kBtu/h 8.53 10.92 13.65
Air Flow Rate
m
3
/h 450 500 500
CFM 265 294 294
ESP(standard/max./range) Pa 0 0 0
Sound Pressure Level (H/M/L) dB(A) 45 /43 /41 45 /43 /41 45 /43 /41
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.02 0.02 0.02
Running Current A 0.19 0.19 0.19
Connecting
Pipes
Gas Pipe
mm   
inch   
Liquid Pipe
mm   
inch   
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm 30×1.5 30×1.5 30×1.5
Unit Dimensions (W×D×H) mm 920 ×360 ×185 920 ×360 ×185 920 ×360 ×185
Package Dimensions (W×D×H) mm 1290 ×465 ×270 1290 ×465 ×270 1290 ×465 ×270
Net Weight kg 16.0 16.0 16.0
Gross Weight kg 25.0 25.0 25.0
Loading Quantity ( 20’ Container ) unit 101 101 101
Loading Quantity ( 40’ Container ) unit 216 216 216
Loading Quantity
( 40’ High Cube Container )
unit 251 251 251
Notes:
①.
The above performance parameter is measured according to the standard of GB/T 18837-2002.
②.

③.
The model with GMVL code is cooling only unit; while the model with GMV code is heat pump unit; the
cooling only units dose not have any parameters of performing heating.
④.
Above parameters are tested under the condition:high fan speed
Cooling : Indoor air temperature 27°C DB/19°C WB;
Heating : Indoor air temperature 20°C DB/15°C WB.
⑤ .


Location of microphone:

1.4m
Microphone
Indoor Side
Cassette
