134

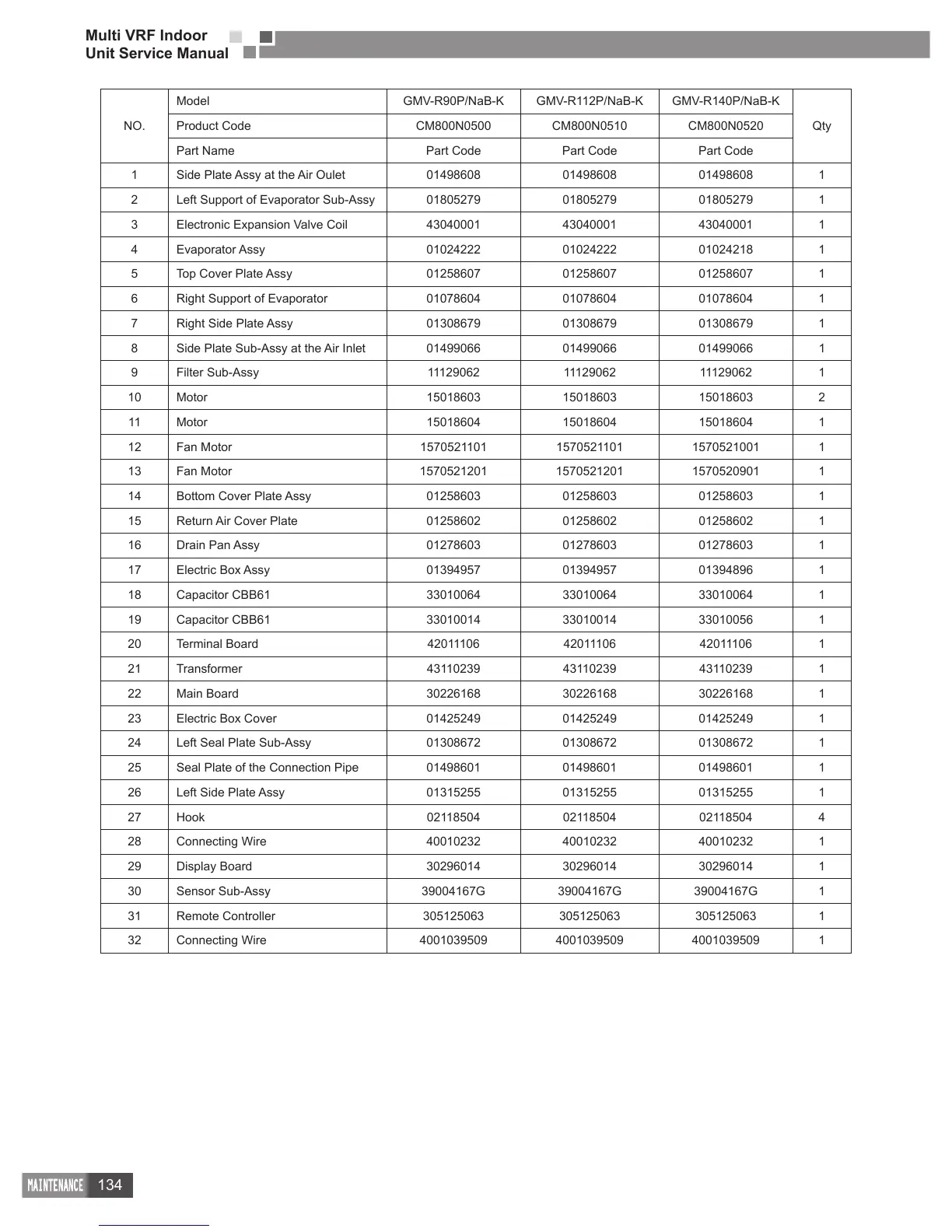

Multi VRF Indoor

Unit Service Manual

NO.

Model GMV-R90P/NaB-K GMV-R112P/NaB-K GMV-R140P/NaB-K

QtyProduct Code CM800N0500 CM800N0510 CM800N0520

Part Name Part Code Part Code Part Code

1 Side Plate Assy at the Air Oulet 01498608 01498608 01498608 1

2 Left Support of Evaporator Sub-Assy 01805279 01805279 01805279 1

3 Electronic Expansion Valve Coil 43040001 43040001 43040001 1

4 Evaporator Assy 01024222 01024222 01024218 1

5 Top Cover Plate Assy 01258607 01258607 01258607 1

6 Right Support of Evaporator 01078604 01078604 01078604 1

7 Right Side Plate Assy 01308679 01308679 01308679 1

8 Side Plate Sub-Assy at the Air Inlet 01499066 01499066 01499066 1

9 Filter Sub-Assy 11129062 11129062 11129062 1

10 Motor 15018603 15018603 15018603 2

11 Motor 15018604 15018604 15018604 1

12 Fan Motor 1570521101 1570521101 1570521001 1

13 Fan Motor 1570521201 1570521201 1570520901 1

14 Bottom Cover Plate Assy 01258603 01258603 01258603 1

15 Return Air Cover Plate 01258602 01258602 01258602 1

16 Drain Pan Assy 01278603 01278603 01278603 1

17 Electric Box Assy 01394957 01394957 01394896 1

18 Capacitor CBB61 33010064 33010064 33010064 1

19 Capacitor CBB61 33010014 33010014 33010056 1

20 Terminal Board 42011106 42011106 42011106 1

21 Transformer 43110239 43110239 43110239 1

22 Main Board 30226168 30226168 30226168 1

23 Electric Box Cover 01425249 01425249 01425249 1

24 Left Seal Plate Sub-Assy 01308672 01308672 01308672 1

25 Seal Plate of the Connection Pipe 01498601 01498601 01498601 1

26 Left Side Plate Assy 01315255 01315255 01315255 1

27 Hook 02118504 02118504 02118504 4

28 Connecting Wire 40010232 40010232 40010232 1

29 Display Board 30296014 30296014 30296014 1

30 Sensor Sub-Assy 39004167G 39004167G 39004167G 1

31 Remote Controller 305125063 305125063 305125063 1

32 Connecting Wire 4001039509 4001039509 4001039509 1
