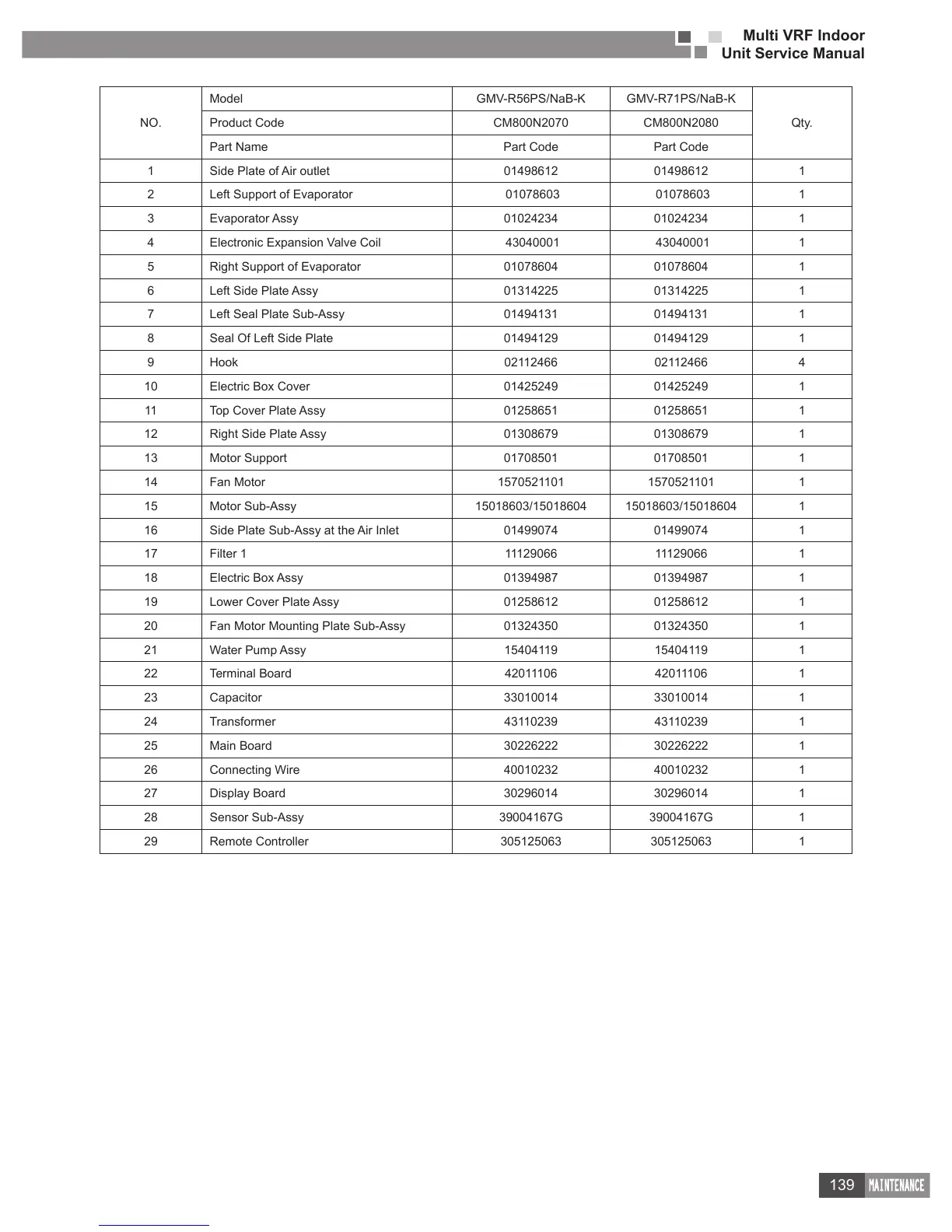

Multi VRF Indoor

Unit Service Manual

139

NO.

Model GMV-R56PS/NaB-K GMV-R71PS/NaB-K

Qty.Product Code CM800N2070 CM800N2080

Part Name Part Code Part Code

1 Side Plate of Air outlet 01498612 01498612 1

2 Left Support of Evaporator 01078603 01078603 1

3 Evaporator Assy 01024234 01024234 1

4 Electronic Expansion Valve Coil 43040001 43040001 1

5 Right Support of Evaporator 01078604 01078604 1

6 Left Side Plate Assy 01314225 01314225 1

7 Left Seal Plate Sub-Assy 01494131 01494131 1

8 Seal Of Left Side Plate 01494129 01494129 1

9 Hook 02112466 02112466 4

10 Electric Box Cover 01425249 01425249 1

11 Top Cover Plate Assy 01258651 01258651 1

12 Right Side Plate Assy 01308679 01308679 1

13 Motor Support 01708501 01708501 1

14 Fan Motor 1570521101 1570521101 1

15 Motor Sub-Assy 15018603/15018604 15018603/15018604 1

16 Side Plate Sub-Assy at the Air Inlet 01499074 01499074 1

17 Filter 1 11129066 11129066 1

18 Electric Box Assy 01394987 01394987 1

19 Lower Cover Plate Assy 01258612 01258612 1

20 Fan Motor Mounting Plate Sub-Assy 01324350 01324350 1

21 Water Pump Assy 15404119 15404119 1

22 Terminal Board 42011106 42011106 1

23 Capacitor 33010014 33010014 1

24 Transformer 43110239 43110239 1

25 Main Board 30226222 30226222 1

26 Connecting Wire 40010232 40010232 1

27 Display Board 30296014 30296014 1

28 Sensor Sub-Assy 39004167G 39004167G 1

29 Remote Controller 305125063 305125063 1
