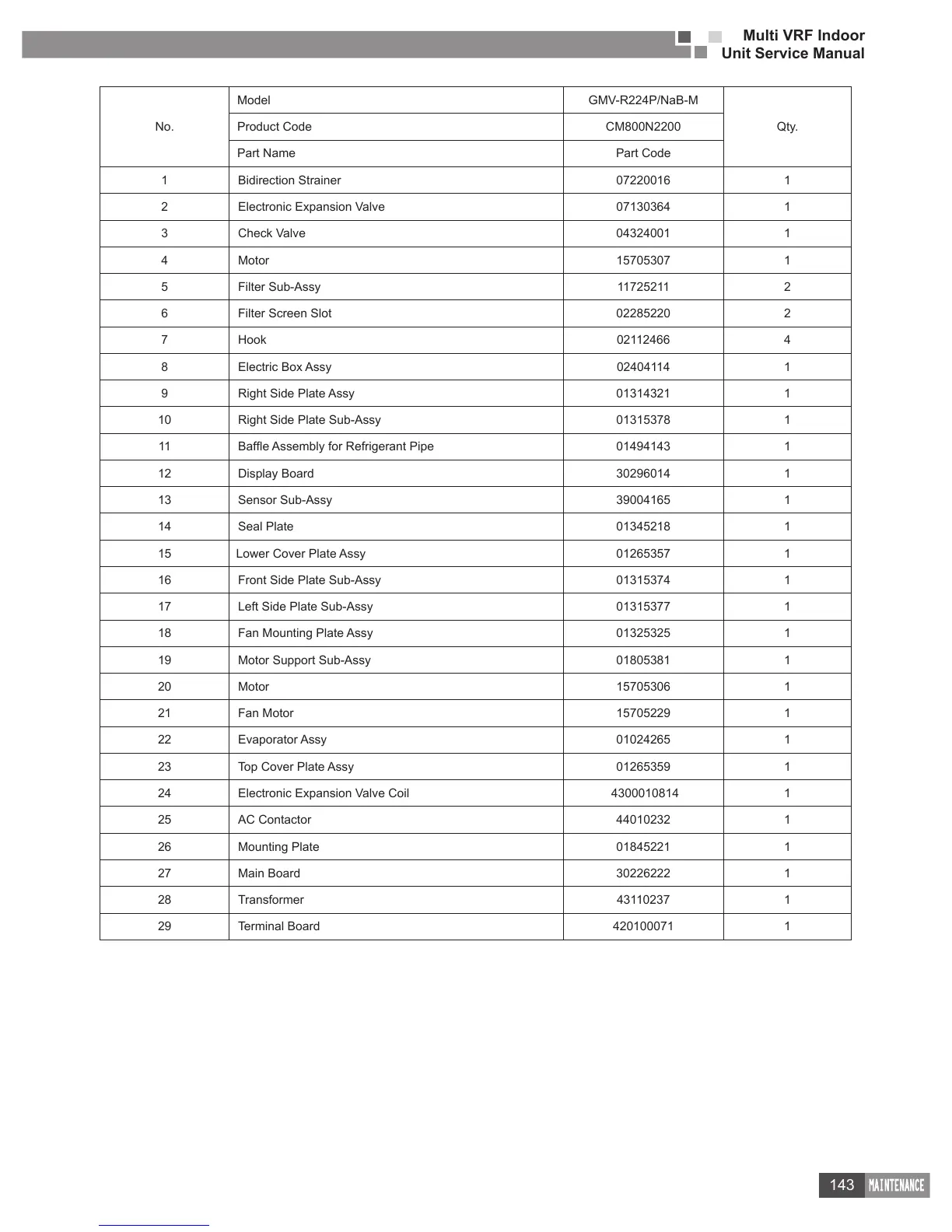

Multi VRF Indoor
Unit Service Manual
143
No.
Model GMV-R224P/NaB-M
Qty.Product Code CM800N2200
Part Name Part Code
1 Bidirection Strainer 07220016 1
2 Electronic Expansion Valve 07130364 1
3 Check Valve 04324001 1
4 Motor 15705307 1
5 Filter Sub-Assy 11725211 2
6 Filter Screen Slot 02285220 2
7 Hook 02112466 4
8 Electric Box Assy 02404114 1
9 Right Side Plate Assy 01314321 1
10 Right Side Plate Sub-Assy 01315378 1
11 01494143 1
12 Display Board 30296014 1
13 Sensor Sub-Assy 39004165 1
14 Seal Plate 01345218 1
15 Lower Cover Plate Assy 01265357 1
16 Front Side Plate Sub-Assy 01315374 1
17 Left Side Plate Sub-Assy 01315377 1
18 Fan Mounting Plate Assy 01325325 1
19 Motor Support Sub-Assy 01805381 1
20 Motor 15705306 1
21 Fan Motor 15705229 1
22 Evaporator Assy 01024265 1
23 Top Cover Plate Assy 01265359 1
24 Electronic Expansion Valve Coil 4300010814 1
25 AC Contactor 44010232 1
26 Mounting Plate 01845221 1
27 Main Board 30226222 1
28 Transformer 43110237 1
29 Terminal Board 420100071 1
To Next Page
