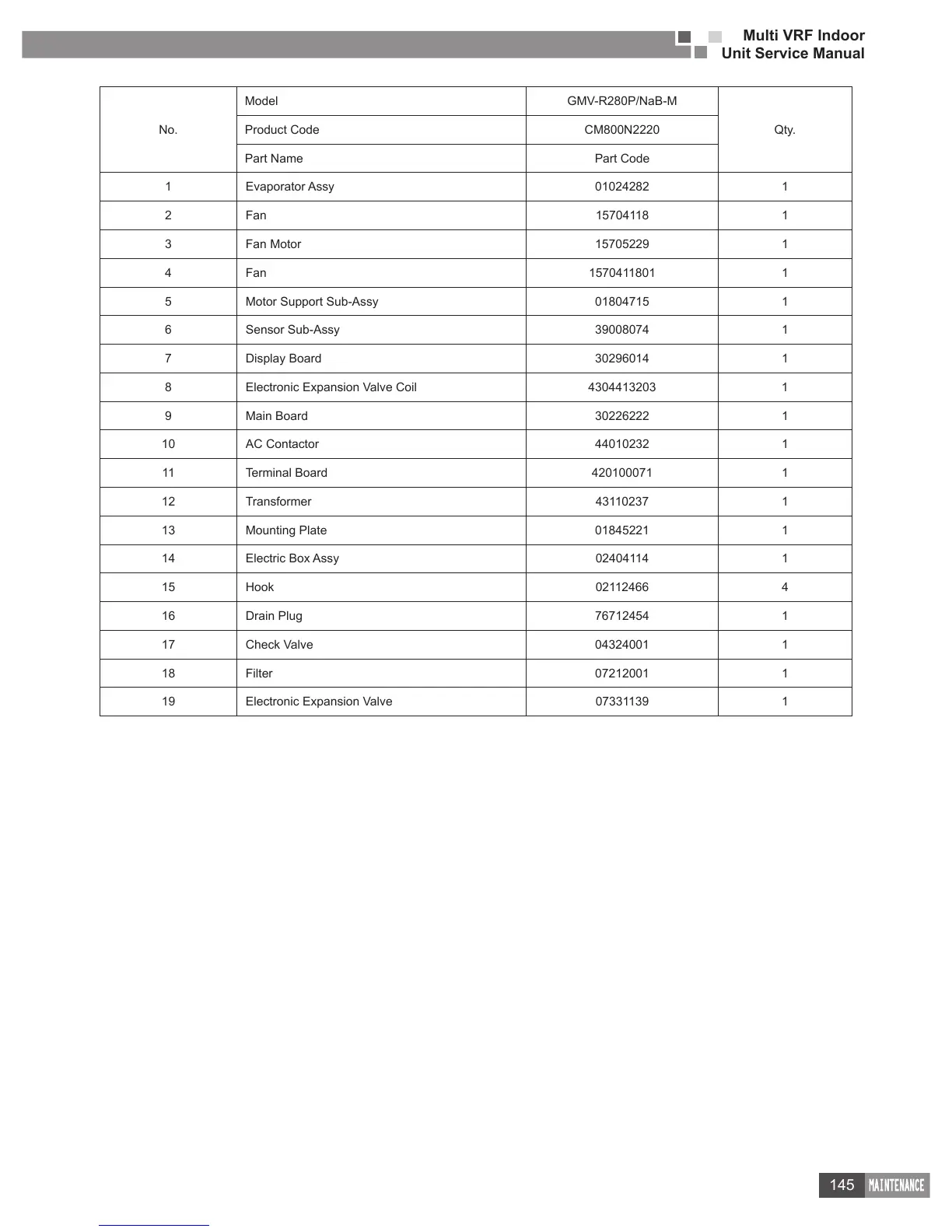

Multi VRF Indoor
Unit Service Manual
145
No.
Model GMV-R280P/NaB-M
Qty.Product Code CM800N2220
Part Name Part Code
1 Evaporator Assy 01024282 1
2 Fan 15704118 1
3 Fan Motor 15705229 1
4 Fan 1570411801 1
5 Motor Support Sub-Assy 01804715 1
6 Sensor Sub-Assy 39008074 1
7 Display Board 30296014 1
8 Electronic Expansion Valve Coil 4304413203 1
9 Main Board 30226222 1
10 AC Contactor 44010232 1
11 Terminal Board 420100071 1
12 Transformer 43110237 1
13 Mounting Plate 01845221 1
14 Electric Box Assy 02404114 1
15 Hook 02112466 4
16 Drain Plug 76712454 1
17 Check Valve 04324001 1
18 Filter 07212001 1
19 Electronic Expansion Valve 07331139 1
To Next Page
