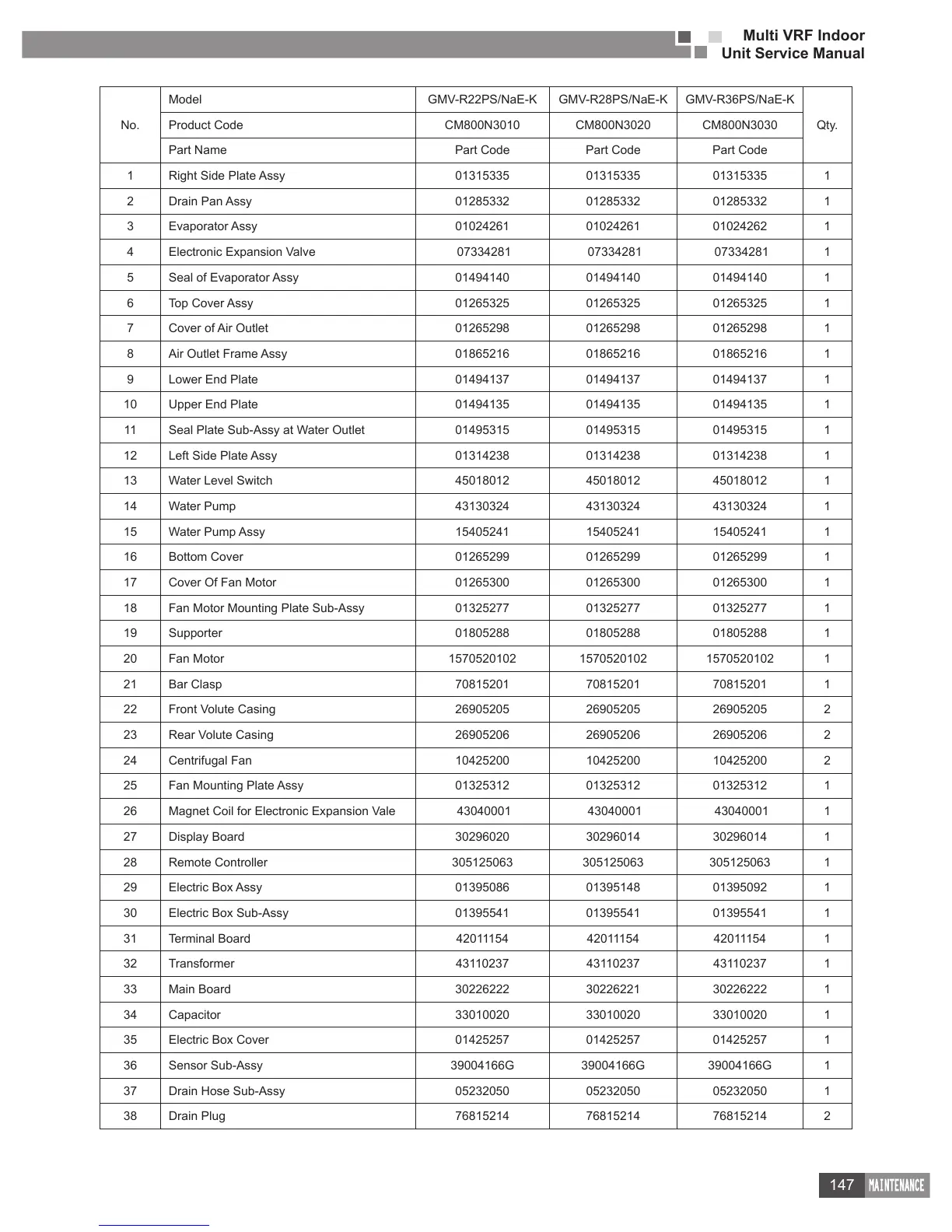

Multi VRF Indoor

Unit Service Manual

147

No.

Model GMV-R22PS/NaE-K GMV-R28PS/NaE-K GMV-R36PS/NaE-K

Qty.Product Code CM800N3010 CM800N3020 CM800N3030

Part Name Part Code Part Code Part Code

1 Right Side Plate Assy 01315335 01315335 01315335 1

2 Drain Pan Assy 01285332 01285332 01285332 1

3 Evaporator Assy 01024261 01024261 01024262 1

4 Electronic Expansion Valve 07334281 07334281 07334281 1

5 Seal of Evaporator Assy 01494140 01494140 01494140 1

6 Top Cover Assy 01265325 01265325 01265325 1

7 Cover of Air Outlet 01265298 01265298 01265298 1

8 Air Outlet Frame Assy 01865216 01865216 01865216 1

9 Lower End Plate 01494137 01494137 01494137 1

10 Upper End Plate 01494135 01494135 01494135 1

11 Seal Plate Sub-Assy at Water Outlet 01495315 01495315 01495315 1

12 Left Side Plate Assy 01314238 01314238 01314238 1

13 Water Level Switch 45018012 45018012 45018012 1

14 Water Pump 43130324 43130324 43130324 1

15 Water Pump Assy 15405241 15405241 15405241 1

16 Bottom Cover 01265299 01265299 01265299 1

17 Cover Of Fan Motor 01265300 01265300 01265300 1

18 Fan Motor Mounting Plate Sub-Assy 01325277 01325277 01325277 1

19 Supporter 01805288 01805288 01805288 1

20 Fan Motor 1570520102 1570520102 1570520102 1

21 Bar Clasp 70815201 70815201 70815201 1

22 Front Volute Casing 26905205 26905205 26905205 2

23 Rear Volute Casing 26905206 26905206 26905206 2

24 Centrifugal Fan 10425200 10425200 10425200 2

25 Fan Mounting Plate Assy 01325312 01325312 01325312 1

26 Magnet Coil for Electronic Expansion Vale 43040001 43040001 43040001 1

27 Display Board 30296020 30296014 30296014 1

28 Remote Controller 305125063 305125063 305125063 1

29 Electric Box Assy 01395086 01395148 01395092 1

30 Electric Box Sub-Assy 01395541 01395541 01395541 1

31 Terminal Board 42011154 42011154 42011154 1

32 Transformer 43110237 43110237 43110237 1

33 Main Board 30226222 30226221 30226222 1

34 Capacitor 33010020 33010020 33010020 1

35 Electric Box Cover 01425257 01425257 01425257 1

36 Sensor Sub-Assy 39004166G 39004166G 39004166G 1

37 Drain Hose Sub-Assy 05232050 05232050 05232050 1

38 Drain Plug 76815214 76815214 76815214 2
