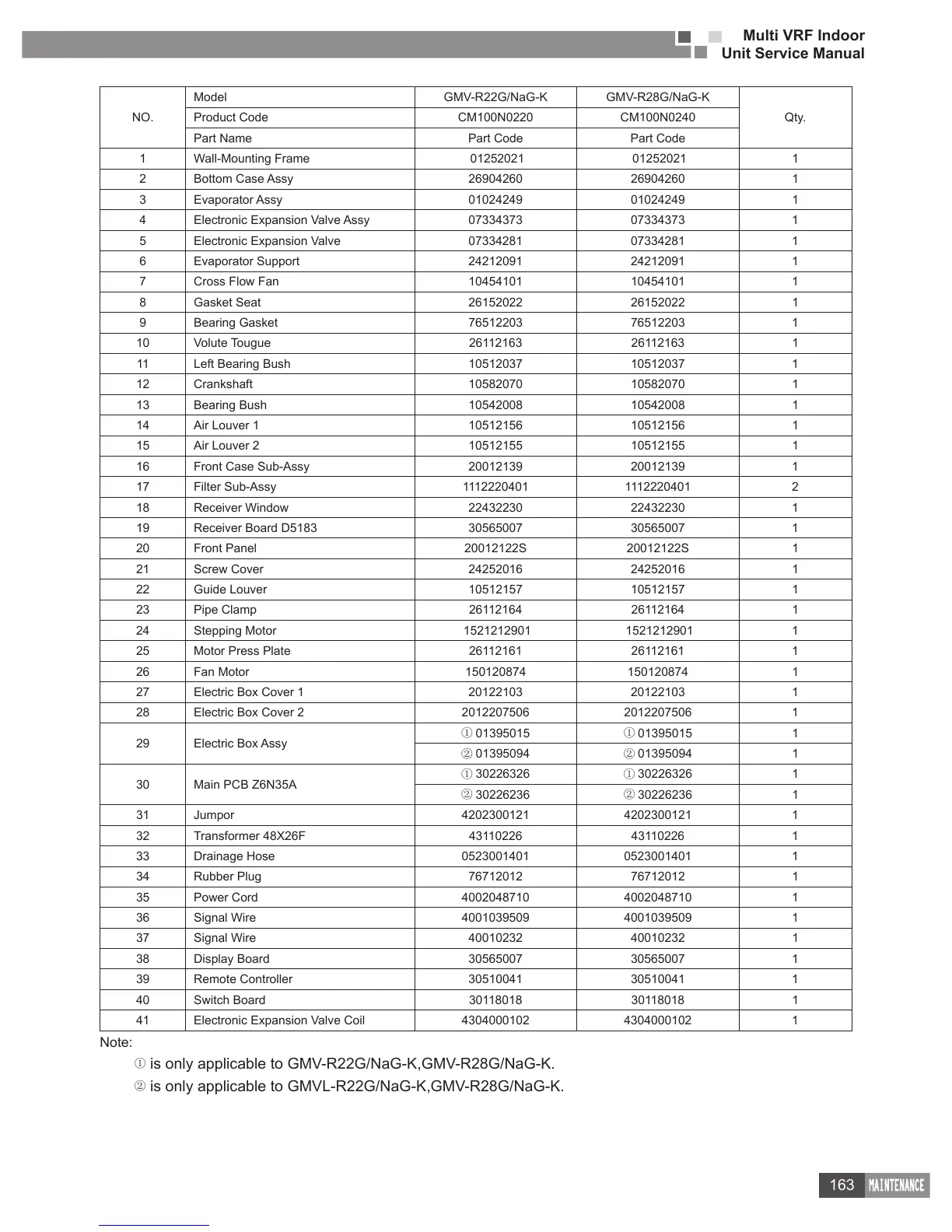

Multi VRF Indoor
Unit Service Manual
163
NO.
Model GMV-R22G/NaG-K GMV-R28G/NaG-K
Qty.Product Code CM100N0220 CM100N0240
Part Name Part Code Part Code
1 Wall-Mounting Frame 01252021 01252021 1
2 Bottom Case Assy 26904260 26904260 1
3 Evaporator Assy 01024249 01024249 1
4 Electronic Expansion Valve Assy 07334373 07334373 1
5 Electronic Expansion Valve 07334281 07334281 1
6 Evaporator Support 24212091 24212091 1
7 Cross Flow Fan 10454101 10454101 1
8 Gasket Seat 26152022 26152022 1
9 Bearing Gasket 76512203 76512203 1
10 Volute Tougue 26112163 26112163 1
11 Left Bearing Bush 10512037 10512037 1
12 Crankshaft 10582070 10582070 1
13 Bearing Bush 10542008 10542008 1
14 Air Louver 1 10512156 10512156 1
15 Air Louver 2 10512155 10512155 1
16 Front Case Sub-Assy 20012139 20012139 1
17 Filter Sub-Assy 1112220401 1112220401 2
18 Receiver Window 22432230 22432230 1
19 Receiver Board D5183 30565007 30565007 1
20 Front Panel 20012122S 20012122S 1
21 Screw Cover 24252016 24252016 1
22 Guide Louver 10512157 10512157 1
23 Pipe Clamp 26112164 26112164 1
24 Stepping Motor 1521212901 1521212901 1
25 Motor Press Plate 26112161 26112161 1
26 Fan Motor 150120874 150120874 1
27 Electric Box Cover 1 20122103 20122103 1
28 Electric Box Cover 2 2012207506 2012207506 1
29 Electric Box Assy
①
01395015
①
01395015 1
②
01395094
②
01395094 1
30 Main PCB Z6N35A
①
30226326
①
30226326 1
②
30226236
②
30226236 1
31 Jumpor 4202300121 4202300121 1
32 Transformer 48X26F 43110226 43110226 1
33 Drainage Hose 0523001401 0523001401 1
34 Rubber Plug 76712012 76712012 1
35 Power Cord 4002048710 4002048710 1
36 Signal Wire 4001039509 4001039509 1
37 Signal Wire 40010232 40010232 1
38 Display Board 30565007 30565007 1
39 Remote Controller 30510041 30510041 1
40 Switch Board 30118018 30118018 1
41 Electronic Expansion Valve Coil 4304000102 4304000102 1
Note:
①
is only applicable to GMV-R22G/NaG-K,GMV-R28G/NaG-K.
②
is only applicable to GMVL-R22G/NaG-K,GMV-R28G/NaG-K.
To Next Page
