Multi VRF Indoor
Unit Service Manual
171
No.

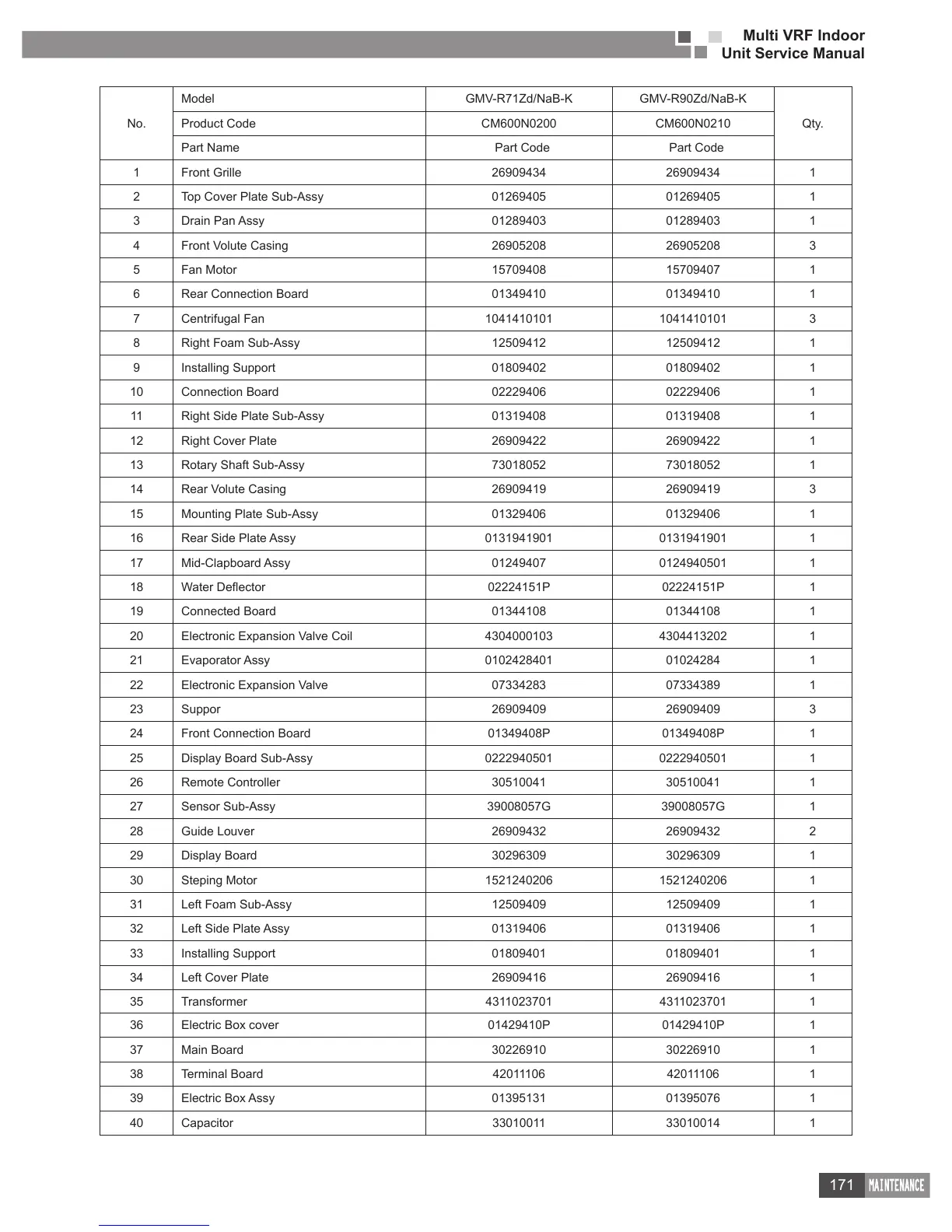

Model GMV-R71Zd/NaB-K GMV-R90Zd/NaB-K
Qty.Product Code CM600N0200 CM600N0210
Part Name Part Code Part Code
1 Front Grille 26909434 26909434 1
2 Top Cover Plate Sub-Assy 01269405 01269405 1
3 Drain Pan Assy 01289403 01289403 1
4 Front Volute Casing 26905208 26905208 3
5 Fan Motor 15709408 15709407 1
6 Rear Connection Board 01349410 01349410 1
7 Centrifugal Fan 1041410101 1041410101 3
8 Right Foam Sub-Assy 12509412 12509412 1
9 Installing Support 01809402 01809402 1
10 Connection Board 02229406 02229406 1
11 Right Side Plate Sub-Assy 01319408 01319408 1
12 Right Cover Plate 26909422 26909422 1
13 Rotary Shaft Sub-Assy 73018052 73018052 1
14 Rear Volute Casing 26909419 26909419 3
15 Mounting Plate Sub-Assy 01329406 01329406 1
16 Rear Side Plate Assy 0131941901 0131941901 1
17 Mid-Clapboard Assy 01249407 0124940501 1
18 02224151P 02224151P 1
19 Connected Board 01344108 01344108 1
20 Electronic Expansion Valve Coil 4304000103 4304413202 1
21 Evaporator Assy 0102428401 01024284 1
22 Electronic Expansion Valve 07334283 07334389 1
23 Suppor 26909409 26909409 3
24 Front Connection Board 01349408P 01349408P 1
25 Display Board Sub-Assy 0222940501 0222940501 1
26 Remote Controller 30510041 30510041 1
27 Sensor Sub-Assy 39008057G 39008057G 1
28 Guide Louver 26909432 26909432 2
29 Display Board 30296309 30296309 1
30 Steping Motor 1521240206 1521240206 1
31 Left Foam Sub-Assy 12509409 12509409 1
32 Left Side Plate Assy 01319406 01319406 1
33 Installing Support 01809401 01809401 1
34 Left Cover Plate 26909416 26909416 1
35 Transformer 4311023701 4311023701 1
36 Electric Box cover 01429410P 01429410P 1
37 Main Board 30226910 30226910 1
38 Terminal Board 42011106 42011106 1
39 Electric Box Assy 01395131 01395076 1
40 Capacitor 33010011 33010014 1
To Next Page
