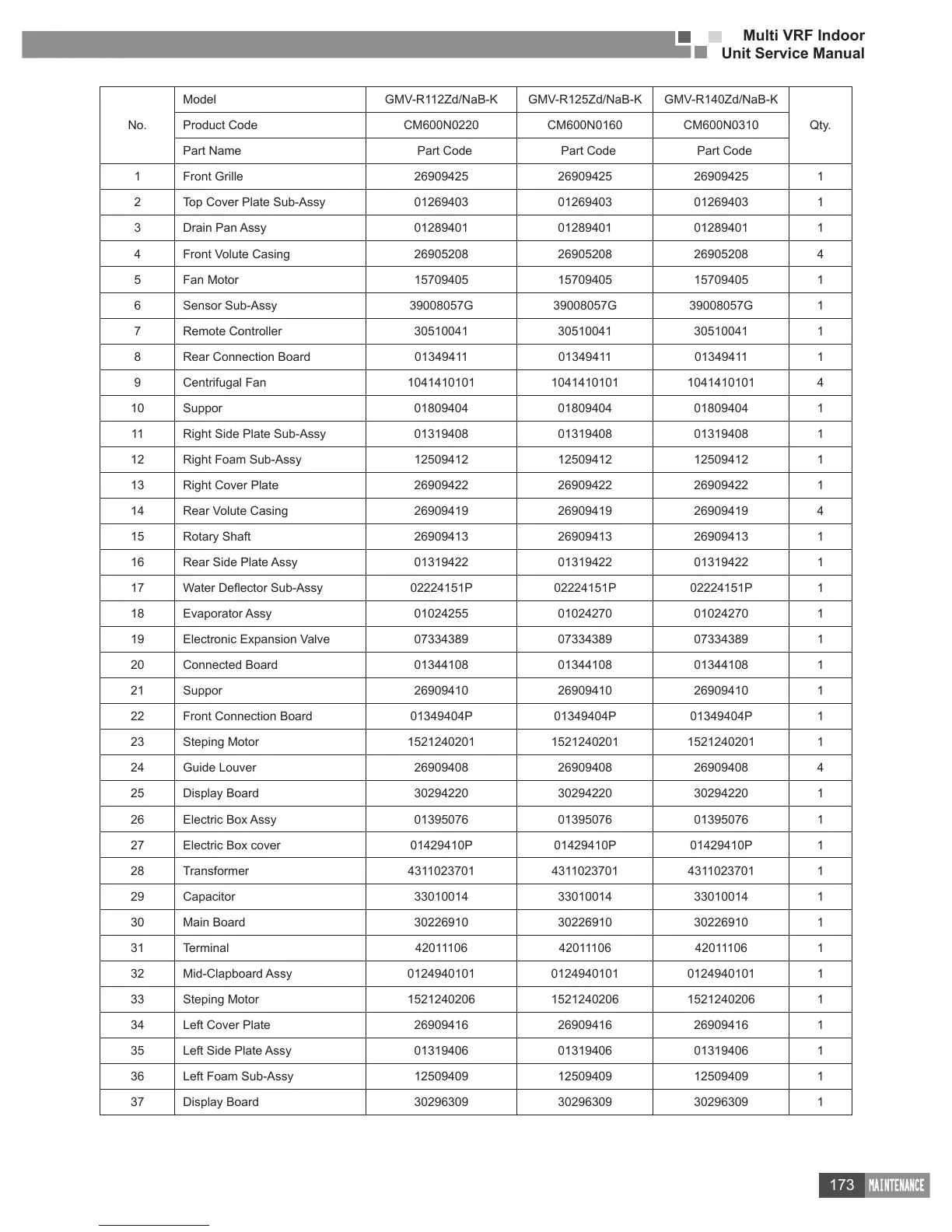

Multi VRF Indoor
Unit Service Manual
173
No.
Model GMV-R112Zd/NaB-K GMV-R125Zd/NaB-K GMV-R140Zd/NaB-K
Qty.Product Code CM600N0220 CM600N0160 CM600N0310
Part Name Part Code Part Code Part Code
1 Front Grille 26909425 26909425 26909425 1
2 Top Cover Plate Sub-Assy 01269403 01269403 01269403 1
3 Drain Pan Assy 01289401 01289401 01289401 1
4 Front Volute Casing 26905208 26905208 26905208 4
5 Fan Motor 15709405 15709405 15709405 1
6 Sensor Sub-Assy 39008057G 39008057G 39008057G 1
7 Remote Controller 30510041 30510041 30510041 1
8 Rear Connection Board 01349411 01349411 01349411 1
9 Centrifugal Fan 1041410101 1041410101 1041410101 4
10 Suppor 01809404 01809404 01809404 1
11 Right Side Plate Sub-Assy 01319408 01319408 01319408 1
12 Right Foam Sub-Assy 12509412 12509412 12509412 1
13 Right Cover Plate 26909422 26909422 26909422 1
14 Rear Volute Casing 26909419 26909419 26909419 4
15 Rotary Shaft 26909413 26909413 26909413 1
16 Rear Side Plate Assy 01319422 01319422 01319422 1
17 02224151P 02224151P 02224151P 1
18 Evaporator Assy 01024255 01024270 01024270 1
19 Electronic Expansion Valve 07334389 07334389 07334389 1
20 Connected Board 01344108 01344108 01344108 1
21 Suppor 26909410 26909410 26909410 1
22 Front Connection Board 01349404P 01349404P 01349404P 1
23 Steping Motor 1521240201 1521240201 1521240201 1
24 Guide Louver 26909408 26909408 26909408 4
25 Display Board 30294220 30294220 30294220 1
26 Electric Box Assy 01395076 01395076 01395076 1
27 Electric Box cover 01429410P 01429410P 01429410P 1
28 Transformer 4311023701 4311023701 4311023701 1
29 Capacitor 33010014 33010014 33010014 1
30 Main Board 30226910 30226910 30226910 1
31 Terminal 42011106 42011106 42011106 1
32 Mid-Clapboard Assy 0124940101 0124940101 0124940101 1
33 Steping Motor 1521240206 1521240206 1521240206 1
34 Left Cover Plate 26909416 26909416 26909416 1
35 Left Side Plate Assy 01319406 01319406 01319406 1
36 Left Foam Sub-Assy 12509409 12509409 12509409 1
37 Display Board 30296309 30296309 30296309 1
To Next Page
