184
Multi VRF Indoor
Unit Service Manual
NO.

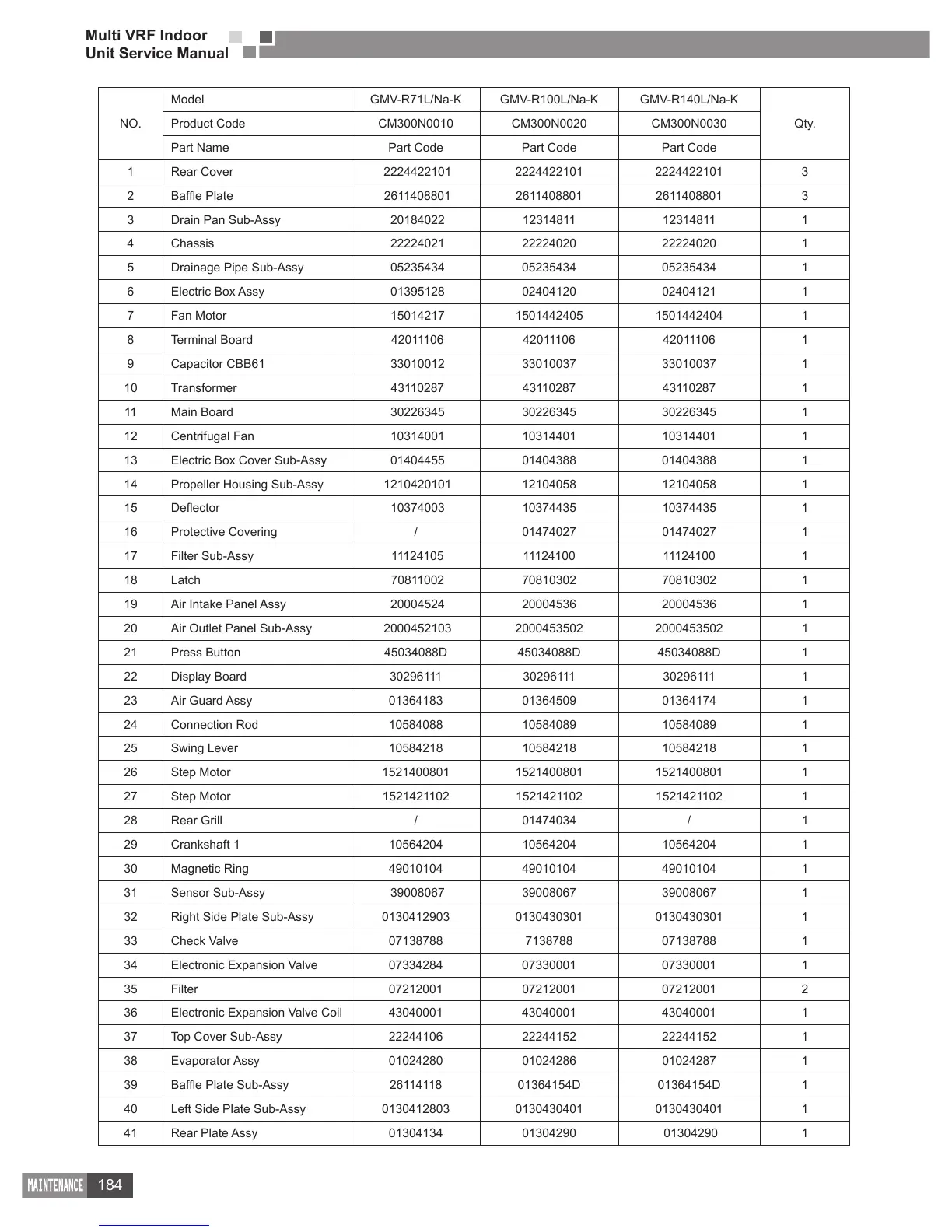

Model GMV-R71L/Na-K GMV-R100L/Na-K GMV-R140L/Na-K
Qty.Product Code CM300N0010 CM300N0020 CM300N0030
Part Name Part Code Part Code Part Code
1 Rear Cover 2224422101 2224422101 2224422101 3
2 2611408801 2611408801 2611408801 3
3 Drain Pan Sub-Assy 20184022 12314811 12314811 1
4 Chassis 22224021 22224020 22224020 1
5 Drainage Pipe Sub-Assy 05235434 05235434 05235434 1
6 Electric Box Assy 01395128 02404120 02404121 1
7 Fan Motor 15014217 1501442405 1501442404 1
8 Terminal Board 42011106 42011106 42011106 1
9 Capacitor CBB61 33010012 33010037 33010037 1
10 Transformer 43110287 43110287 43110287 1
11 Main Board 30226345 30226345 30226345 1
12 Centrifugal Fan 10314001 10314401 10314401 1
13 Electric Box Cover Sub-Assy 01404455 01404388 01404388 1
14 Propeller Housing Sub-Assy 1210420101 12104058 12104058 1
15 10374003 10374435 10374435 1
16 Protective Covering / 01474027 01474027 1
17 Filter Sub-Assy 11124105 11124100 11124100 1
18 Latch 70811002 70810302 70810302 1
19 Air Intake Panel Assy 20004524 20004536 20004536 1
20 Air Outlet Panel Sub-Assy 2000452103 2000453502 2000453502 1
21 Press Button 45034088D 45034088D 45034088D 1
22 Display Board 30296111 30296111 30296111 1
23 Air Guard Assy 01364183 01364509 01364174 1
24 Connection Rod 10584088 10584089 10584089 1
25 Swing Lever 10584218 10584218 10584218 1
26 Step Motor 1521400801 1521400801 1521400801 1
27 Step Motor 1521421102 1521421102 1521421102 1
28 Rear Grill / 01474034 / 1
29 Crankshaft 1 10564204 10564204 10564204 1
30 Magnetic Ring 49010104 49010104 49010104 1
31 Sensor Sub-Assy 39008067 39008067 39008067 1
32 Right Side Plate Sub-Assy 0130412903 0130430301 0130430301 1
33 Check Valve 07138788 7138788 07138788 1
34 Electronic Expansion Valve 07334284 07330001 07330001 1
35 Filter 07212001 07212001 07212001 2
36 Electronic Expansion Valve Coil 43040001 43040001 43040001 1
37 Top Cover Sub-Assy 22244106 22244152 22244152 1
38 Evaporator Assy 01024280 01024286 01024287 1
39 26114118 01364154D 01364154D 1
40 Left Side Plate Sub-Assy 0130412803 0130430401 0130430401 1
41 Rear Plate Assy 01304134 01304290 01304290 1
To Next Page
