Gree GMV-R series

Multi VRF Indoor
Unit Service Manual
63

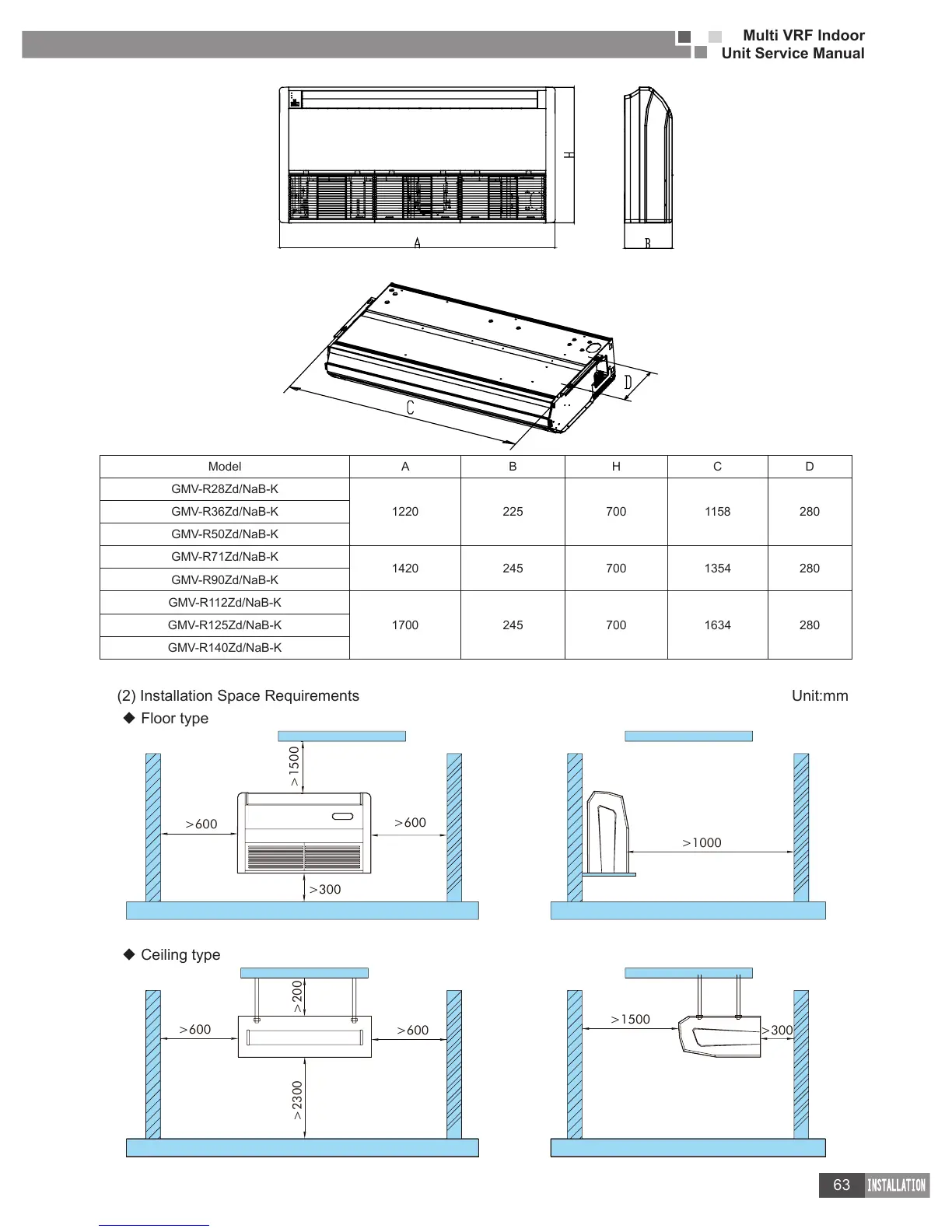

Model A B H C D
GMV-R28Zd/NaB-K
1220 225 700 1158 280GMV-R36Zd/NaB-K
GMV-R50Zd/NaB-K
GMV-R71Zd/NaB-K
1420 245 700 1354 280
GMV-R90Zd/NaB-K
GMV-R112Zd/NaB-K
1700 245 700 1634 280GMV-R125Zd/NaB-K
GMV-R140Zd/NaB-K
(2) Installation Space Requirements Unit:mm
◆
Floor type
>600
>1000
>300
>600
>1500
◆
Ceiling type
>300>600
>600
>1500
>200>2300
