Air flow direction
As described above, the indoor unit is able to blow out air into various direc-
tions. After energizing the system the electric motor moves the air flap counter-
clockwise in zero position to close the air outlet.
Switching on the system and no flap move or swing is adjusted, the motor will
move the air outlet flap clockwise to L.

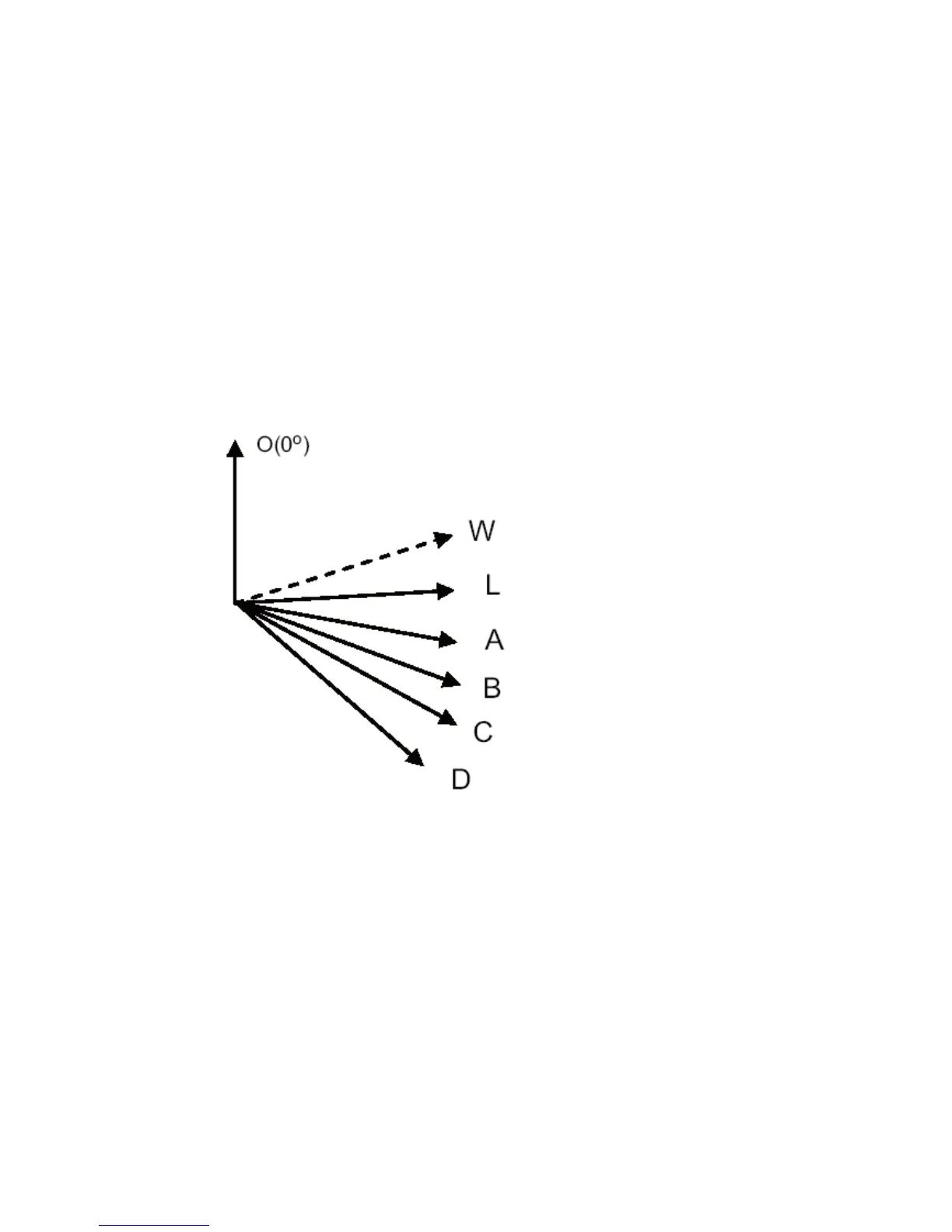

If the system is energized and a swing was preselected, the flap will move
matching the preset between D and L position. There are 7 possible adjust-
ments to be chosen (look ahead) in addition to L, A, B, C, D and 0.
De-energising the system the flap will move to zero position.
Please note: If the position is set by the remote control unit between I and B, A
and C or B and D, the air outlet flap anyhow goes between the positions L and
D.
