Super Free Match
Service Manual
MAINTENANCE
N
149
6. Remove the
motor away.
a) Separate the motor
away from the motor
support.
b) Remove the fan
blade
c) Take the motor out
from the return air
frame
Note: the motor support
shall be removed in
advance and then changed
to the unit.
7.Replace with a
new motor
Assemble the fan as the
reverse disassembly order
and then take a power-on
test.

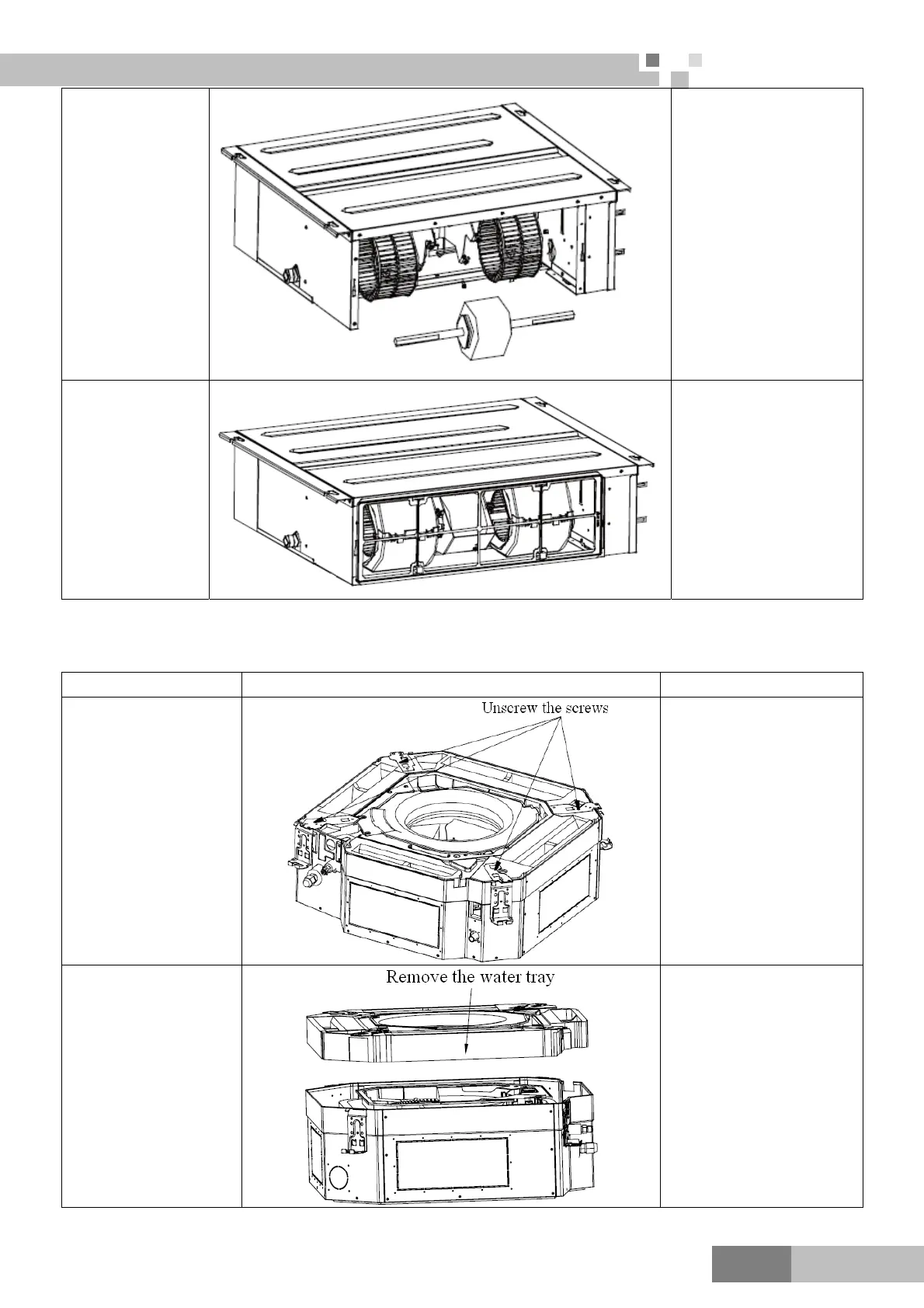

6.2.3 Four-way cassette type
Removal and Assembly of Fan Motor
Remark: Prior to the assembly of the motor, make sure the power supply is cut off.
Steps Illustrations Operation Instructions
1.Unscrew the fixed
screws of the water tray
Unscrew the fixed
screws of the water tray
2.Remove the water tray Remove the water tray
