G36 Oxygen Analyzer
Version 2.11 - March 2022 43
12 Appendix
12.1 Setting of Analog Inputs
The analog inputs are not in use by default. If however, the analyzer has been specifically
ordered with preset analog inputs they are set accordingly. See the specific arrangement
in the Testing & Configuration Sheet.
The two analog input signals of the G36 can be configured for most input requirements
such as pressure, temperature, flow and opacity. The analyzer can be optional arranged
with one or both analog inputs. For the analyzer with pressure compensation module,
Analog Input 1 is per default setup for pressure transmitter.
Both input signals can also be configured to be displayed on the Main Menu. See Figure
12-1 for details of the Main Menu when both analog inputs are in use.
1
3
2
4

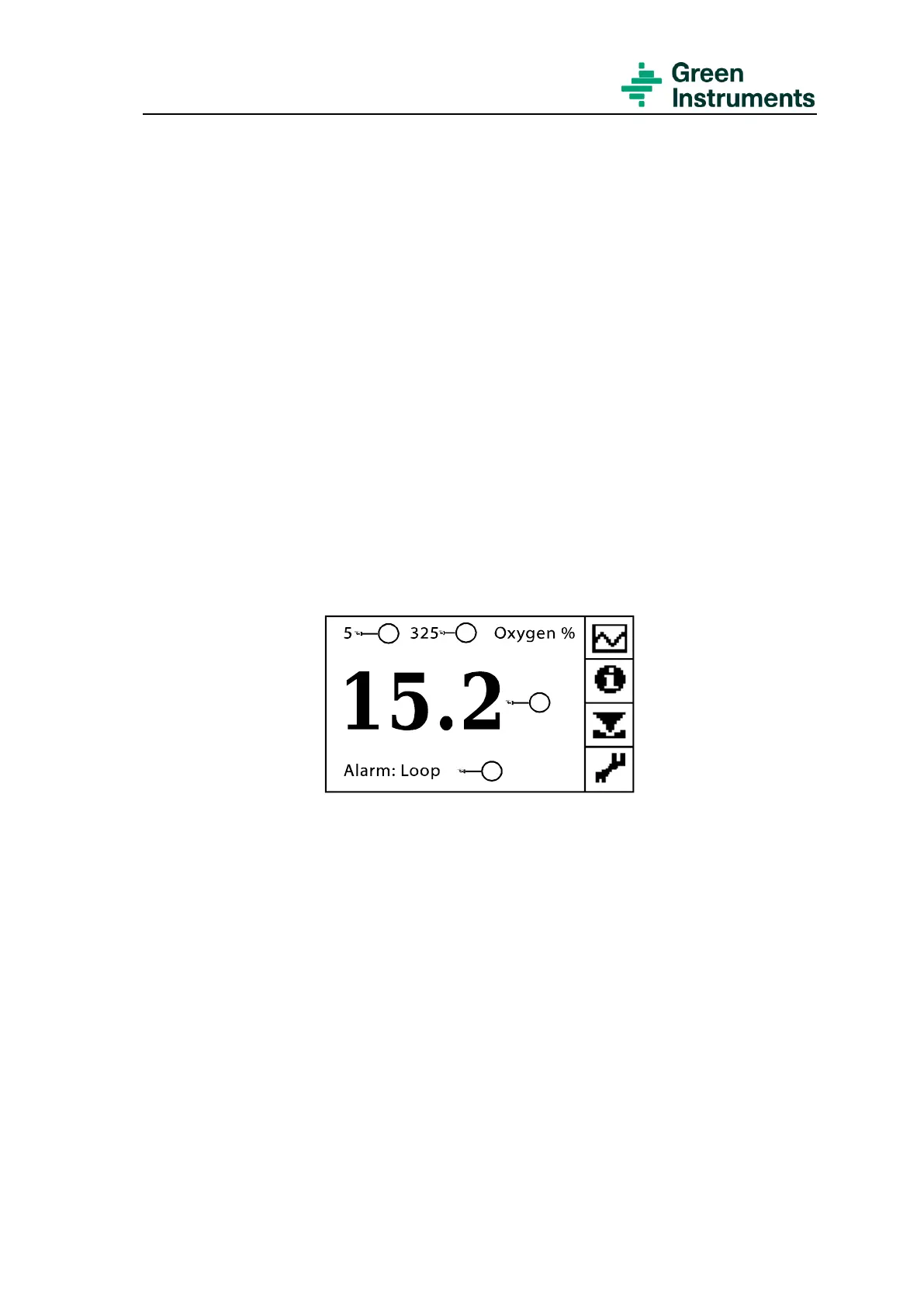

Figure 12-1: Main Menu if both analog inputs are agreed to be used
• Position 1: Display of Analog input 1 (e.g. pressure in kPa).
• Position 2: Display of Analog input 2 (e.g. gas temperature in
o
C).
• Position 3: Current oxygen value in percent.
• Position 4: Display of the current alarm (e.g. Alarm of open analog output loop) –
if there is no alarm, there will be no display here.
Freeze output
No setting is required for this parameter. The default setting is 15 seconds.
Analog Input Scale
The analog input signals should be 4-20 mA.
