Greenlee Textron / Subsidiary of Textron Inc.
15
4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
555 Electric Bender

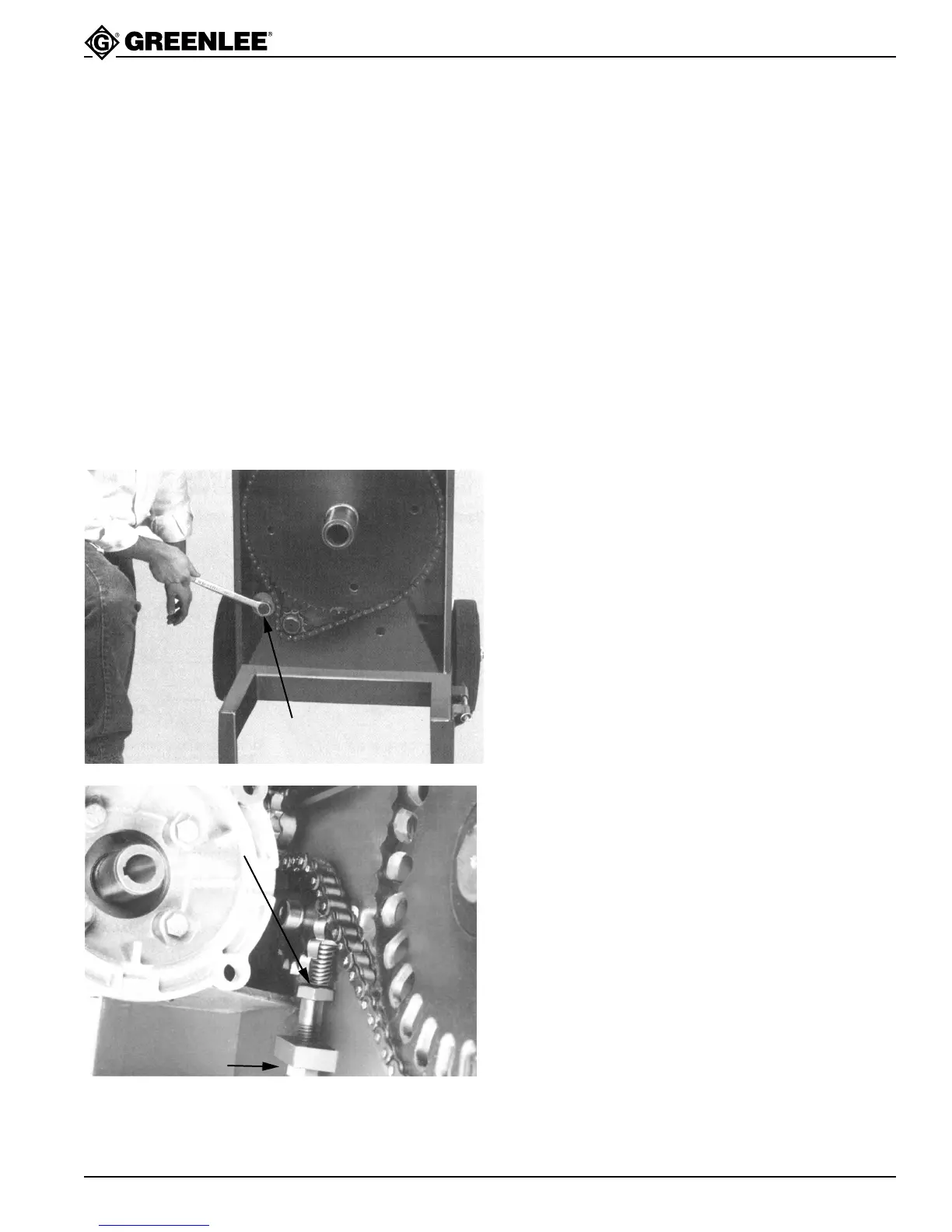

Adjusting Chains
The 555 bender has two chains in the power train; one is
located in the rear and one in the front. New chains will
stretch slightly; therefore, the front chain should be
adjusted after 10 to 20 bends have been made in 1-1/2"
or 2" Rigid.
To adjust front chain: loosen chain cam bolt, rotate
tightening cam clockwise until all slack is out of the
chain, and retighten cam bolt.
To access front chain: remove shoe, roller support and
front metal panel. Make sure bender is unplugged while
adjusting. Replace front guard before using.
The rear chain has a spring-loaded tensioner that does
not require any adjustment. However, if the rear chain is
removed or serviced, the rear chain tensioner should be
readjusted.
To adjust tensioner: loosen jam nut, rotate adjusting
screw until the hex head contacts the idler bracket pin,
and retighten jam nut.
Jam nut
Adjust until
hex head
contacts pin.
Front chain
adjustment cam
