555 Electric Bender

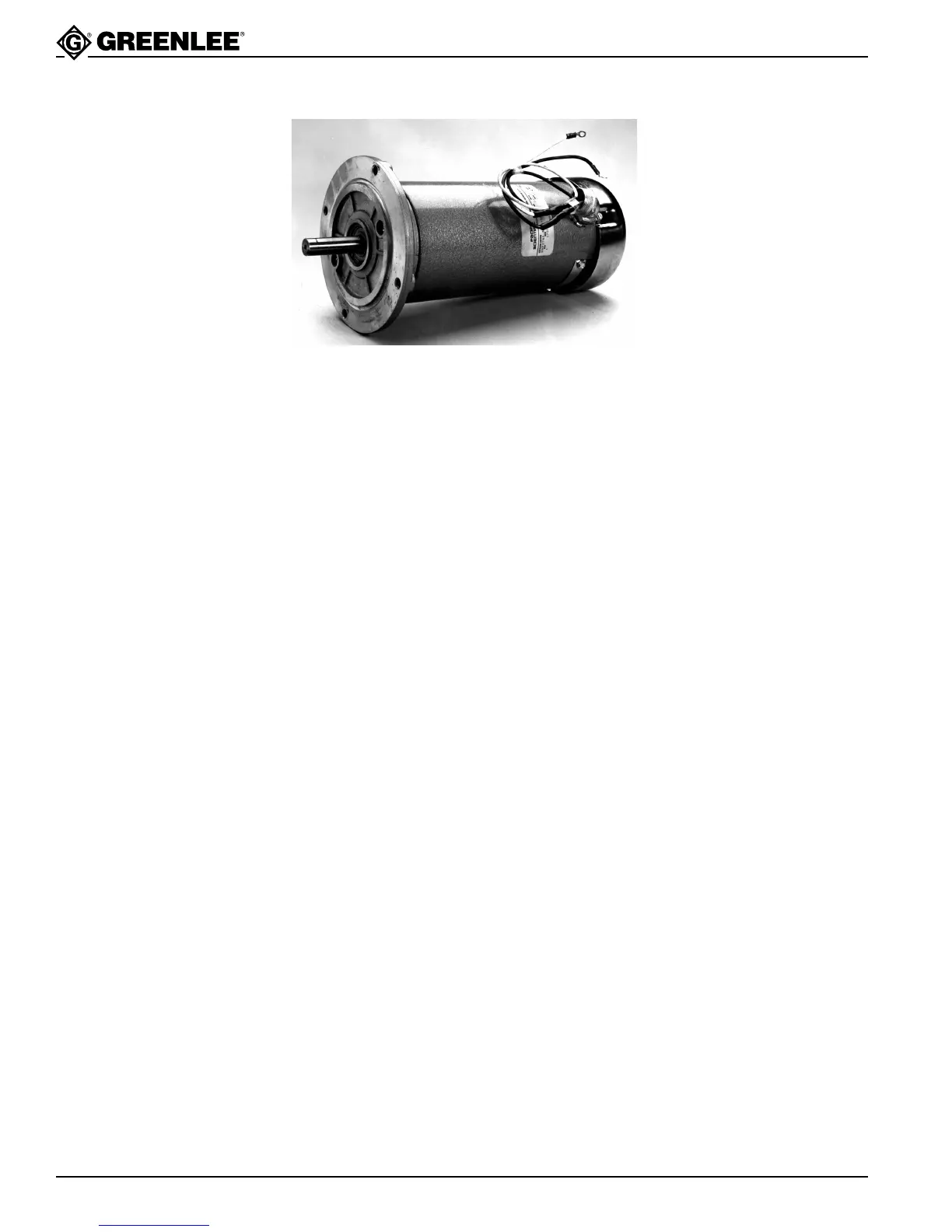

Parts List — Motor (115V and 230V)
Part No. Description Qty.
918 6417.8 Motor - 115 Volt (standard) .................................................... 1
918 6418.6 Bell, front end ......................................................................... 1
918 6419.4 Bell, rear end .......................................................................... 1
918 6420.8 Brush....................................................................................... 2
918 6421.6 Bearing kit ............................................................................... 2
918 6422.4 Thrust washer ......................................................................... 1
918 6423.2 Terminal cover ........................................................................ 1
918 6424.0 Retaining ring.......................................................................... 1
918 6425.9 Armature, 115V....................................................................... 1
918 6426.7 Tie bolt, 115V.......................................................................... 2
918 6427.5 Shell & magnet assembly, 115V ............................................ 1
918 6428.3 End bell nut ............................................................................. 2
918 6429.1 Terminal cover screw ............................................................. 2
918 6430.5 Brush cover............................................................................. 2
918 6431.3 Cover screw ............................................................................ 2
918 6432.1 Fan .......................................................................................... 1
918 5876.3 90° Connector......................................................................... 1
Part No. Description Qty.
918 5828.3 Motor - 230 Volt D.C. (optional) ............................................. 1
918 5775.9 Motor - 115 Volt (standard) .................................................... 1
918 6251.5 Bell, front end ......................................................................... 1
918 6252.3 Bell, rear end .......................................................................... 1
918 6253.1 Brush/plate assembly ............................................................. 2
918 6250.7 Bearing 203 double-shielded.................................................. 2
918 6258.2 Thrust washer - wave spring .................................................. 2
918 6255.8 Terminal cover ........................................................................ 1
918 6259.0 Gasket - terminal cover .......................................................... 1
918 6248.5 Armature, 115V....................................................................... 1
918 6249.3 Armature, 230V....................................................................... 1
918 3613.4 Tie bolt, #10-32 x 3-1/4 large, front ........................................ 4
918 3614.2 Tie bolt, #10-32 x 1-3/4 large, rear......................................... 4
918 6247.7 Frame - 48 .............................................................................. 1
918 0750.9 Lockwasher - brush #10-32 inter. tooth ................................. 4
918 2626.0 Cover screw - brush #10-32 x 1/2 round head machine........ 4
918 6256.6 Brush cover............................................................................. 2
918 6257.4 Brush cover insulation ............................................................ 2
