Greenlee 555 - Electrical System Views; Rear View and Control Box Components

Greenlee Textron / Subsidiary of Textron Inc.
30
4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070

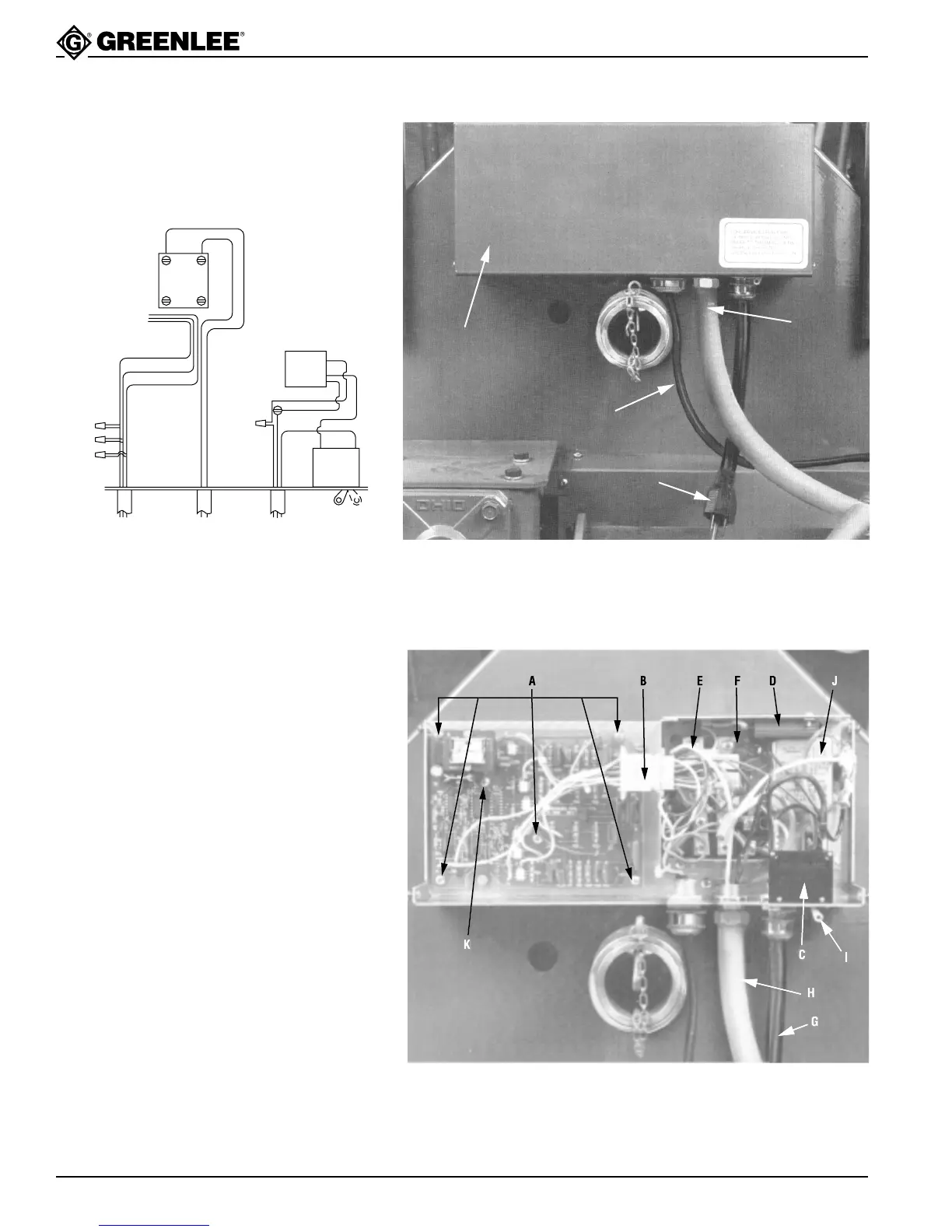

555 Electric Bender
Rear View
A. Control Box
B. Pendant Switch
C. Power Cord
D. Motor Conduit
Control Box
(rear view with plate removed)
A. Six screws for board removal
B. 15-pin connector going to the power module
C. Circuit breaker 918 6386.4
D. Dynamic brake resistor
E. Motor lead (white)
F. Motor lead (black)
G. Power cord
H. Motor conduit
I. Circuit breaker reset lever
J. Power module 503 4140.5
K. Control module 503 5411.6
WHITE
TO 15 PIN
CONNECTOR
AK1
KM+ AM-
SKBT 40/08
WHITE
BLACK
AK2
BLACK
RED
WIRE
NUT
WHITE
GREEN
BLACK
CIRCUIT
BREAKER
MOTOR POWER
CORD
PENDANT
SWITCH
WIRE
NUTS
(3)
POWER
MODULE
FILTER
WHITE
BLACK
A
B
C
D
